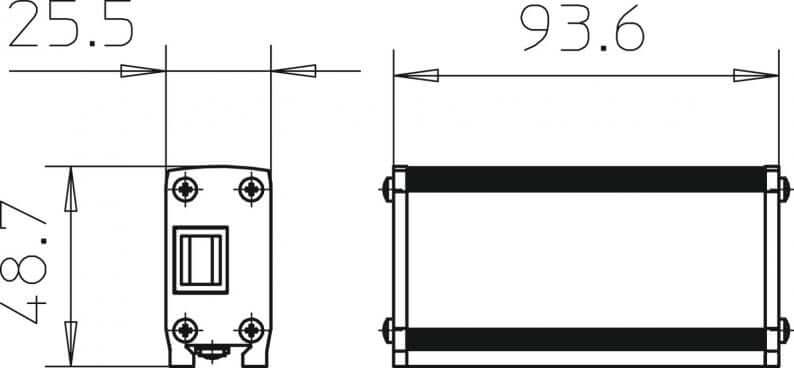

OBO surge protection for high-speed networks up to 1 Gbit (Class ND-CAT6/E-B)
| Type of manufacturer: | ND-CAT6/E-B |
|---|---|
| Manufacturer Art. No.: | 5081804 |
| Art. Nr.: | 811 |
| Pieces per package unit: |
|
Prices are only visible to business customers upon successful registration.
- % Deadline Deals
Product number:
811
Description
OBO surge protection for high-speed networks up to 1 Gbit (Class ND-CAT6/E-B)
Manufacturer’s reference: 5081804 / ND-CAT6/E-B
Data line protection device for high-speed networks. Earthed via top-hat rail or connection cable. Supports Power over Ethernet+ up to 1A. Plug-in design. Includes top-hat rail mounting kit and earthing cable.
Product features
- Rated voltage: 65 V
- Number of poles: 8
- Design: Basic protection, 8 conductors + shield
- Channel performance ANSI/EA: CAT 6
- Channel performance ISO/IEC: Class E
- Insertion loss: ≤3
- Earthing via connecting cable/top-hat rail
- Explosion-proof version: no
- Telecommunications contact: no
- Total surge current (8/20): 10 kA
- Total surge discharge current (10/350): 2.5 kA
- Maximum continuous AC voltage: 46 V
- Maximum continuous DC voltage: 65 V
- Category: Type 1 / D1
- Cable type for surge protection devices: CAT data cable
- LPZ: 0→1
- Mounting type: Connector/cable adapter
- Test standard: IEC 61643-21
- Shield connection: yes
- Shielding: direct
- Protection rating: IP20
- Insulation voltage (core to core): <1100 V
- Protection level conductor–earth: <900 V
- SPD in accordance with IEC 61643-21: Class I / D1
- Connector system: RJ45 8(8)
- Surge current withstand capability (conductor to conductor): C2: 3 kV / 1.5 kA (8/20 µs)
- Surge current withstand voltage conductor–earth: C2: 3 kV / 1.5 kA (8/20 µs)
- Operating temperature range: -40 – 80 °C
-
