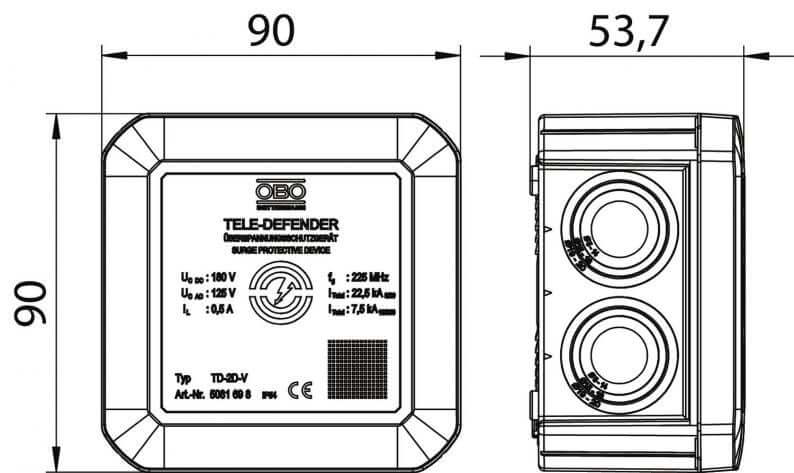

OBO TD-2D-V combined protection unit for VDSL systems
| Type of manufacturer: | TD-2D-V |
|---|---|
| Manufacturer Art. No.: | 5081698 |
| Art. Nr.: | 3904 |
| Pieces per package unit: |
|
Prices are only visible to business customers upon successful registration.
Product number:
3904
Description
OBO TD-2D-V Combination Protection Unit for VDSL systems
Manufacturer’s reference: 5081698 / TD-2D-V
Data line protection device, Type 1+2+3 / D1+C2+C1, for the protection of telecommunications equipment. With plug-in terminals. Suitable for DSL systems, (IP connections), ISDN or analogue telecommunications. Surface-mounted.
Product features
- Rated voltage: 180 V
- Surge arrester monitoring: no
- Flexible conductor cross-section: 0.14 – 1 mm
- Multi-strand connection cross-section: 0.14 – 1 mm
- Rigid connection cross-section: 0.08 – 1.5 mm
- Number of poles: 2
- Insertion loss: ≤3
- Explosion-proof version: no
- Telecommunications contact: no
- Total surge current (8/20): 22.5 kA
- Total surge discharge current (10/350): D1: 7.5 kA
- Cut-off frequency: 225 MHz
- Maximum continuous AC voltage: 125 V
- Maximum DC continuous voltage: 180 V
- Pulse current (10/350): 2.5 kA
- Insulation resistance: >10 MΩ
- Capacitance (core-to-core): <10 pF
- Capacitance (core-to-earth): <20 pF
- Category: Type 1+2+3 / D1+C2+C1
- Cable type for surge protection devices: Telecommunications cable
- LPZ: 0→3
- Installation type: Surface-mounted
- Rated AC current: 0.350 A
- Rated DC current: 0.5 A
- Test standard: IEC 61643-21
- Shield connection: yes
- Shielding: direct
- Protection rating: IP54
- Insulation voltage (core to core): <350 V
- Protection level: conductor to earth: <600 V
- Signalling on the device: none
- SPD in accordance with IEC 61643-21: Class I+II+III / D1+C2+C1
- Connection system: Terminal
- Surge current withstand capability (conductor to conductor): C2: 15 kV / 7.5 kA (8/20 µs)
- Surge current withstand capacity conductor–earth: C2: 15 kV / 7.5 kA (8/20 µs)
- Operating temperature range: -40 – 80 °C
-
