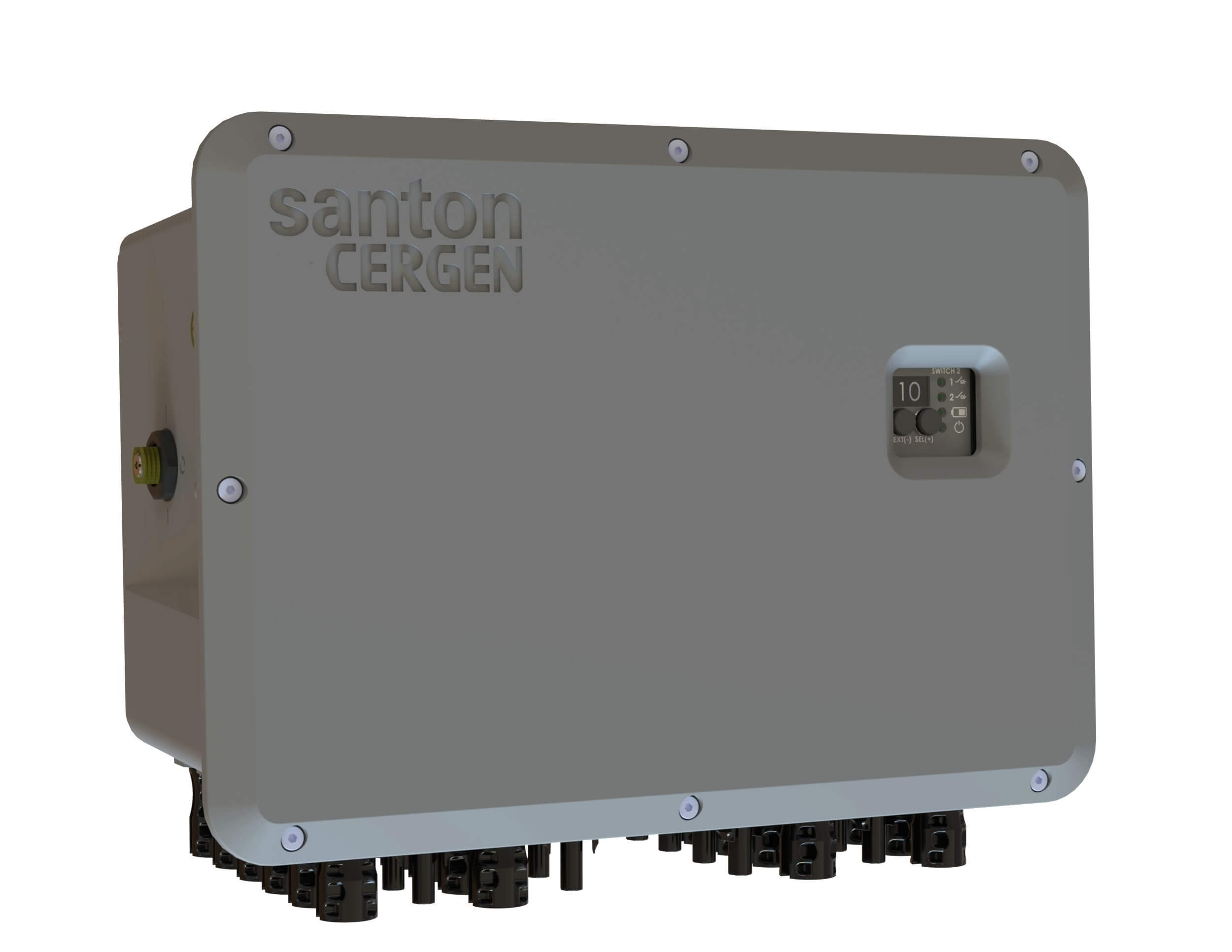

Santon by Cergen FFS fire protection switch for 10 MPPT
| Manufacturer Art. No.: | FFS20-C10M-JJP |
|---|---|
| Art. Nr.: | 16267 |
| Pieces per package unit: |
|
| Accessory type: | Firefighter breaker |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16267
Description
Safe disconnection of DC cables using the FFS fire protection switch from Santon by Cergen
The Fire Service Protection Switch (FFS) from Santon by Cergen automatically disconnects all connected DC cables in the Photovoltaic system in the event of a fire or a mains power failure. This ensures that the cable between the FFS and the Inverter is de-energised, allowing fire service personnel to extinguish the fire safely in the affected area.
Product benefits
- Complies with the IEC 60947-3:2021 standard
- Prepared for IEC 60947-3:2025
- Compact, weather-resistant design with IP66 protection rating
- Motorised as standard; can optionally be operated manually with an Allen key
- Automatic DC cut-off in the event of a mains power failure, protected by a capacitor bank
- Automatic restart when mains voltage is restored
- Optional feedback and remote monitoring/control via MODBUS RS485
Product features
- Manufacturer’s designation: FFS20-C10M-JJP
- FFS fire protection switch for 10 strings/MPPT
- Rated voltage: 1100 V DC / 1500 V DC
- Rated current PV1: 50 A; PV2: 50 A (at 1100 V) or 25 A (at 1500 V), figures per circuit (positive and negative terminals)
- Supply voltage: 230 V AC ±10 % (voltage range 100–240 V AC), 50/60 Hz
- MC4 connectors, factory-wired with 10 mm² (AWG 8) cable
- Ambient temperature: -30 °C to +50 °C
- Dimensions: 310 x 240 x 175.5 mm (L x W x H)
-
