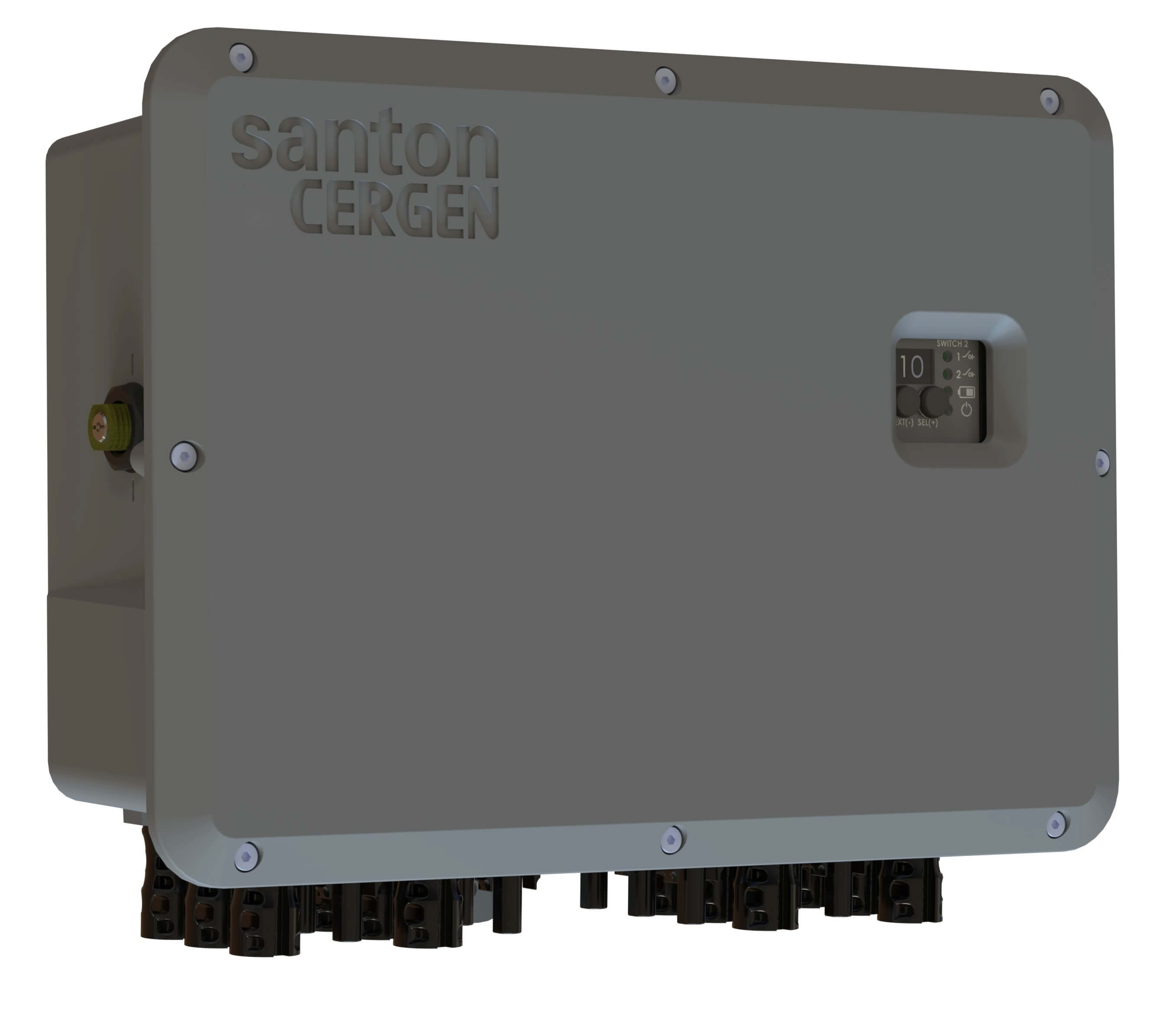

Santon by Cergen FFS fire protection switch for 6 MPPT
| Manufacturer Art. No.: | FFS20-B6M-LP |
|---|---|
| Art. Nr.: | 16265 |
| Pieces per package unit: |
|
| Accessory type: | Firefighter breaker |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16265
Description
Safe disconnection of DC cables using the FFS fire protection switch from Santon by Cergen
The FFS fire protection switch from Santon by Cergen automatically disconnects all connected DC cables in the Photovoltaic system in the event of a fire or a power cut. This ensures that the cable between the FFS and the Inverter is de-energised, allowing fire crews to extinguish the fire safely in the affected area.
Advantages
- Complies with the IEC 60947-3:2021 standard
- Prepared for IEC 60947-3:2025
- Compact, weather-resistant design with IP66 protection rating
- Motorised as standard; can optionally be operated manually using an Allen key
- Automatic DC cut-off in the event of a mains failure, protected by a capacitor bank
- Automatic restart when mains voltage is restored
- Optional feedback and remote monitoring/control via MODBUS RS485
Product features
- Manufacturer’s designation: FFS20-B6M-LP
- FFS fire protection switch for 6 strings/MPPT
- Rated voltage: 1100 V DC / 1500 V DC
- Rated current PV1: 50 A; PV2: 50 A (at 1100 V) or 25 A (at 1500 V), specifications per circuit (positive and negative terminals)
- Supply voltage: 230 V AC ±10 % (voltage range 100–240 V AC), 50/60 Hz
- MC4 connectors, factory-wired with 10 mm² (AWG 8) cable
- Ambient temperature: –30 °C to +50 °C
- Dimensions: 310 x 240 x 115.5 mm (L x W x H)
-
