SMA Storage M 16.4

datamints-memodo.product-listing.placeholder-alt

Manufacturer Art. No.:	STM-BM-4.09-10, STM-BMS-10
Art. Nr.:	15906
Net capacity:	16.37 kWh
Battery type:	High volt lithium
Cycles:	8.000
Warranty:	10 Jahre
Solar battery type:	High voltage battery

Prices are only visible to business customers upon successful registration.

Product number: 15906

Prices are only visible to business customers upon successful registration.

Product number: 15906

Recommended accessories
- SMA Storage M Battery Module

  Art. Nr.: 15899

  SMA

  Details

  { "id": "7f0067d87bab598d84662e1f267d70a6", "item_brand": "", "item_name": "SMA Storage M Battery Module", "item_id": "15899", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7f0067d87bab598d84662e1f267d70a6" } }
- SMA Sunny Tripower Hybrid Backup 4P Backup Box

  Art. Nr.: 15851

  SMA

  Details

  { "id": "dff5489c22ca51f7a1b1ddc9b54f416e", "item_brand": "", "item_name": "SMA Sunny Tripower Hybrid Backup 4P Backup Box", "item_id": "15851", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "dff5489c22ca51f7a1b1ddc9b54f416e" } }
- SMA Sunny Tripower Hybrid Backup 4P DIN rail solution

  Art. Nr.: 15852

  SMA

  Details

  { "id": "856326df183b59a58849a3b45f5a8112", "item_brand": "", "item_name": "SMA Sunny Tripower Hybrid Backup 4P DIN rail solution", "item_id": "15852", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "856326df183b59a58849a3b45f5a8112" } }
- SMA Sunny Tripower Hybrid Backup 3P DIN rail solution

  Art. Nr.: 15842

  SMA

  { "id": "0faad48876075273b167d615ad177ab2", "item_brand": "", "item_name": "SMA Sunny Tripower Hybrid Backup 3P DIN rail solution", "item_id": "15842", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0faad48876075273b167d615ad177ab2" } }

SMA Storage M

The SMA Storage M is a modular high-voltage storage system for domestic users and small businesses, and forms the heart of the SMA energy system. Based on long-life LFP technology, it is available in ten capacity levels ranging from 12.3 kWh to 49.1 kWh – comprising a basic kit with a BMS unit and three battery modules, which can be flexibly expanded with additional individual modules. The stackable 36-kg modules are simply stacked on top of one another without any internal cabling and can be commissioned via plug-and-play. Thanks to IP66 protection and an operating temperature range of −20 °C to +50 °C, the Storage M is suitable for both indoor and outdoor use.

Product benefits

Ten capacity levels ranging from 12.3 kWh to 49.1 kWh – suitable for almost any requirement
Modularly expandable: basic kit with 3 modules, expandable by up to 9 further modules within two years
Plug-and-play commissioning with no internal cable connections between the modules
Designed for dynamic tariffs, energy trading and VPP scenarios – optimised for frequent charge/discharge cycles
Up to 7.2 MWh/kWh guaranteed energy throughput (depending on the country of installation)
10-year warranty upon registration within 30 days of commissioning
IP66 and −20 °C to +50 °C: suitable for indoor and outdoor use
Compact, space-saving design for installation even where space is limited
Natural cooling – silent and low-maintenance
SOC/state of charge display via LED directly on the unit

Product features: SMA Home Storage

Cell technology: LFP (lithium iron phosphate)
Capacity levels (usable): 12.28 / 16.37 / 20.47 / 24.56 / 28.65 / 32.75 / 36.84 / 40.93 / 45.03 / 49.12 kWh
Number of battery modules per capacity level: 3 to 12 modules
Round-trip efficiency (RTE): 93.5% at 0.2 C and 0.5 C
Charge/discharge current: 30 A (Sunny Boy Smart Energy) / 50 A (Sunny Tripower Hybrid X)
Battery module dimensions (W × H × D): 530 × 131.5 × 405 mm, weight: 36 kg
Dimensions of BMS unit (W × H × D): 530 × 140 × 405 mm, weight: 13 kg
Protection rating: IP66; Cooling: Natural; Operating temperature: −20 °C to +50 °C
DC connection: MC4 Evo 2; Communication: RJ45 (CAN), SMA battery interface
Compatible inverters: Sunny Tripower Hybrid X 5–15 kW (up to 36.8 kWh), Sunny Tripower Hybrid X 20–30 kW (up to 49.1 kWh), Sunny Boy Smart Energy (up to 28.6 kWh)

Contents:

1 x SMA Storage M BMS
the relevant number of SMA Storage M battery modules

Matching accessories
New

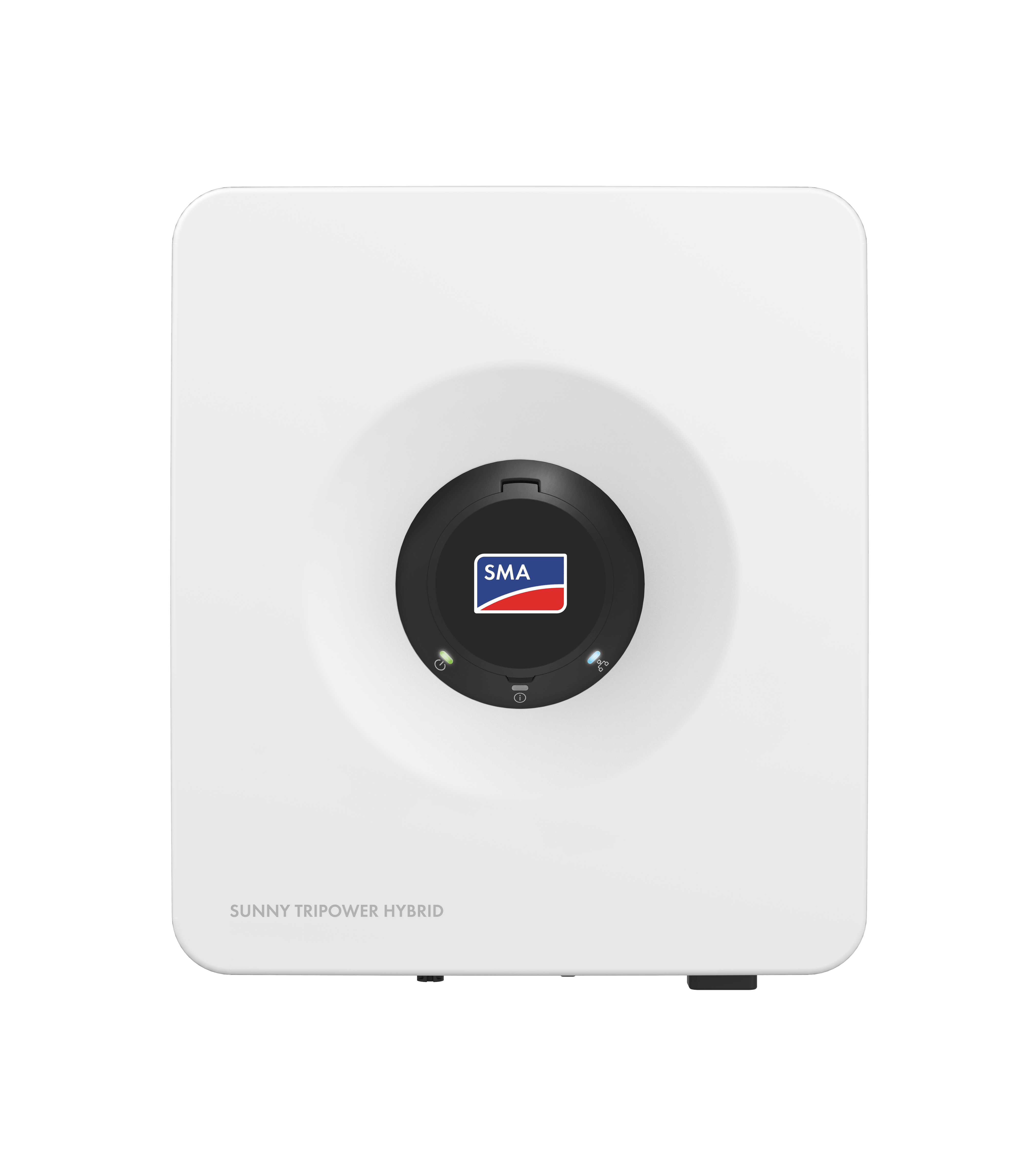

SMA Sunny Tripower Hybrid X 5
