SMA Sunny Island X 30 with Dyness Stack 100 – 51.20 kWh
| Manufacturer Art. No.: | SI30-20, Stack 100 Batteriemodul 5,12kWh, Stack 100 BDU + Sockel |
|---|---|
| Art. Nr.: | 15923 |
| Battery type: | LFP |
| Installation location: | Indoor |
| Usable capacity: | 48.64 kWh |
| Power: | 30 kW |
| Warranty: | 10 years |
| Charging power: | 30.6 kW |
| Discharging power: | 30.6 kW |
| Communication: | CAN/RS485 |
| Commercial storage type: | Modular with inverter |
-
-
{ "id": "e757011898fc5c43ac59bfef8eb17481", "item_brand": "", "item_name": "Dyness Stack 100 battery module with 5.12 kWh", "item_id": "13721", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e757011898fc5c43ac59bfef8eb17481" } } -
{ "id": "e094aeac44cb52edab91db6546c34e99", "item_brand": "", "item_name": "Dyness STACK 100 Extension/Side Tower Kit", "item_id": "14582", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e094aeac44cb52edab91db6546c34e99" } }
-

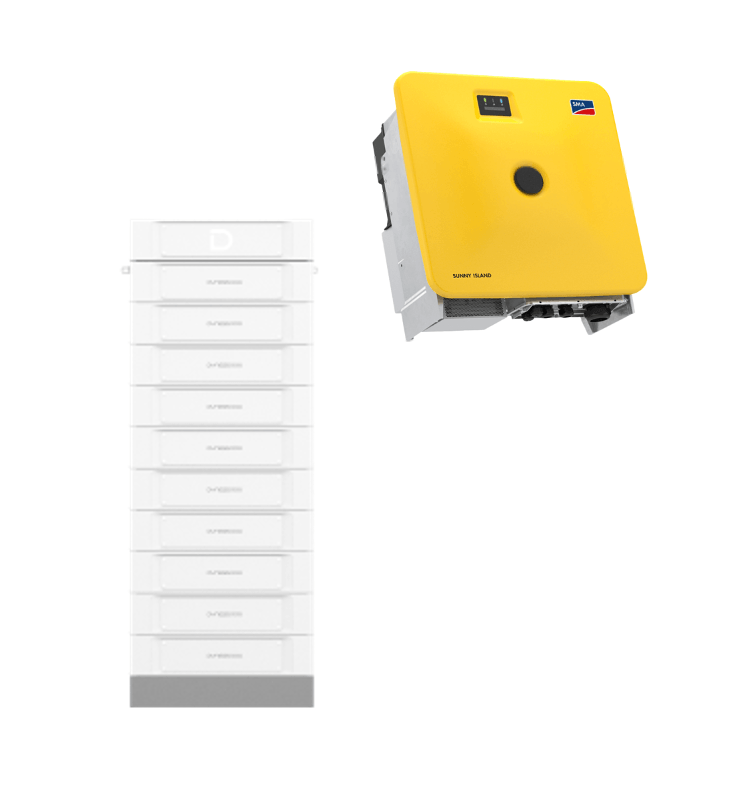

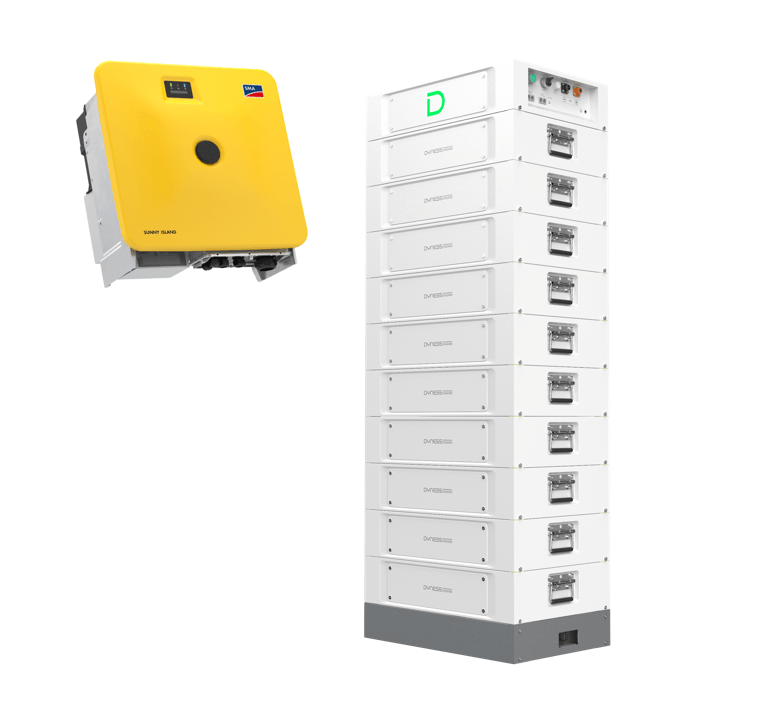

SMA Sunny Island X 30 with Dyness Stack 100 – 51.20 kWh
This high-performance system package combines the Dyness Stack 100 high-voltage storage system, with a usable capacity of 51.2 kWh, with the SMA Sunny Island X 30, one of the most robust and versatile next-generation battery Inverters. The Stack100 impresses with its stackable design featuring plug-and-play installation, an integrated aerosol fire suppression system, an integrated heating function and a service life of over 8,000 cycles – making it ideal for demanding on-grid and off-grid applications in the commercial and industrial sectors. The SMA Sunny Island X 30 complements the system as the central battery Inverter, offering 30 kW of output power, an integrated DC-DC converter and intelligent energy and load management for reliable operation even under the most extreme conditions. Together, these two components form a scalable, future-proof energy storage system with comprehensive system monitoring via Sunny Portal powered by ennexOS.
Final approval from SMA is still pending!
Additional modules for storage expansion can be found in the Recommended Accessories section.
Package benefits:
- 51.2 kWh usable storage capacity based on long-life LiFePO₄ technology with over 8,000 cycles / 10 years
- 30 kW battery inverter power, nominal power even at high ambient temperatures of up to 45 °C
- Suitable for on-grid and off-grid installations – maximum system flexibility for commercial and industrial applications
- Integrated DC-DC converter in the Sunny Island X 30 for compatibility with a wide range of approved high-voltage batteries
- Intelligent load and energy management: Self-consumption optimisation, peak load shaving, multi-use
- Black start capability for restarting even after prolonged grid outages
- Integrated aerosol fire-extinguishing system in the Stack100 with a response time of within 5 seconds
- Integrated heating function enables charging down to −20 °C – reliable storage performance even in winter
- Plug-and-play installation of the Stack100 with no internal cabling – cluster installation possible in 30 minutes
- Up to 10-year warranty on the Sunny Island X 30 (5+5 years upon registration)
Dyness Stack100 (battery):
- Cell technology: LiFePO₄; module voltage/capacity: 51.2 V / 100 Ah
- System capacity in the package: 51.2 kWh (10 modules at 5.12 kWh each)
- Operating voltage: 134–864 V (high voltage); Depth of discharge: 95%
- Max. charge/discharge current: 100 A (1C); recommended: 50 A (0.5C)
- Life cycle: ≥ 8,000 cycles / 10 years; Protection class: IP20
- Integrated heating function: Charging operation from −20 °C to 55 °C (optional); Discharging: −20 °C to 55 °C
- Communication: CAN / RS485; integrated Wi-Fi module with OTA function via app
- Certifications: CE-EMC, CE-RED, IEC 62619, IEC 63056, IEC 62477, IEC 62040, UN 38.3
SMA Sunny Island X 30 (battery Inverter):
- Rated AC power: 30 kW; max. apparent power: 30 kVA
- DC voltage range: 200–980 V; max. input current: 150 A
- Max. efficiency: 98.0%; European efficiency: 97.6%
- Topology: 3-phase; cooling method: active; protection class: IP65
- Operating temperature: −25 °C to +60 °C (derating from 45 °C)
- Communication: Modbus TCP, Speedwire, Wi-Fi; Weight: 104 kg
- Dimensions (W × H × D): 772 × 837 × 444 mm
- Warranty: up to 10 years (5+5 years upon registration)
Contents:
- 1× Dyness Stack100 high-voltage storage system with 10 battery modules (51.2 kWh total capacity)
- 1× SMA Sunny Island X 30 battery Inverter (SI30-20)
- Connection cables between battery modules (internal to the Stack)
- Stack100 installation kit
