SolarEdge CSS-OD 102.4 kWh/50 kW commercial storage system
| Art. Nr.: | 12650 |
|---|---|
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 97.28 kWh |
| Power: | 50 kW |
| Warranty: | 10 years |
| Charging power: | 50 kW |
| Discharging power: | 50 kW |
| Communication: | CAN/RS485 |
| Commercial storage type: | All-in-One |
-
-
{ "id": "c4d11940f22d52c082e7a1b0e851968b", "item_brand": "", "item_name": "SolarEdge & SolarEdge CSS-OD 102.4 kWh extension cabinet incl. cable set", "item_id": "13860", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c4d11940f22d52c082e7a1b0e851968b" } } -
{ "id": "e58a7f7ad9cb5d62bf034d80ccdf0eda", "item_brand": "", "item_name": "SolarEdge & SolarEdge energy meter with Modbus connection", "item_id": "4945", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e58a7f7ad9cb5d62bf034d80ccdf0eda" } } -
{ "id": "8e29513830f05feca6ac140126ef807d", "item_brand": "", "item_name": "SolarEdge current sensor type 250A SECT-SPL-250A-A", "item_id": "6750", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8e29513830f05feca6ac140126ef807d" } }
-

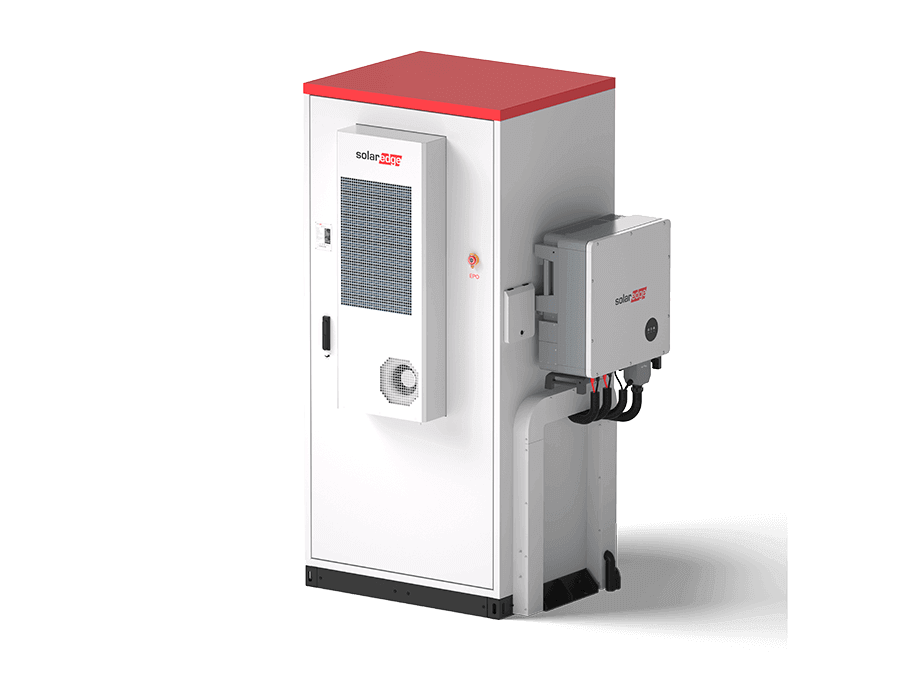

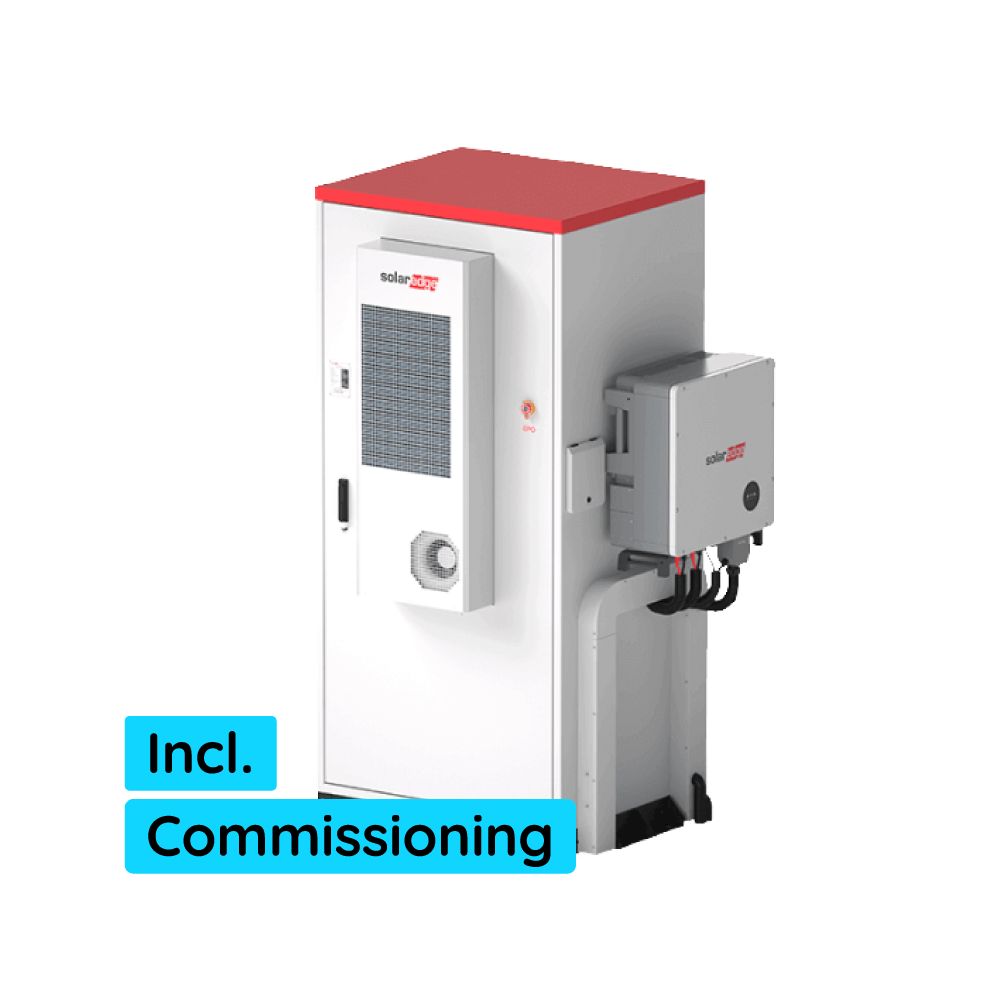

SolarEdge CSS-OD 102.4 kWh/50 kW
SolarEdge presents its brand-new C&I storage solution. The SolarEdge CSS-OD solution, with a capacity of 102.4 kWh, is suitable for both indoor and outdoor installations. The storage system consists of a pre-assembled battery cabinet and a 50 kW AC-coupled battery inverter, which can be seamlessly connected to your SolarEdge PV system.
The CSS-OD system is controlled by the SolarEdge ONE platform for C&I to optimise energy consumption. SolarEdge ONE controls the functions of the entire system as required to achieve maximum savings. With this system, you can source all the necessary solutions – from photovoltaics to energy storage – from a single manufacturer: SolarEdge.
Note on commissioning: To ensure a smooth initial commissioning of the SolarEdge CSS-OD, SolarEdge recommends booking an appointment in good time using the following online form: Book an appointment with SolarEdge now
For the first installation of a SolarEdge commercial storage system (CSS-OD), installers receive free on-site support from a SolarEdge Field Service Engineer.
Requirements:
- Register by emailing css@solaredge.com with your preferred date.
- Appointment arranged by the FSE.
- An IBN report must be signed during the first installation. This provides the installer with the certificate required to commission further systems independently.
Important: Subsequent commissioning by SolarEdge is no longer free of charge and will incur a fee.
Energy meters and CTs are also required
:- SolarEdge energy meter with Modbus connection-
3x SolarEdge current sensor, type 100A SECT-SPL-100A-A

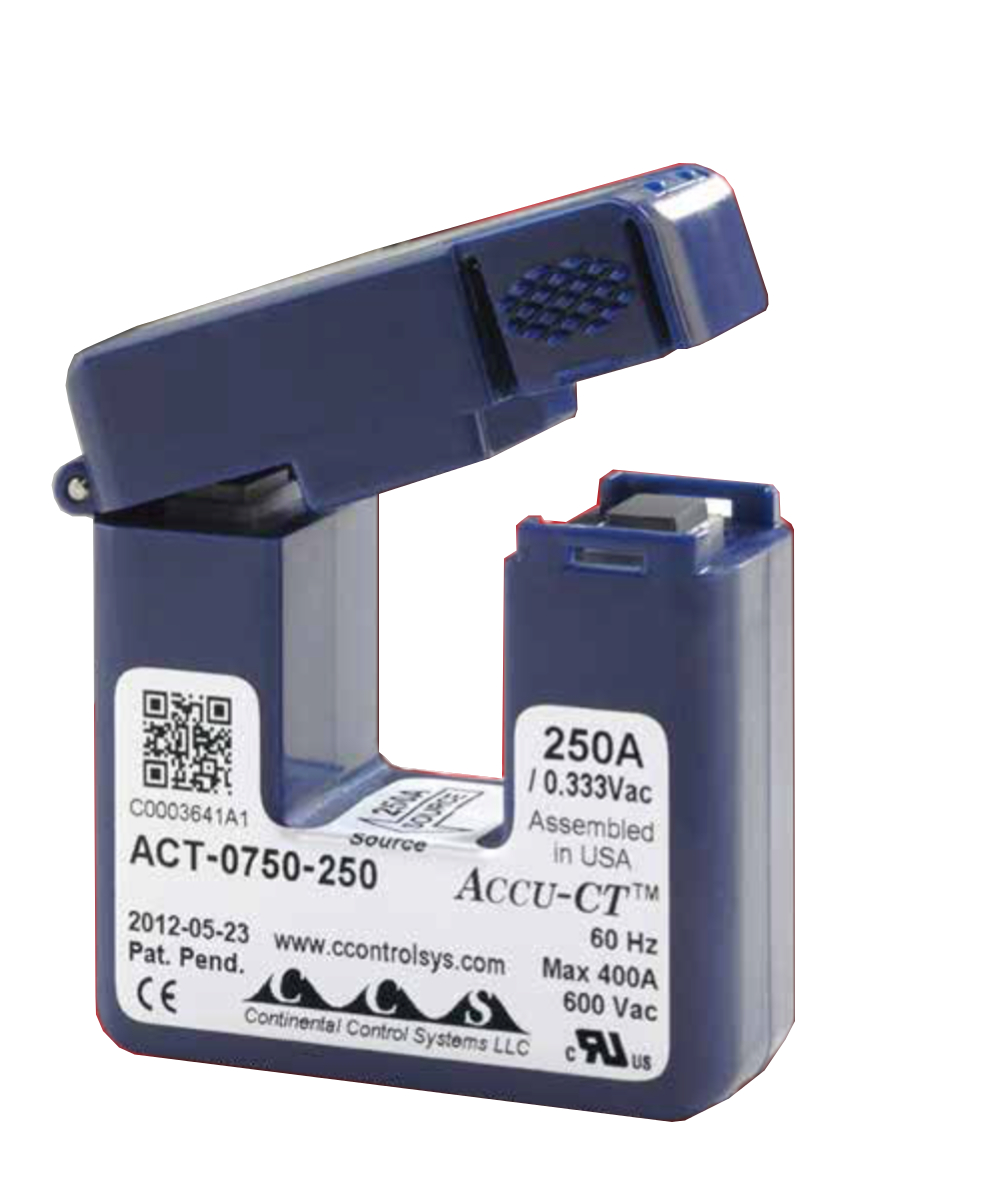

- 3x SolarEdge current sensors, type 250A (
SECT-SPL-250A-A) - 3x SolarEdge current sensors, type 1000A (SECT-SPL-1000A-A)
Product specifications for the SolarEdge CSS-OD:
- Total capacity: 102.4 kWh
- Usable capacity: 97.28 kWh
- Battery operating voltage: 456–576 Vdc
- Connection to the mains: three-phase
- Rated output power: 50 kW
- Operating ambient temperature range: -20 ~ +45 °C
- Cooling: HVAC (Heating, Ventilation and Air Conditioning)
- Protection rating: IP54 (enclosure), IP65 (Inverter)
- Dimensions (enclosure) (W×H×D): 1100×2380×1100 mm
- Dimensions (inverter) (W×H×D): 650×325×715 mm
- Weight: 1433 + 75 kg
Product benefits
- Suitable for both outdoor and indoor use
- LFP cell chemistry
- Includes SolarEdge ONE C&I
- Scalable up to 1 MWh (following a firmware update)
- System warranty: 10
- Performance warranty: 6,000 cycles or 10 years up to 70% SoH
Applications
The SolarEdge CSS-OD commercial storage system is the perfect complement to any larger SolarEdge PV system, but it can also be added to existing systems with third-party inverters.
-
