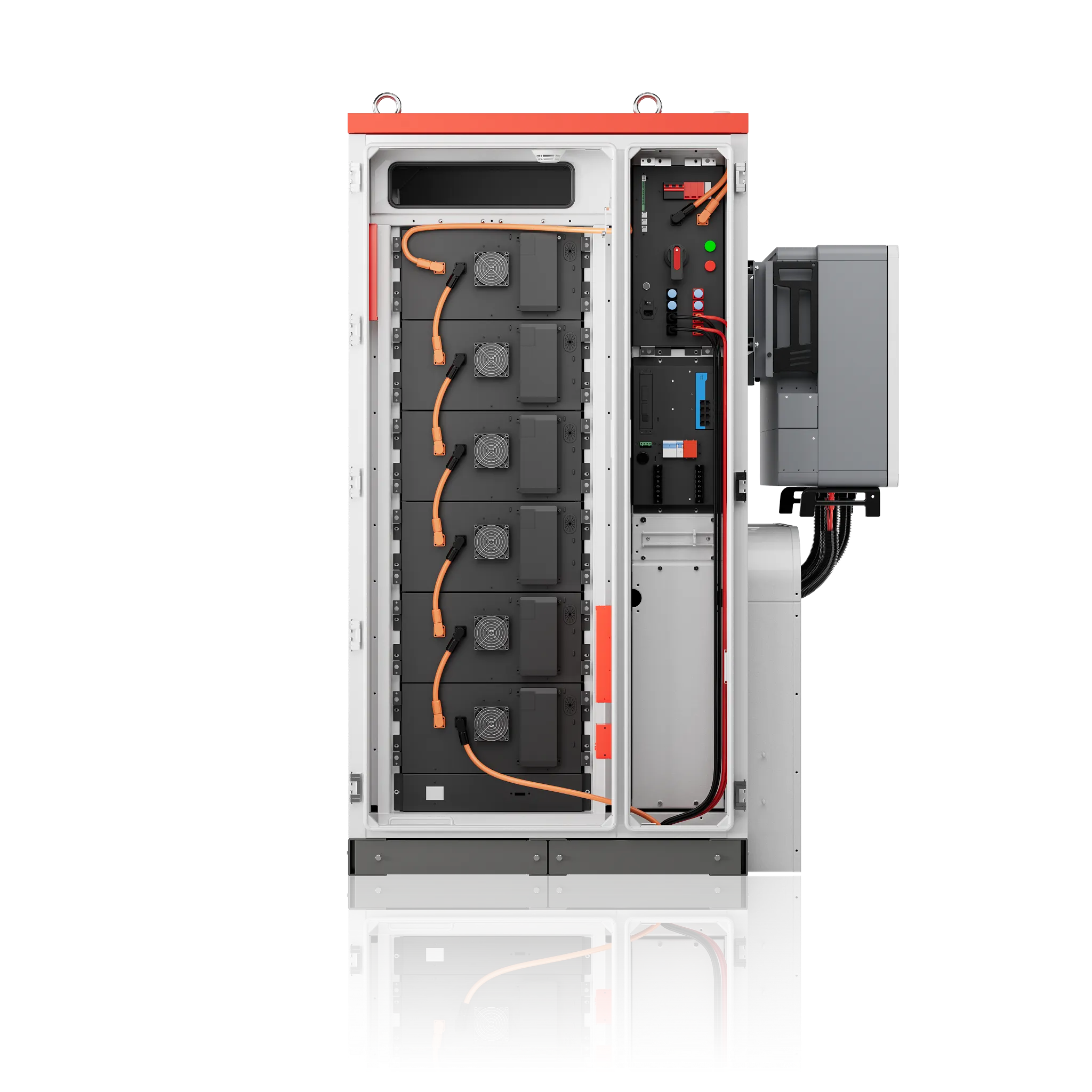

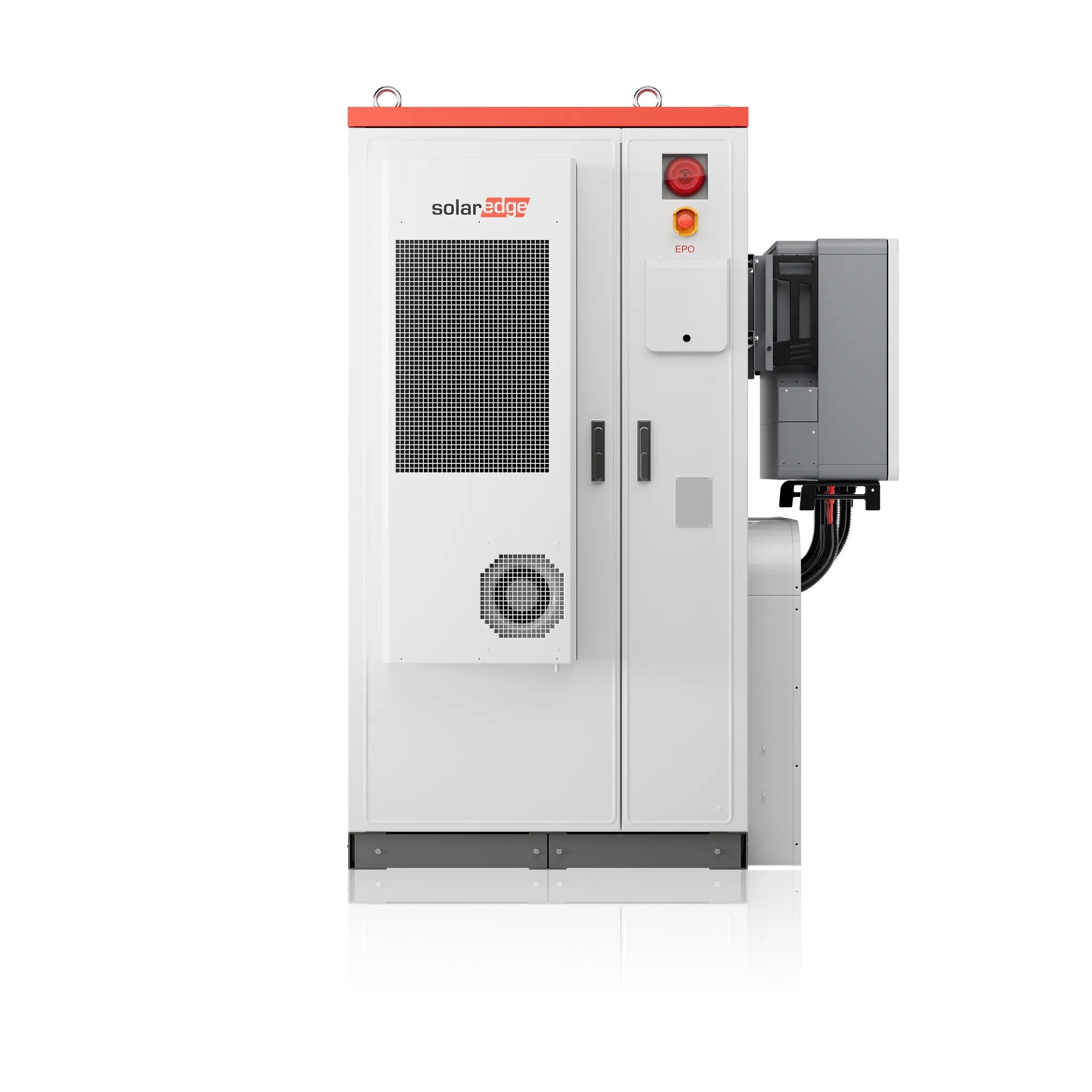

SolarEdge CSS-OD 107 kWh / 30 kW with backup
| Art. Nr.: | 16231 |
|---|---|
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 102.14 kWh |
| Power: | 29.9 kW |
| Warranty: | 10 years |
| Charging power: | 29.9 kW |
| Discharging power: | 29.9 kW |
| Communication: | CAN/RS485 |
| Commercial storage type: | All-in-One |
- New
SolarEdge CSS-OD 107 – 107 kWh / 30 kW with Backup-Ready function
The SolarEdge CSS-OD 107 with a 30 kW battery inverter is a complete AC-coupled Commercial storage system for Commercial & Industrial (C&I) applications. It combines a 107 kWh LFP battery cabinet with a high-performance 29.9 kW battery inverter (PCS030B) and an integrated Backup-Ready function.
When used in conjunction with the SolarEdge ONE Controller for C&I, the system enables intelligent energy optimisation and site monitoring. It supports various optimisation modes, such as Self-consumption optimisation, peak shaving, and optimisation of electricity tariffs and export/import limits.
The system is pre-assembled and tested at the factory, which speeds up installation and commissioning. Configuration and commissioning are carried out conveniently via the SolarEdge Go app. The system can also be scaled up to a Storage capacity of 2.1 MWh.
The integrated ‘Backup-Ready’ function enables selected loads to be powered in the event of a grid outage. The backup function is currently limited to one battery inverter per site and requires a firmware update, which is expected to be available in the course of 2026. In backup mode, the system switchover time is < 20 ms.
The SolarEdge CSS-OD 107kWh/30kW is not intended for use on roofs!
Backup is currently limited to one battery inverter per site and requires a firmware update, which is expected to be available in the course of 2026.
Note on commissioning: To ensure a smooth initial commissioning of the SolarEdge CSS-OD, SolarEdge recommends booking an appointment in good time using the following online form: Book an appointment with SolarEdge now
For the first installation of a SolarEdge commercial storage system (CSS-OD), installers receive free on-site support from a SolarEdge Field Service Engineer.
Requirements
: - Registration by email to css@solaredge.com with your preferred date.
- Appointment arranged by the FSE.
- An IBN report must be signed during the first installation. This provides the installer with the certificate required to commission further systems independently.
Important: Subsequent commissioning by SolarEdge is no longer free of charge and will incur a fee.
Energy meters and CTs are also required
:- SolarEdge energy meter with Modbus connection-
3x SolarEdge current sensor, type 100A SECT-SPL-100A-A
- 3x SolarEdge current sensors, type 250A (
SECT-SPL-250A-A) - 3x SolarEdge current sensors, type 1000A (SECT-SPL-1000A-A)
Product specifications for the SolarEdge CSS-OD107/30:
- Total battery system capacity: 107.52 kWh
- Usable battery capacity: 102.14 kWh
- Battery inverter power: 29.9 kW
- Max. DC input power: 33 kW
- Max. DC input current: 60 A × 2
- Scalability: up to 2.1 MWh
- Cell technology: lithium iron phosphate (LFP)
- Max. C-rate: 0.5 C
- Backup function: integrated (firmware update required)
- Backup switchover time: <20 ms
- Protection class of battery cabinet: IP54
- Battery inverter protection class: IP66
- Corrosion protection: C4
- Dimensions of battery cabinet (W × D × H): 1050 × 1371 × 2085 mm
- Weight of battery cabinet: 1,435 kg
- Dimensions of inverter (W × D × H): 900 × 322 × 650 mm
- Weight of battery cabinet: 80 kg
Product benefits
- AC-coupled commercial storage system with a 29.9 kW battery inverter
- 107.52 kWh total capacity / 102.14 kWh usable capacity
- Scalable up to 2.1 MWh
- Integrated backup-ready function
- Compact all-in-one solution
- Pre-assembled and tested at the factory
- Suitable for indoor and outdoor installations
- SolarEdge ONE integration for smart energy management
- Comprehensive safety concept at cell, module, cluster and cabinet level
- Integrated fire detection and suppression mechanisms
- 10-year system warranty
- 8,000 cycles or 70% SoH after 10 years
-
