SolarEdge & SolarEdge CSS-OD 107kWh / 50 kW with backup
| Art. Nr.: | 15687 |
|---|---|
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 102.14 kWh |
| Power: | 50 kW |
| Warranty: | 10 years |
| Charging power: | 50 kW |
| Discharging power: | 50 kW |
| Communication: | CAN/RS485 |
| Commercial storage type: | All-in-One |
- New

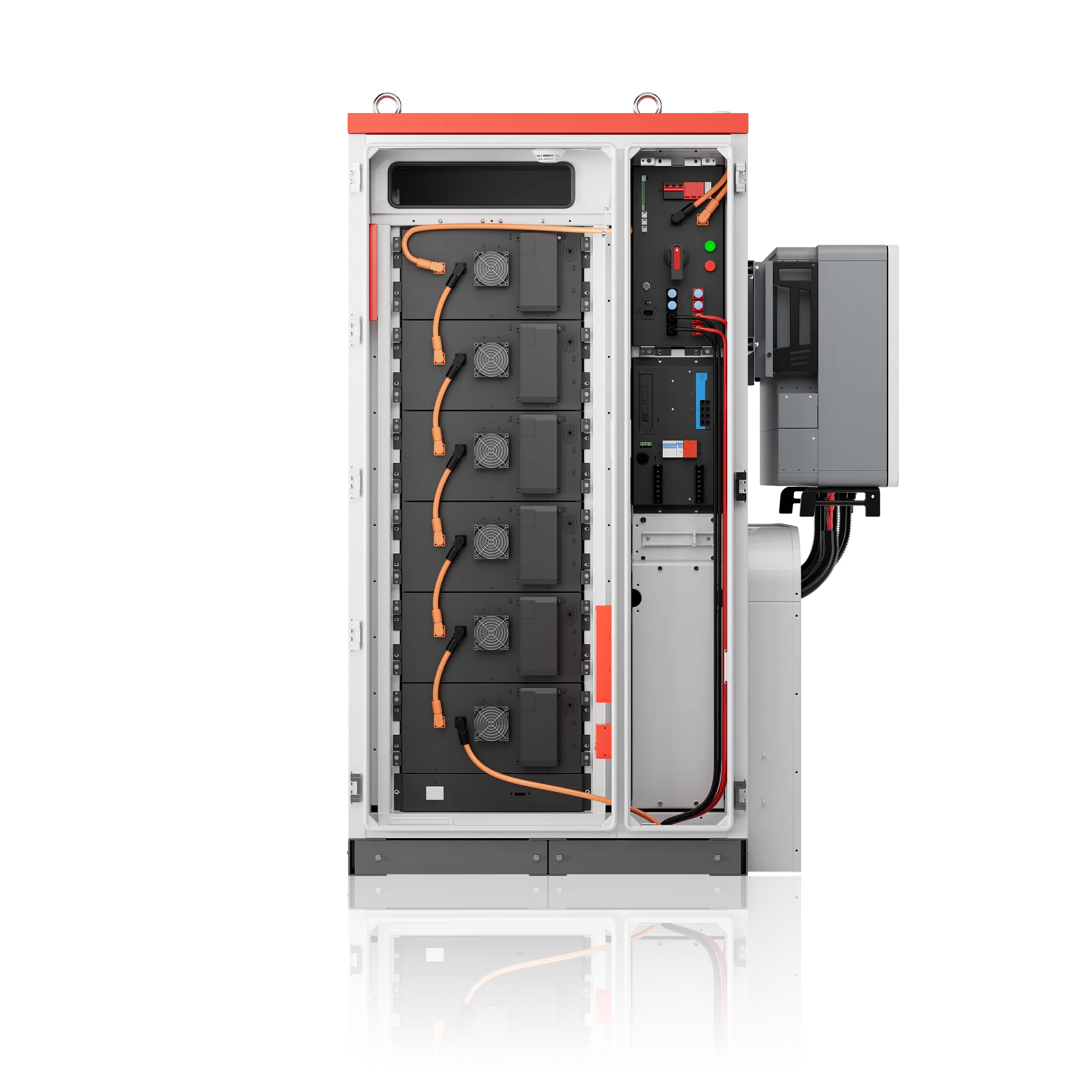

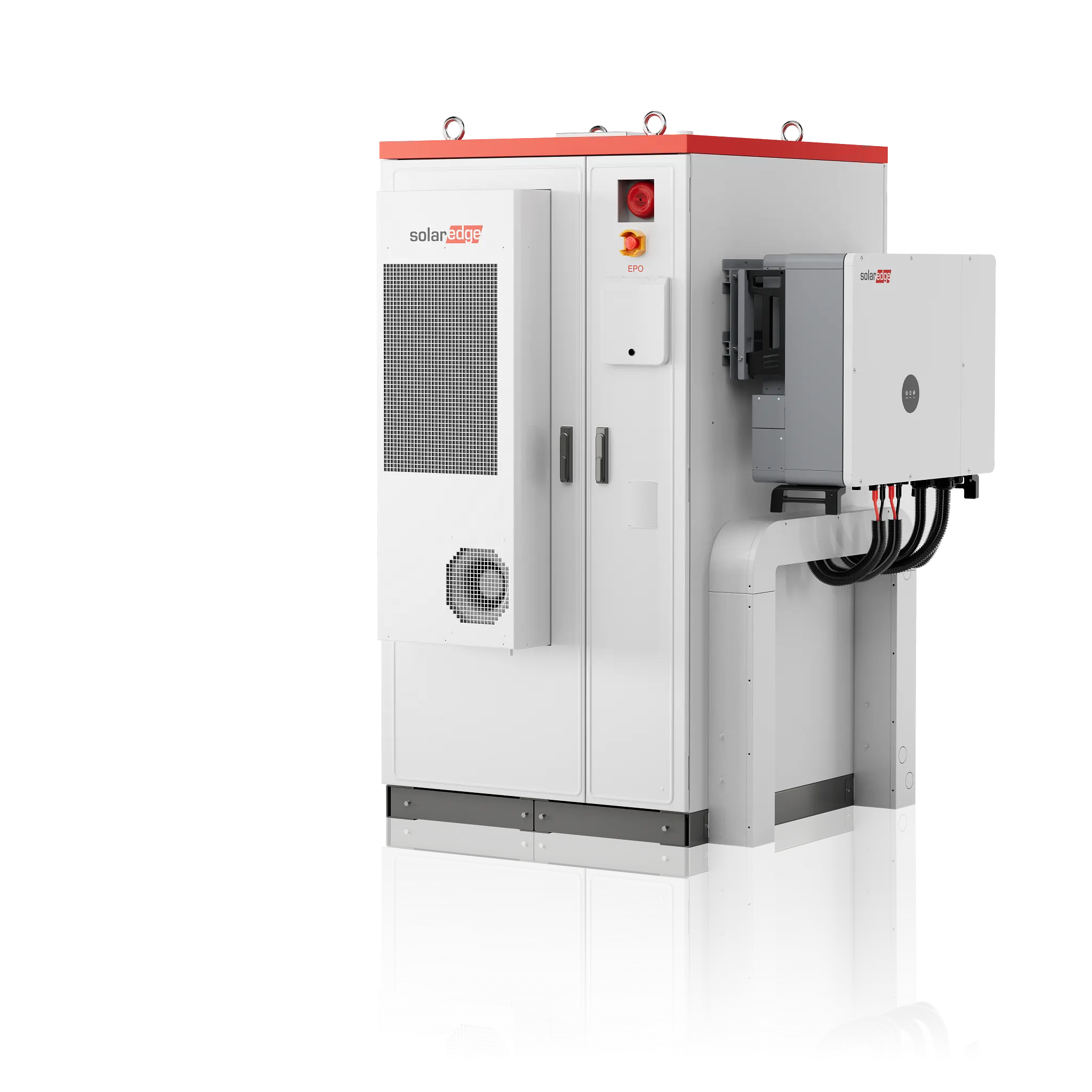

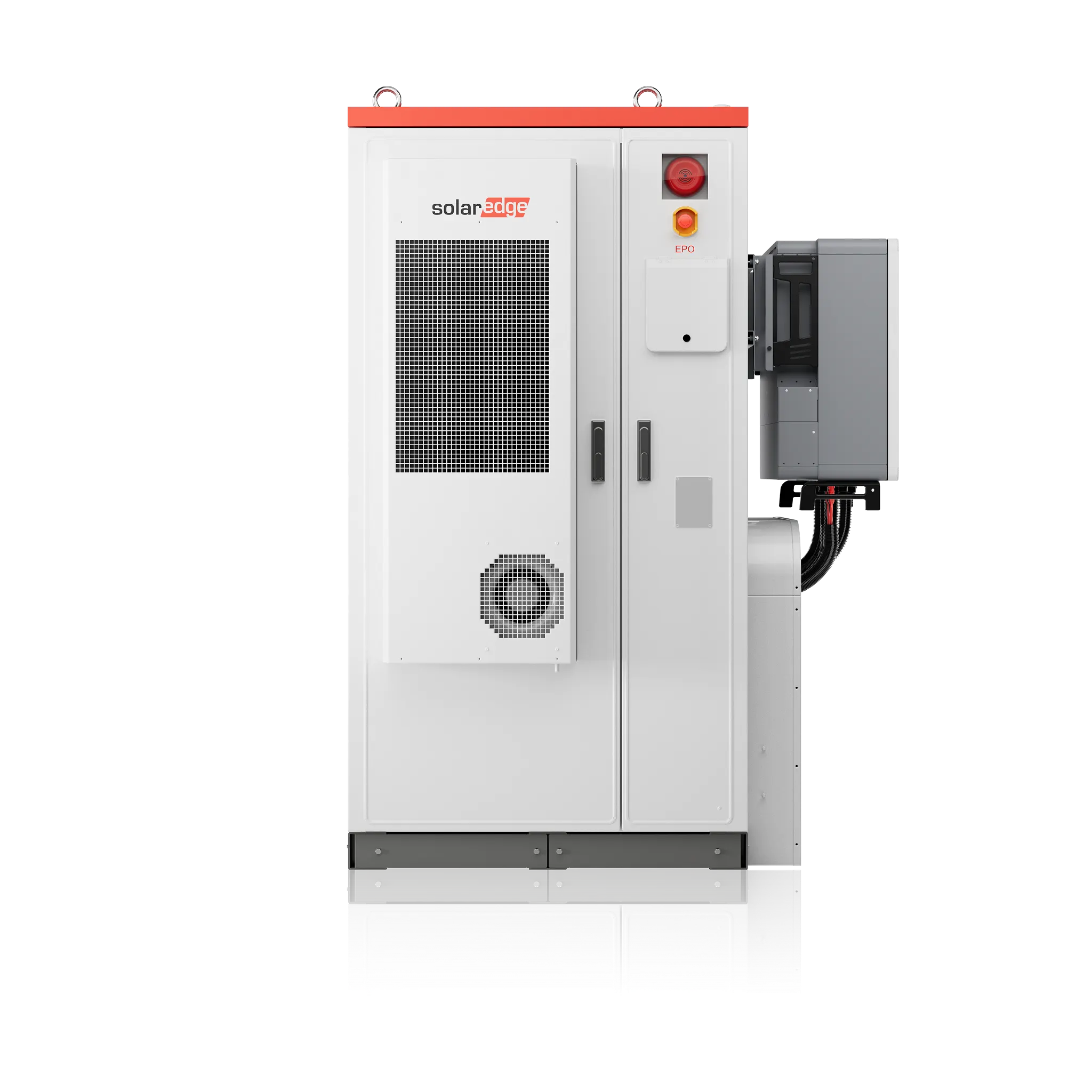

SolarEdge CSS-OD 107 – 107 kWh / 50 kW with Backup-Ready function
The SolarEdge CSS-OD 107 is a complete AC-coupled commercial storage system for commercial and industrial (C&I) applications, combining a 107 kWh LFP battery cabinet with a high-performance 50 kW battery inverter featuring an integrated Backup-Ready function.
In combination with the SolarEdge ONE Controller for C&I, the system enables intelligent cloud-based energy optimisation for applications such as EVO, peak shaving, Dynamic electricity tariffs, high-load time windows, as well as backup and resilience solutions.
The system is pre-assembled and tested at the factory, significantly reducing installation and commissioning time. Configuration is conveniently carried out via the SolarEdge Go app.
Backup is currently limited to one battery inverter per site and requires a firmware update, which is expected to be available in the course of 2026.
Note on commissioning: To ensure a smooth initial commissioning of the SolarEdge CSS-OD, SolarEdge recommends booking an appointment in good time using the following online form: Book an appointment with SolarEdge now
For the first installation of a SolarEdge commercial storage system (CSS-OD), installers receive free on-site support from a SolarEdge Field Service Engineer.
Requirements:
- Registration by email to css@solaredge.com with your preferred date
.- Appointment arranged by the FSE
.- An IBN report must be signed during the first installation. This provides the installer with the certificate required to commission further systems independently.
Important: Subsequent commissioning by SolarEdge is no longer free of charge and will incur a fee.
Energy meters and CTs are also required:
- SolarEdge energy meter with Modbus connection
- 3x SolarEdge current sensor type 100A SECT-SPL-100A-A
- 3x SolarEdge current sensor type 250A
SECT-SPL-250A-A - 3x SolarEdge current sensor type 1000A SECT-SPL-1000A-A
Product specifications of the SolarEdge CSS-OD:
- Total battery system capacity: 107.52 kWh
- Usable battery capacity: 102.14 kWh
- Battery inverter power: 49.9 kW
- Scalability: up to 2.1 MWh
- Cell technology: Lithium iron phosphate (LFP)
- Max. C-rate: 0.5 C
- Backup function: integrated (firmware update required)
- Backup switchover time: <20 ms
- Protection class of battery cabinet: IP54
- Battery inverter protection class: IP66
- Corrosion protection: C4
- Battery cabinet dimensions (W × D × H): 1050 × 1371 × 2085 mm
- Weight of battery cabinet: 1,435 kg
- Dimensions of inverter (W × D × H): 900 × 322 × 650 mm
- Weight of battery cabinet: 80 kg
Product benefits
- AC-coupled commercial storage system
- Scalable up to 2.1 MWh
- Integrated backup-ready function
- Compact all-in-one solution
- Pre-assembled and tested at the factory
- Suitable for indoor and outdoor installations
- SolarEdge ONE integration for smart energy management
- Comprehensive safety concept at cell, module and cabinet level
- 10-year product warranty
- 8,000 cycles or 70% SoH after 10 years
-
