Solinteg M2HT-25K-150
| Type of manufacturer: | M2HT-25K-150 |
|---|---|
| Manufacturer Art. No.: | M2HT-25K-150 |
| Art. Nr.: | 15801 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter, Project inverter |
| MPP-Tracker: | 4 |
| AC power: | 25 kW |
| Warranty: | 5 years |
| Communication: | CAN, RS485 |
| MPP voltage range: | 200-950 Volt |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15801
-
-
{ "id": "3c49148993625726a17a3b315db5923e", "item_brand": "", "item_name": "Solinteg E2BR-S64K-C – Battery cabinet, 64.3 kWh", "item_id": "15877", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3c49148993625726a17a3b315db5923e" } } -
{ "id": "43dcf303db9656cca5f8bc18ff7fc1cd", "item_brand": "", "item_name": "Solinteg E2BR-S96K-C – Battery cabinet 96.4 kWh", "item_id": "15878", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "43dcf303db9656cca5f8bc18ff7fc1cd" } }
-
Description

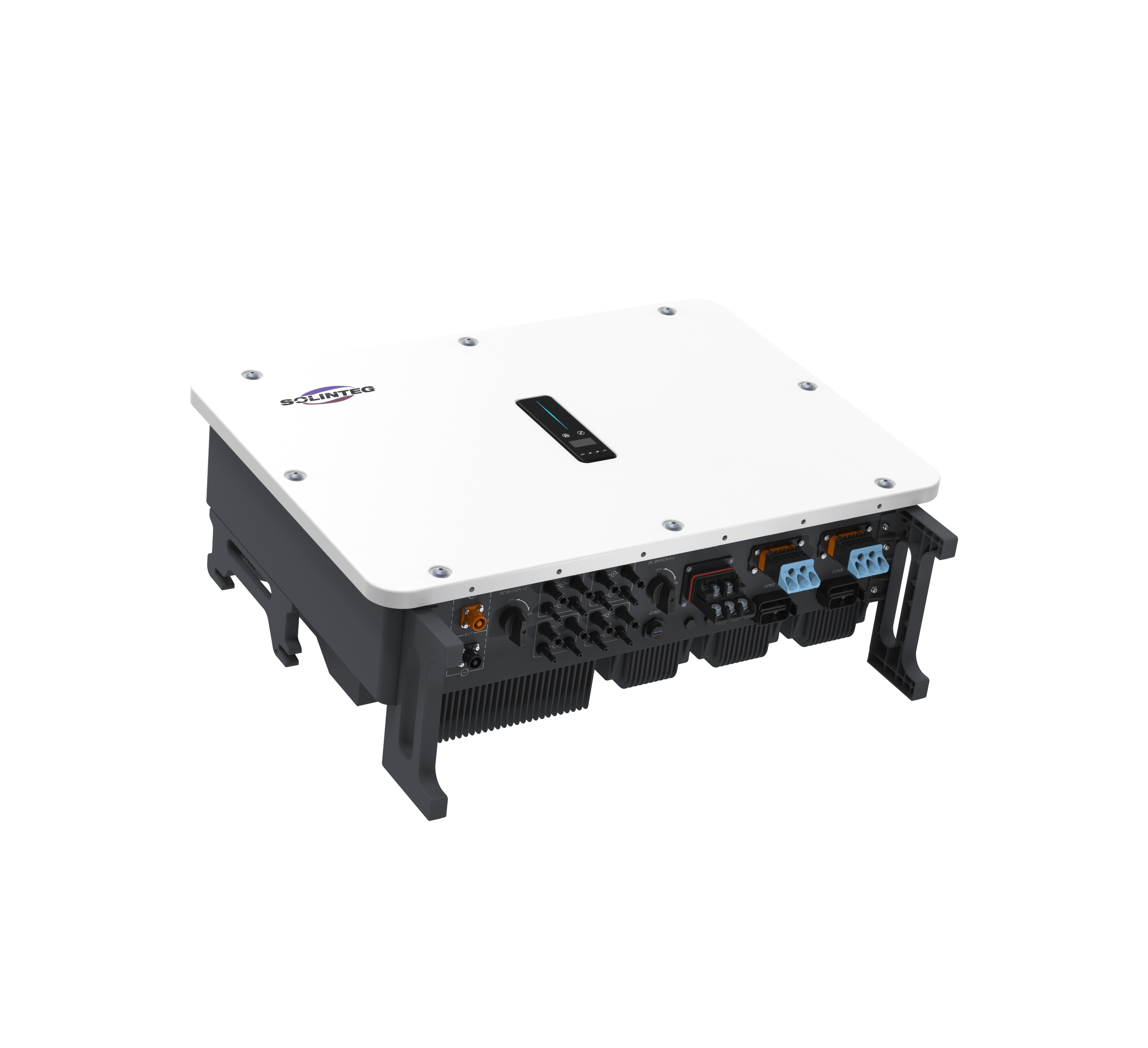

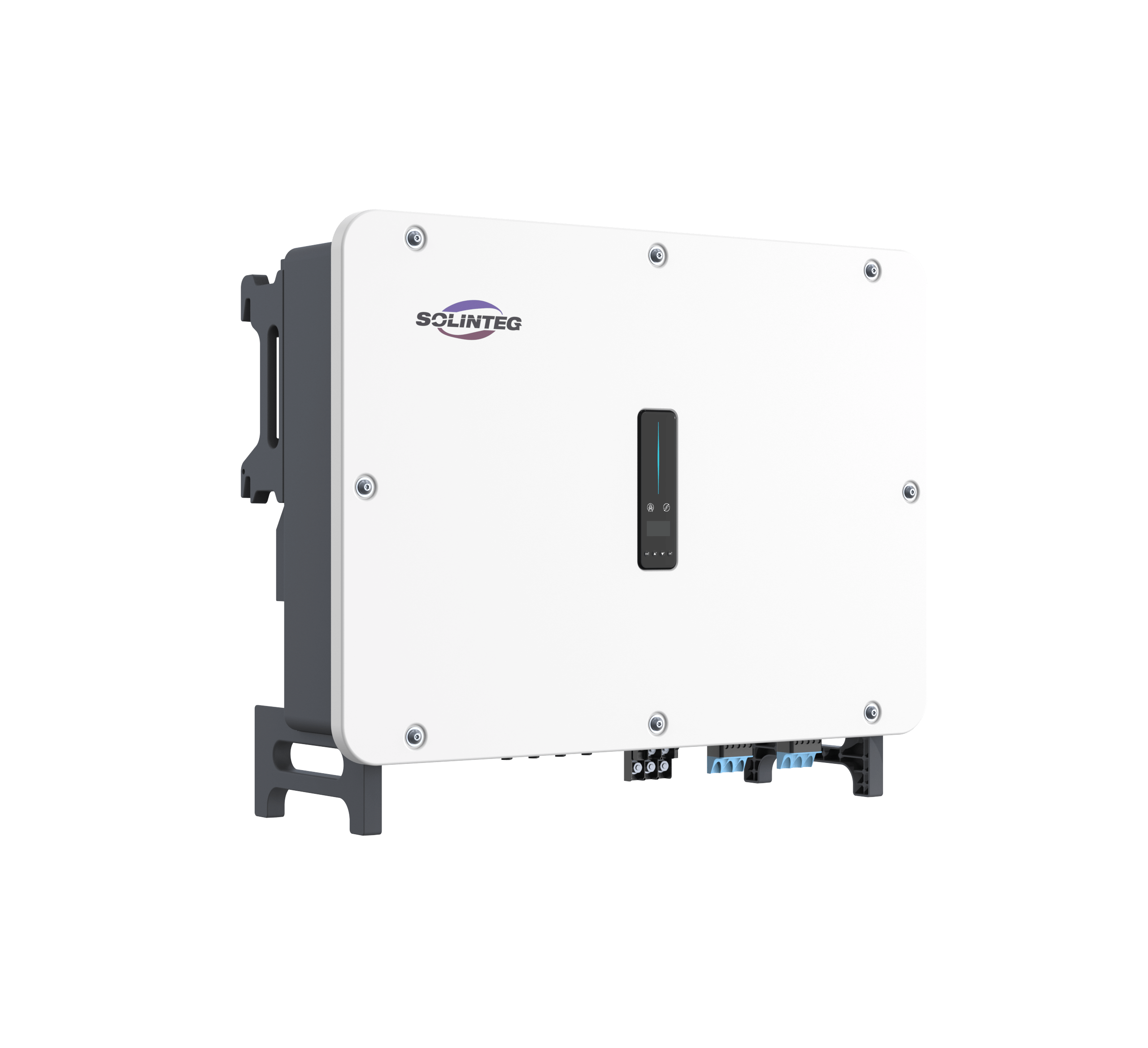

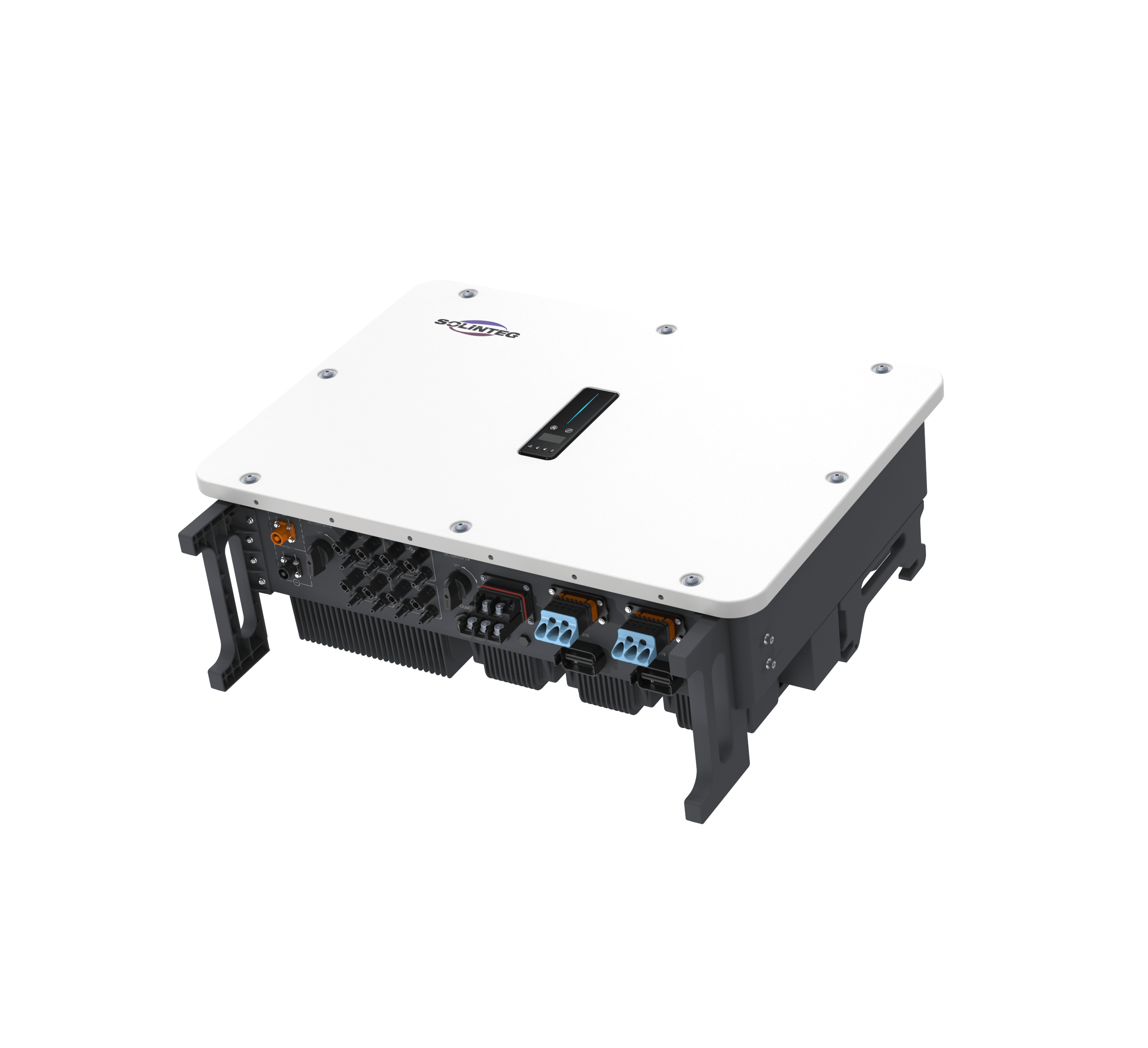

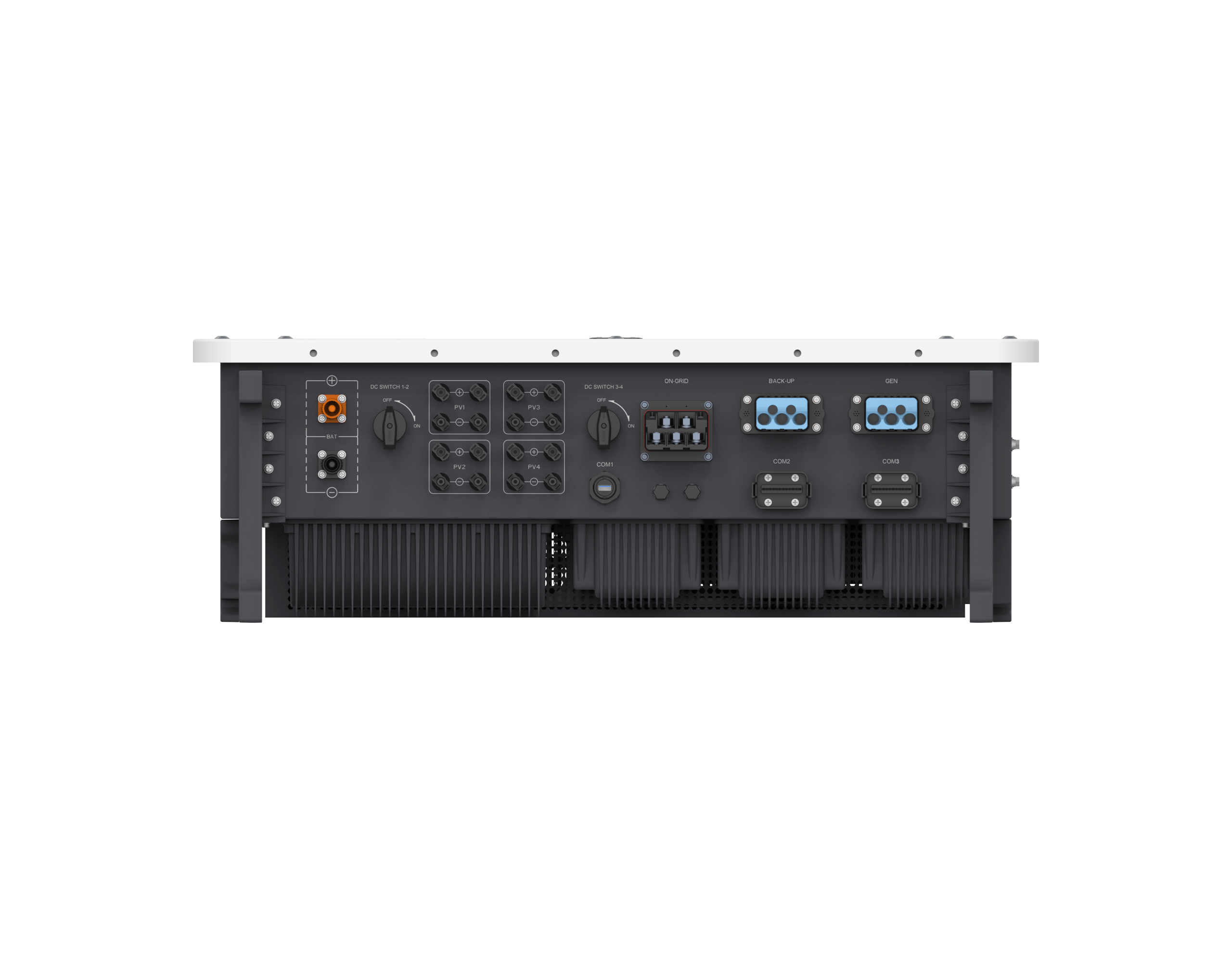

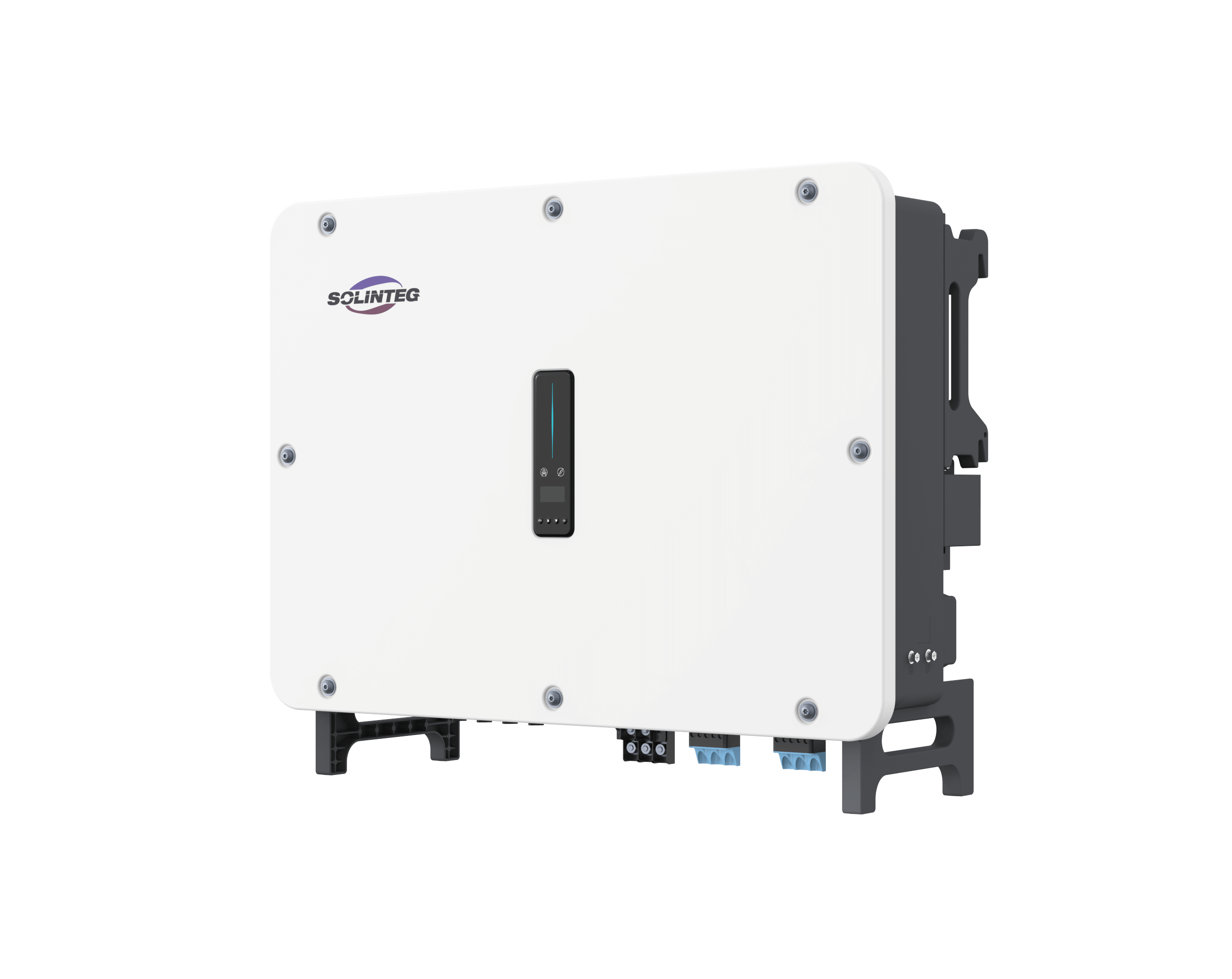

Solinteg M2HT-25K-150 Hybrid Inverter
The Solinteg M2HT-25K-150 is a three-phase hybrid inverter for commercial photovoltaic and storage systems. With 25 kW AC power, four MPP trackers and a battery capacity of up to 25 kW, it is ideal for smaller commercial projects with a high Self-consumption ratio.
Advantages:
- 4 MPP trackers for flexible system design
- 150 A charging and discharging current
- 200% DC oversizing
- Back-up power function with switchover time < 10 ms
- Support for asymmetrical loads
- Compatible with third-party EMS and BMS
- IP66 for indoor and outdoor installation
Technical specifications:
- Rated AC power: 25 kW
- Max. PV power: 50 kWp
- Number of MPP trackers: 4
- Max. PV input current: 40 A per MPPT
- Battery range: 150–840 V
- Charging and discharging power: 25 kW
- Max. efficiency: 97.8%
- Protection class: IP66
- Dimensions (L × W × H): 919 × 305 × 739 mm
- Weight: 89 kg
-
