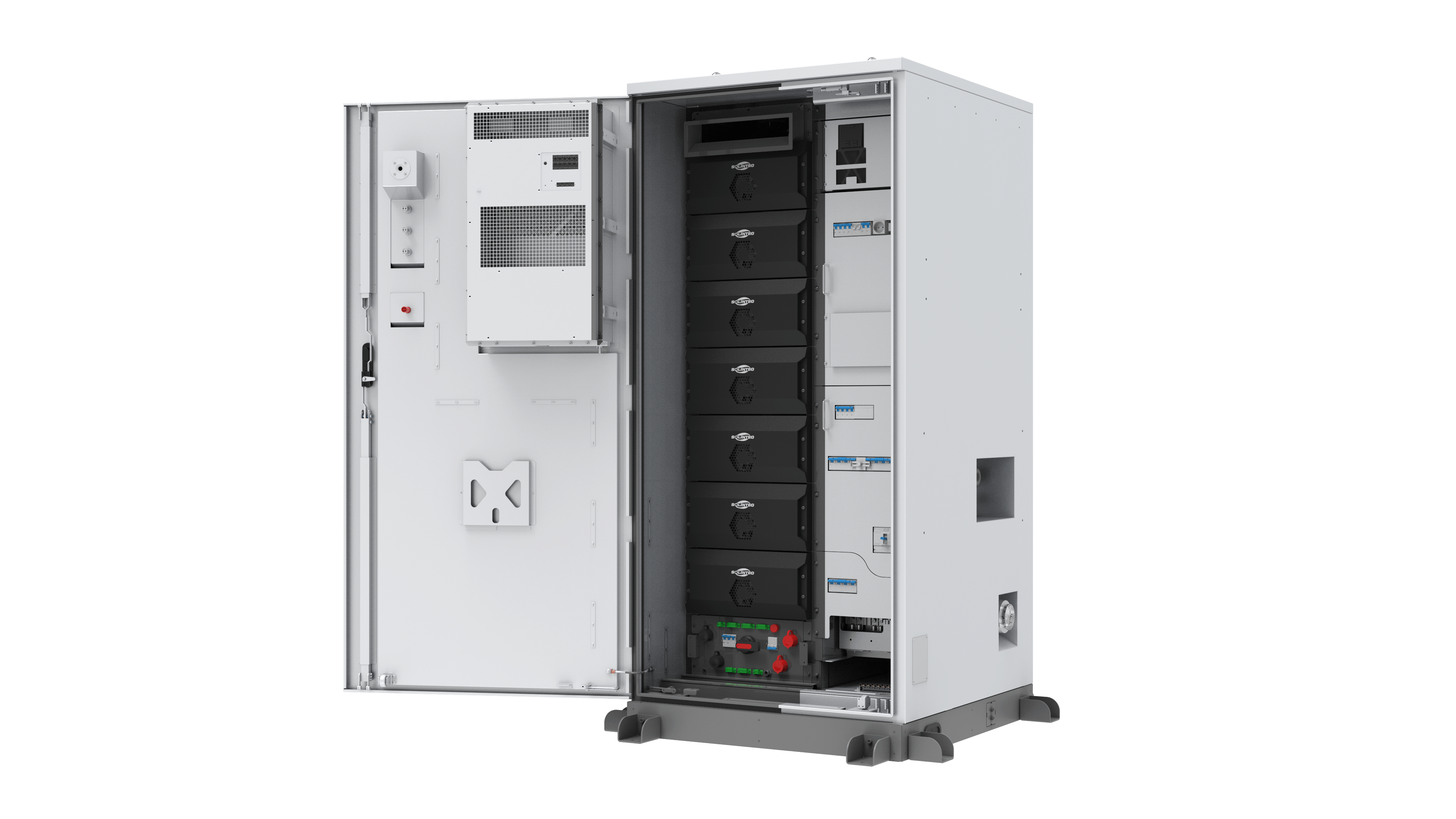

Solinteg E2BR-S64K-C – Battery cabinet, 64.3 kWh
| Manufacturer Art. No.: | E2BR-S64K-C |
|---|---|
| Art. Nr.: | 15877 |
| Pieces per package unit: |
|
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 57.87 kWh |
| Warranty: | 5 years |
| Communication: | CAN/RS485 |
| Commercial storage type: | Modular without inverter |
Prices are only visible to business customers upon successful registration.
- New
Available from 20.07.2026
Product number:
15877
-
-
{ "id": "14062804127559f384c4d6b22393617a", "item_brand": "", "item_name": "Solinteg M2HT-25K-150", "item_id": "15801", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "14062804127559f384c4d6b22393617a" } } -
{ "id": "25b595e5e4b752b9a25993a40fe26d2d", "item_brand": "", "item_name": "Solinteg M2HT-30K-150", "item_id": "15799", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "25b595e5e4b752b9a25993a40fe26d2d" } } -
{ "id": "b0241ac472d6552f9fb3339cc1ff2d73", "item_brand": "", "item_name": "Solinteg M2HT-50K-150", "item_id": "15677", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b0241ac472d6552f9fb3339cc1ff2d73" } }
-
Description
Solinteg E2BR-S64K-C – Battery cabinet with 64.3 kWh
The Solinteg E2BR-S64K-C is a compact battery cabinet designed for commercial and industrial energy storage applications. With a storage capacity of 64.3 kWh, integrated temperature management and multi-stage fire protection, the system is ideally suited for self-consumption applications, peak shaving and backup solutions.
The design of the battery cabinet is specifically tailored to the Solinteg M2HT series, enabling seamless integration.
Compatible hybrid inverters:
- Solinteg M2HT-25K-150
- Solinteg M2HT-30K-150
- Solinteg M2HT-50K-150
Technical specifications:
- Storage capacity: 64.3 kWh
- Usable storage capacity: 57.87 kWh
- Battery type: Lithium iron phosphate (LiFePO₄)
- Number of battery modules: 4
- Nominal voltage: 204.8 V
- Operating voltage range: 166.4 – 233.6 V
- Recommended charge/discharge current: 157 A
- Cycle life: 8,000 cycles
- Protection rating: IP55
- Communication: CAN, RS485
- Cooling: Air conditioning system with 2 kW cooling and 2 kW heating capacity
- Weight: 1,089 kg
- Dimensions (L × W × H): 1,140 × 1,050 × 2,262 mm
- Installation: Floor-mounted
