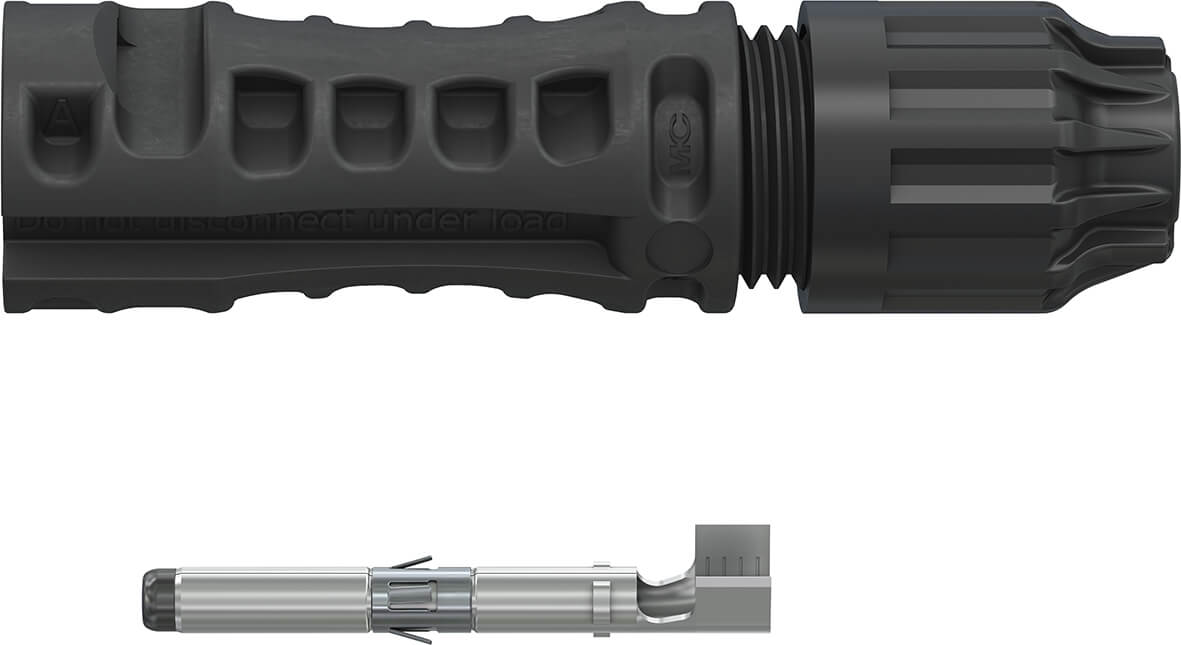

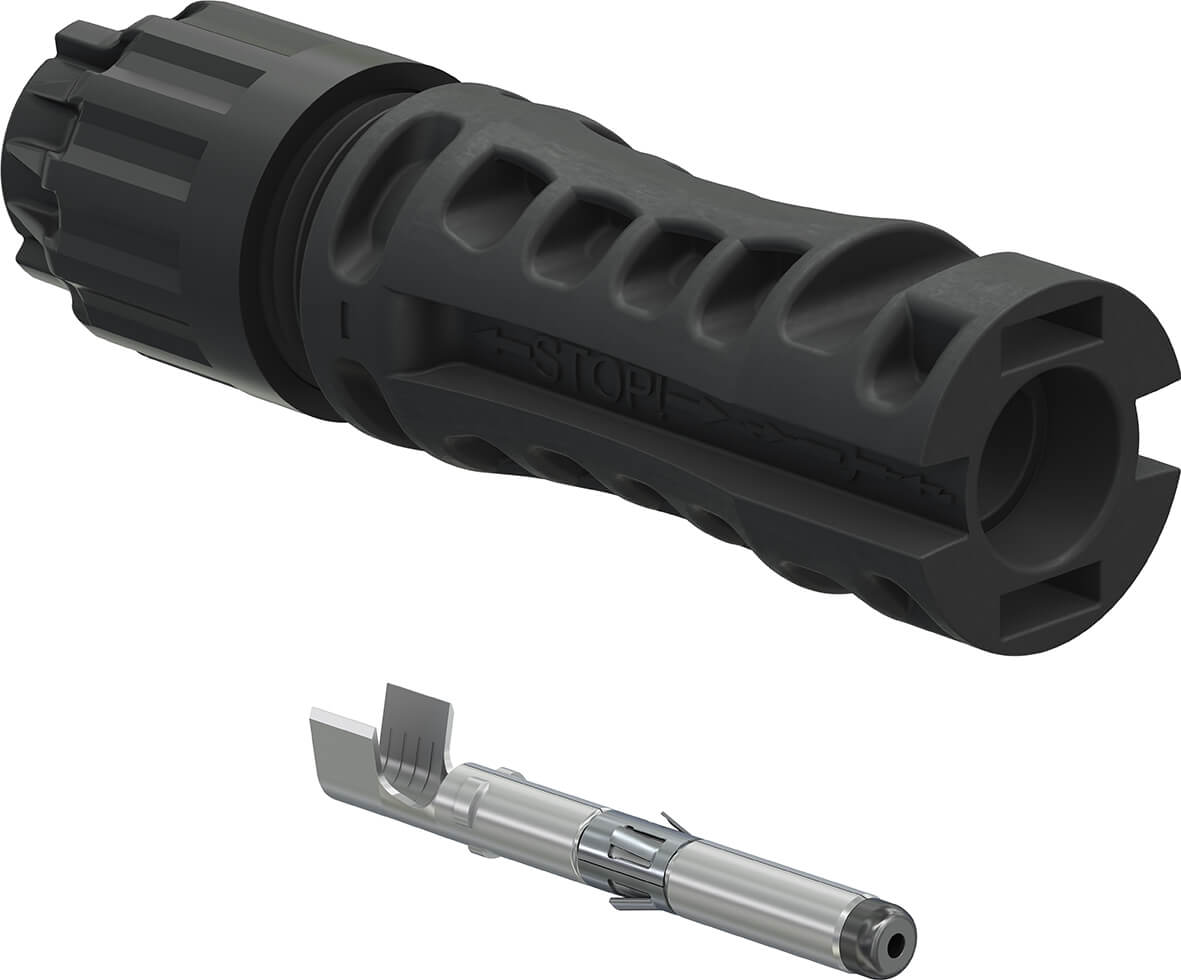

Stäubli MC4-Evo stor plug 4-6 mm², Da 4.7-6.4 mm
| Type of manufacturer: | PV-KST4-EVO ST/6I |
|---|---|
| Manufacturer Art. No.: | 32.0263P0010 |
| Art. Nr.: | 14086 |
| Pieces per package unit: |
|
| Accessory type: | Plugs |
Prices are only visible to business customers upon successful registration.
- New
Available from stock
Product number:
14086
Description
Stäubli Multi-Contact MC4-Evo stor connectors for system voltages up to 1,500 V DC and cables with a cross-section of 4–6 mm²
Stäubli’s MC4-Evo stor connectors are a cost-effective, high-quality solution for connecting hybrid inverters to BESS (battery energy storage systems). The contact surface, rotated by 45°, prevents incorrect connection between the BESS and the PV string.
The MC4-Evo stor is suitable for Photovoltaic systems with DC voltages of up to 1,500 V. The connectors are available for cable cross-sections of 4–6 mm² / 10–12 AWG. The connectors meet the requirements of IEC 61984:2008 (Connectors – Safety requirements and tests) for general low-voltage DC applications.
The scope of delivery includes the housing and the inner part.
MC4-Evo stor is not plug-compatible with MC4 or MC4-Evo 2.
Product benefits
- Meets the requirements of IEC 61984:2008
- TÜV certification in accordance with IEC 62852:2014 in combination with suitable PV cables
- UL certification in accordance with 6703:2014 in combination with suitable PV cables
- No incorrect connection is possible on the DC side of the Inverter
- Proven technical performance of the MC4-Evo 2
Product features Stäubli MC4-Evo stor connector 4–6 mm², Da 4.7–6.4 mm
- Cable cross-section (conductor): 4 or 6 mm²
- Cable outer diameter: 4.7–6.4 mm
- Rated voltage: 1,500 V DC
- Rated current (30°C) for 4 mm² cable cross-section: 42 A
- Rated current (30°C) for 6 mm² cable cross-section: 47 A
- Ambient temperature: -40 °C to +85 °C
- Protection class when plugged in: IP 65
Scope of delivery
- Stäubli MC4-Evo stor connector (housing + inner part)
-
