Stäubli solar cable extension MC4-Evo 2A, 4 mm², 10 m

Type of manufacturer: PV-K4APAR/PV-EVO2-BI/PV-EVO2-SI/10M
Manufacturer Art. No.: 13002843-10M
Art. Nr.: 12224
Pieces per package unit:
  • 100 per carton
Accessory type: DC solar cable
Prices are only visible to business customers upon successful registration.
Product number: 12224
Prices are only visible to business customers upon successful registration.
Product number: 12224
Description

Stäubli solar cable extension MC4-Evo 2A, 4 mm², 10 m

The Stäubli MC4-Evo 2A cable assembly offers a reliable and efficient solution for connecting PV components. These DC cable extensions are certified according to IEC 62930 and ensure safe power transmission at a rated voltage of up to 1500 V DC. Thanks to the robust design and high-quality materials, including MC4-Evo 2A connectors, these cables are ideal for demanding environments and guarantee a long service life.

Various lengths (2 m, 5 m & 10 m) and cross-sections (4 mm² & 6 mm²) at Memodo!

Product advantages

  • Certified according to IEC 62930 for maximum safety
  • Suitable for rated voltages up to 1500 V DC
  • Robust design for extreme temperatures (-40 °C to +85 °C)
  • High reliability thanks to original Stäubli connectors
  • Versatile application options with various lengths (2, 5 & 10 m) and cross-sections (4 & 6 mm²) at Memodo
  • Ideal for professional PV systems and industrial applications

Specifications

  • Connector: MC4-Evo 2A
  • Rated voltage: DC 1500 V
  • Conductor cross-section: 4 mm²
  • Ambient temperature range: -40 °C to +85 °C (IEC and UL)
  • Temperature range for transport/storage: -30 °C to +60 °C
  • Relative humidity for transport/storage: < 70 %
  • Certification: IEC 62930, UL6703
  • Safety note: Do not disconnect under load
  • Plug-in compatible with the original MC4 connector family.
  • Matching accessories

    • Stäubli MC4 plug, 4-6 mm² I, diameter 5-6 mm
      • Type of manufacturer: PV-KST4/6I-UR
      • Art. Nr.: 338
    • Stäubli MC4-EVO ready connector 4-6 mm², Da 5.5 – 7.5 mm
      • Type of manufacturer: PV-KST-EVO READY
      • Art. Nr.: 11665
    • Stäubli MC4 plug, 4-6 mm² II, diameter 5.9-8.8 mm
      • Type of manufacturer: PV-KST4/6II-UR
      • Art. Nr.: 340
    • Stäubli MC4 socket, 4-6 mm² I, diameter 5-6 mm
      • Type of manufacturer: PV-KBT4/6I-UR
      • Art. Nr.: 339
    • Stäubli MC4 socket, 4-6 mm² II, diameter 5.9-8.8 mm
      • Type of manufacturer: PV-KBT4/6II-UR
      • Art. Nr.: 341
    • Stäubli MC4-EVO 2 plug 4/6 mm², Da 6.4 – 8.4mm
      • Type of manufacturer: PV-KST4-EVO 2A/6II
      • Art. Nr.: 8987

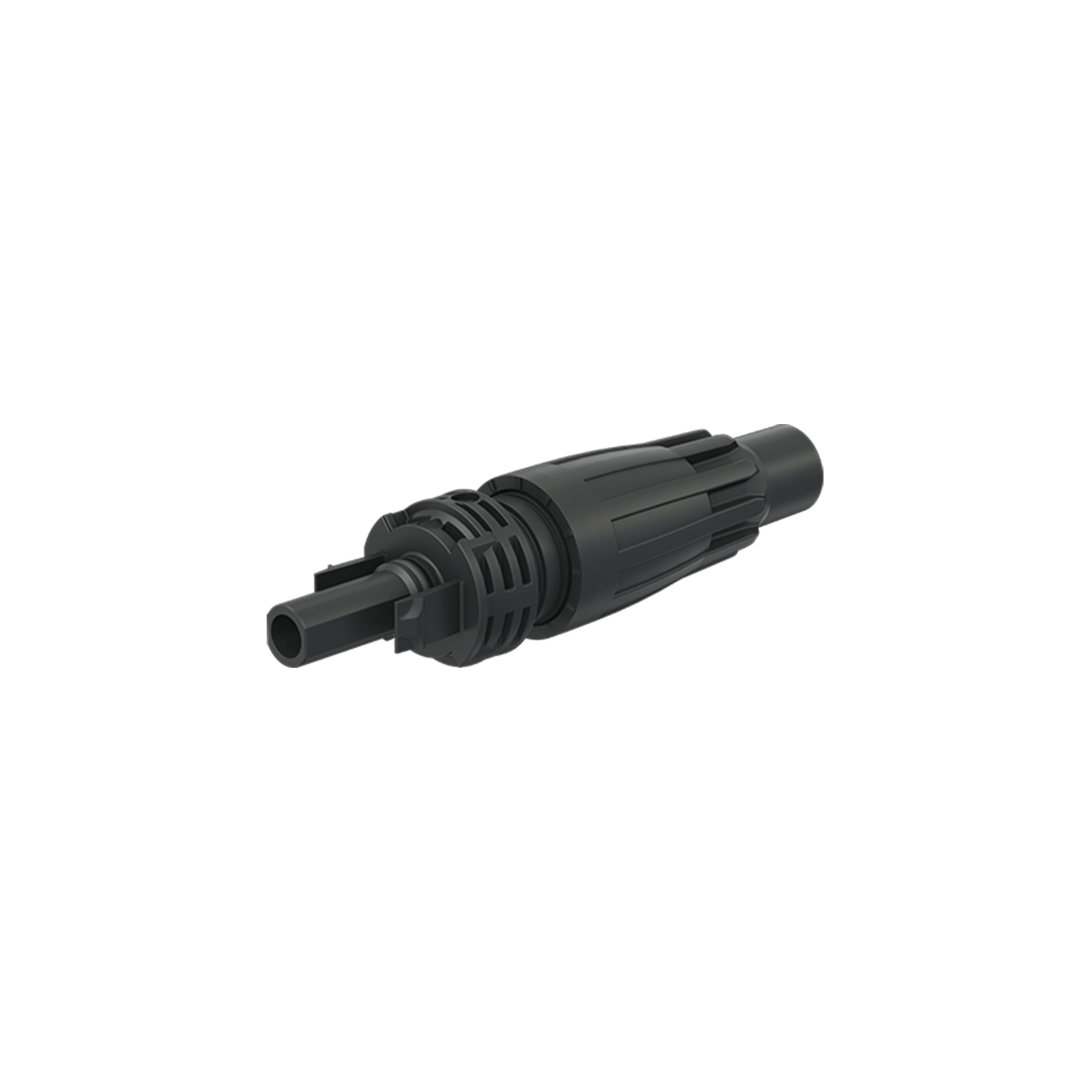

    • Stäubli MC4-EVO ready socket 4-6 mm², Da 5.5 – 7.5 mm
      • Type of manufacturer: PV-KBT-EVO READY
      • Art. Nr.: 11666
    • Stäubli MC4-EVO 2 socket 4-6 mm², diameter 6.4 – 8.4 mm
      • Type of manufacturer: PV-KBT4-EVO 2A/6II
      • Art. Nr.: 8982
