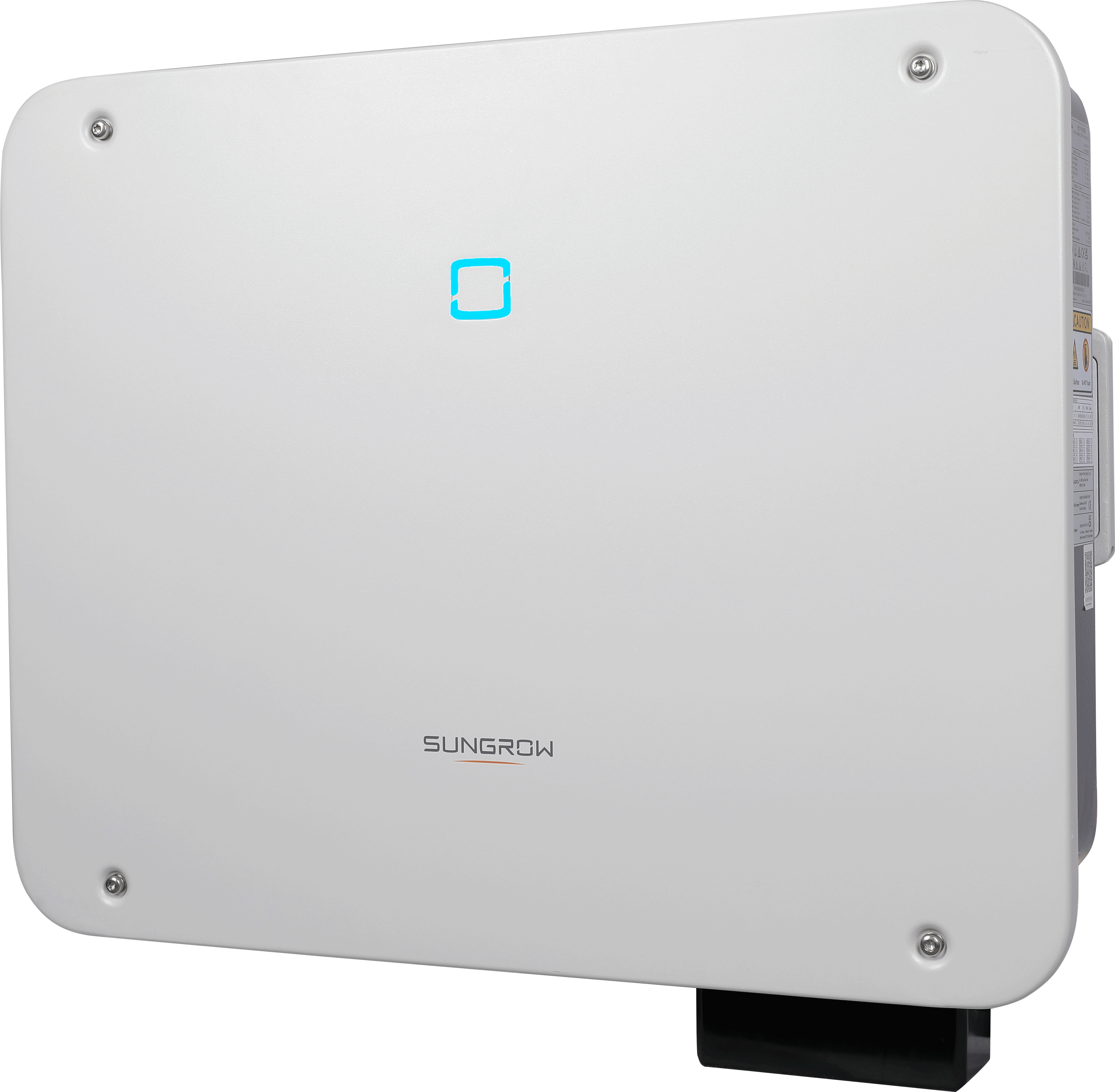

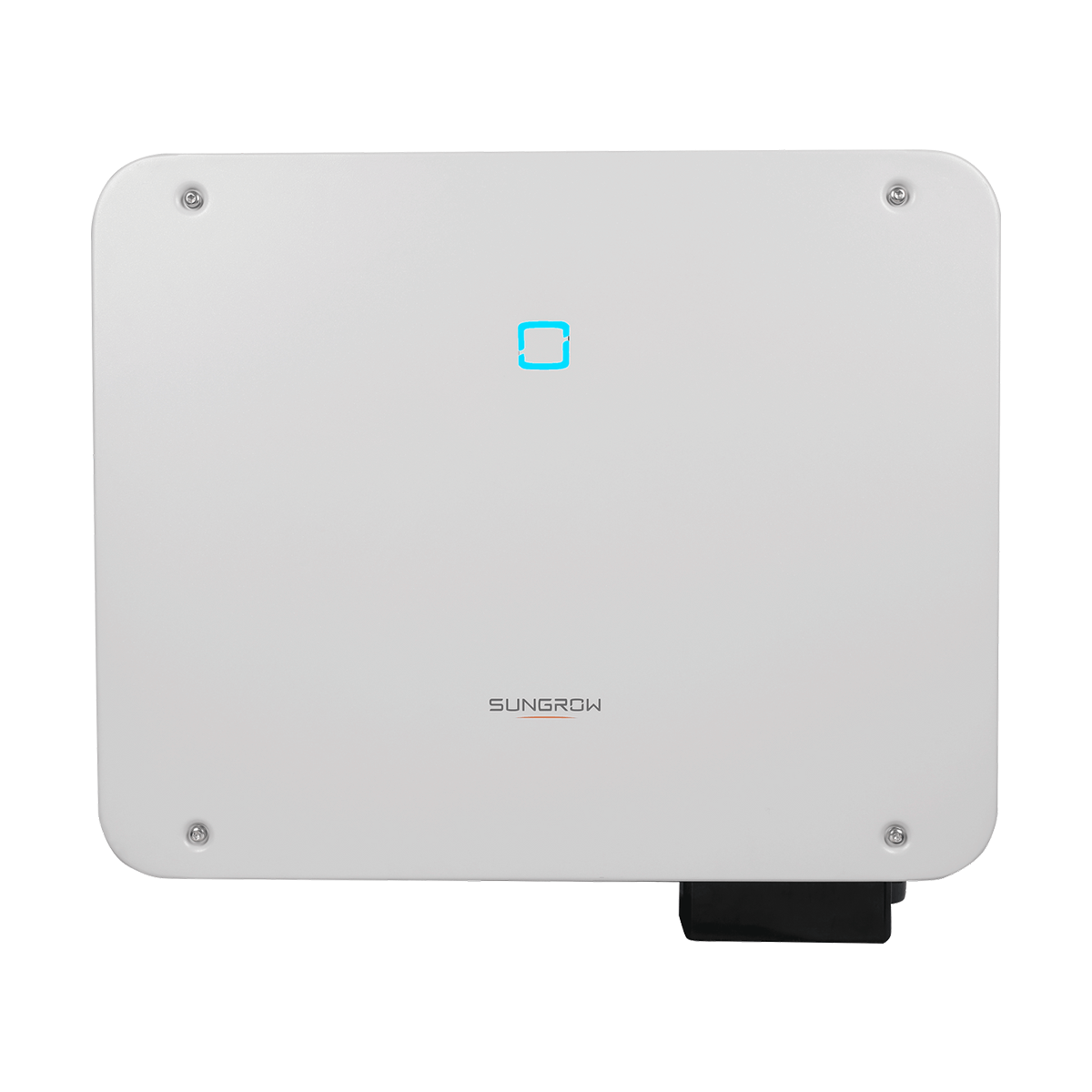

Sungrow & Sungrow SG50CX-P2 V21
| Type of manufacturer: | SG50CX-P2 V21 |
|---|---|
| Manufacturer Art. No.: | ASG02270 |
| Art. Nr.: | 16076 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 4 |
| AC power: | 50 kW |
| Warranty: | 5 years |
| Communication: | RS485, WiFi und Ethernet optional |
| MPP voltage range: | 160-1000 Volt |
- New
Sungrow SG50CX-P2 – the perfect Inverter for your project
The CX-P2 series is not compatible with the EyeM4 dongle
In Austria, please check local approval requirements!
Warranty extensions with the following details:
Company details (address, VAT number and contact person)
Inverter type
Inverter
serial number Duration of the extended
warranty Request directly from servicecommercialdistribution@sungrow-emea.com.
The next-generation Sungrow commercial inverter is here! The new SG33-50CX P2 series focuses on standardisation whilst offering plenty of innovation. The SG50CX-P2 model features 4 MPPT trackers with EVO2 DC connections. Thanks to 30 A DC input per MPPT, all power classes can be integrated.
Product benefits
- Status LED
- Input voltage range of 160–1000 V
- High efficiency of up to 98.3%
- Temperature-controlled active cooling
- DC overvoltage protection, Type 1+2
- AC overvoltage protection, Type 2
- External NA protection solution with mains monitor in accordance with VDE 4105 possible
- Arc fault circuit interrupter (AFCI)
Product features of the Sungrow SG50CX Premium
- 50 kVA, 3-phase
- 4 MPP trackers

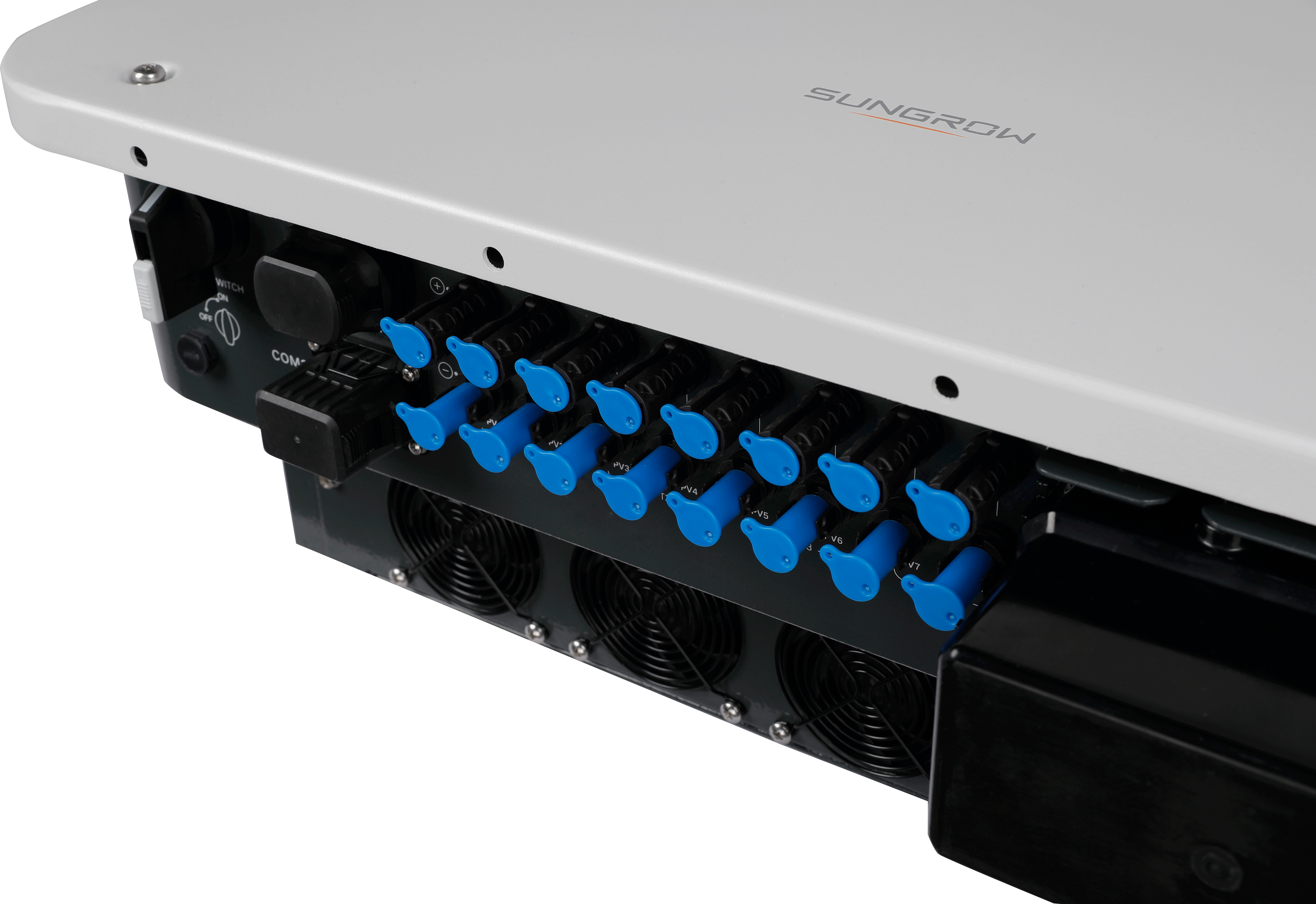

- 2 MC4 inputs per MPPT
- 30 A per MPPT
- 1 x RS485
- Communication & monitoring via optional Sungrow WiNet-S communication dongle
- Dimensions: 645 × 575 × 245 mm
- Protection class: IP66
- Weight: 39.5 kg
The perfect choice for medium and large-scale installations, such as those often found in commercial or agricultural settings.
-
