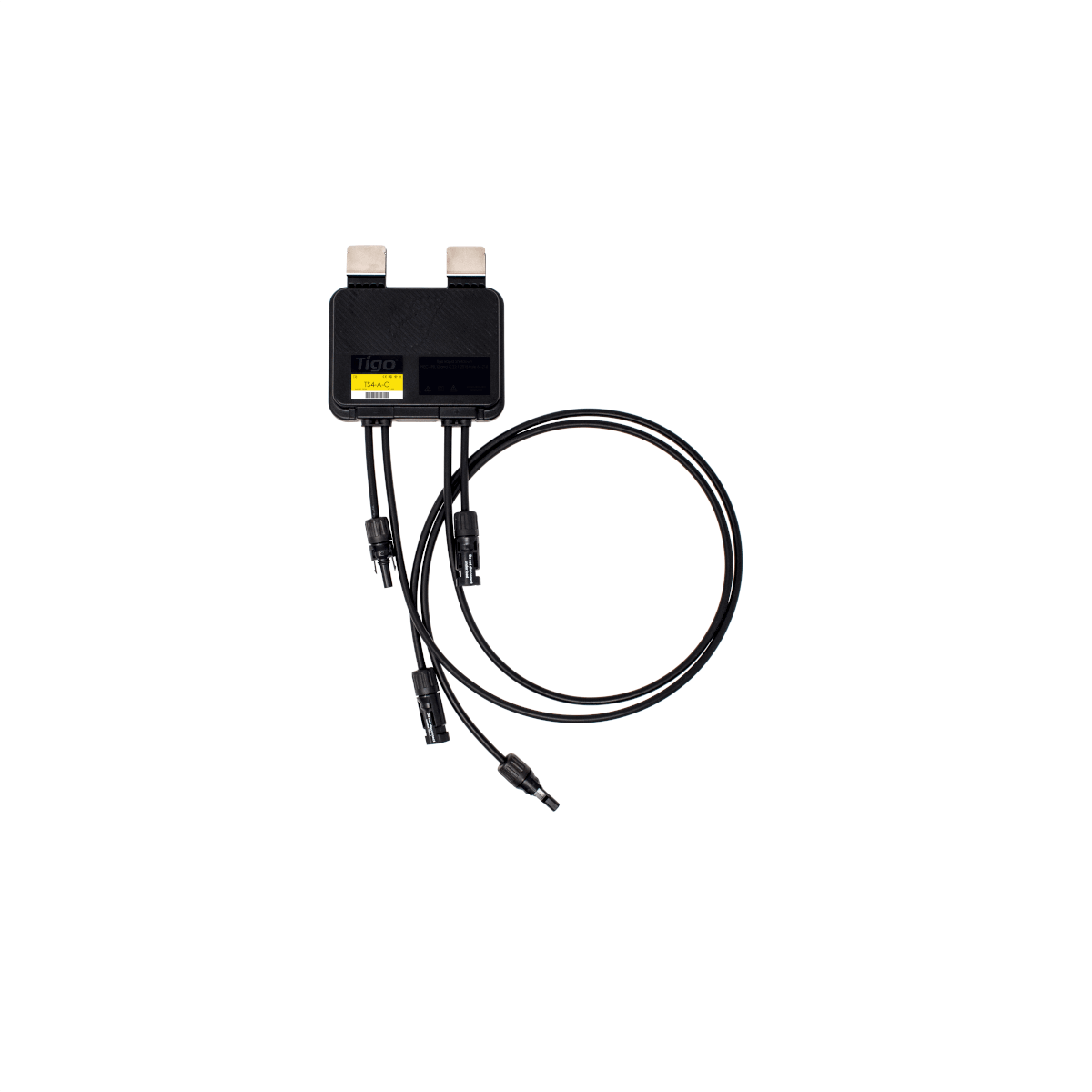

Tigo TS4-A-O (725 W)

Tigo TS4-A-O DC optimiser for modules with a power output of up to 725 W

The Tigo TS4-A-O optimiser allows the entire system to be monitored and optimised at module level. Module-level optimisation also enables the installation of systems with partial shading or varying module orientations. Production data is visualised, and any impairments caused by soiling or shading are also displayed. It is also possible to safely de-energise the entire module array. The choice is yours: you can either fit only the affected modules with module optimisers or the entire system.

When using optimisers, compatibility with the relevant Inverters must be checked and the specific technical requirements met. You can find a list of tested Inverters here.

Product benefits

• All the benefits of optimisation
• Greater PV design flexibility and therefore more energy per unit area
• Module-level monitoring minimises operating costs over the entire lifetime of the system
• Greater safety thanks to rapid shutdown at module level
• Faster installation
• 25-year manufacturer’s warranty upon registration on the Tigo Cloud

Product features of the TS4-A-O DC optimiser

• Maximum module power: 725 W
• Maximum input current: 16 A
• Short-circuit current: 22 A Isc
• Connector: MC4
• Optimisation for complex roof structures and partial shading
• Only affected modules can be optimised
• Monitoring system for comprehensive module-level monitoring (integration of the Inverter and weather station also possible)
• Module-level shutdown (in accordance with NEC 2017)
• Simple inventory management. The TS4 is suitable for all system sizes

If the system is to be monitored or disconnected, the separately available Tigo CloudConnect Advance Kit communication unit (item no. 14033) is required.
