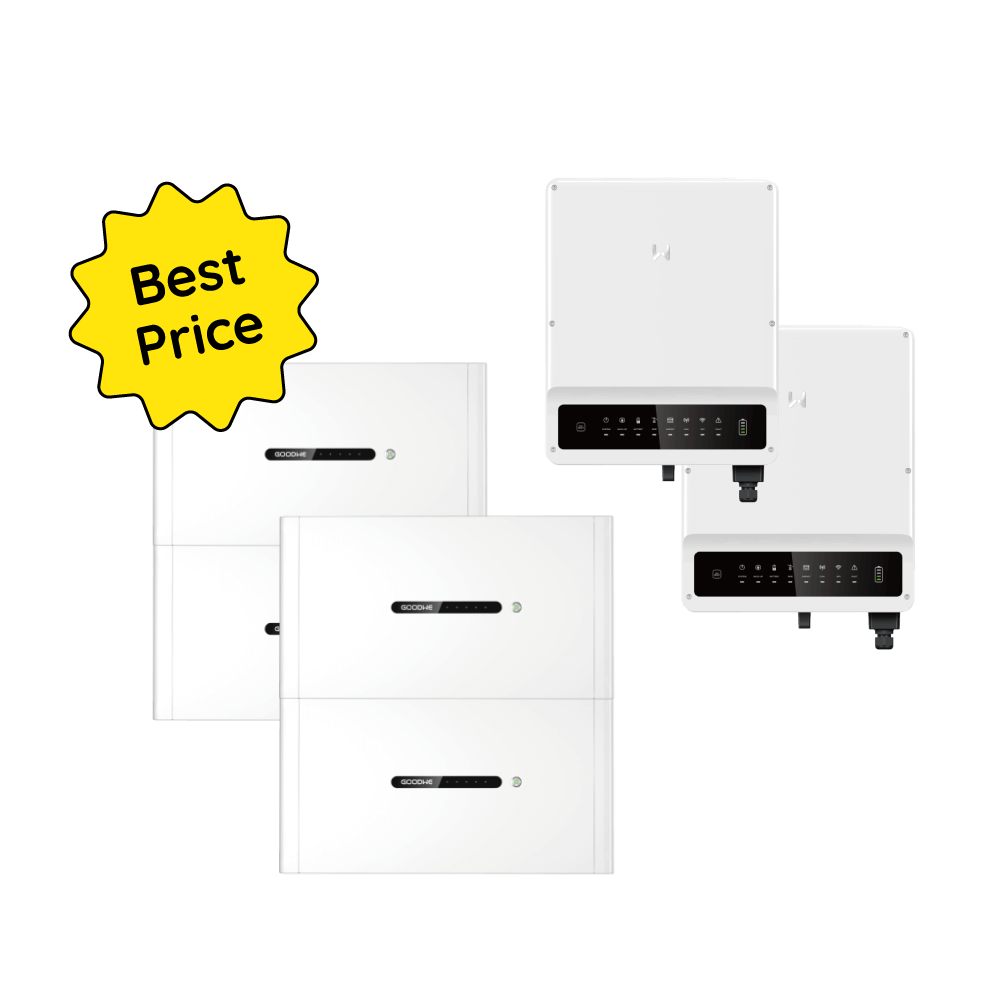

2x GoodWe Lynx D 10 kWh + GW5KN-ET + GW10KN-ET
| Art. Nr.: | 13749 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | GoodWe ET Plus 16A - GW5KN-ET; GoodWe ET Plus 16A - GW10KN-ET |
| Net capacity: | 20 kWh |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | 2x GoodWe Lynx D - Batteriespeicherturm 10 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- % Sale
- TIP
- Sale
Available from stock
Product number:
13749
-
-
{ "id": "36e89c7e623753aeab1b2e14b45faaa1", "item_brand": "", "item_name": "GoodWe Lynx D base plate", "item_id": "12788", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "36e89c7e623753aeab1b2e14b45faaa1" } }
-
{ "id": "0cc7b5760b7254bd94f2272e7d5f5e4b", "item_brand": "", "item_name": "GoodWe Lynx D wall bracket", "item_id": "12787", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0cc7b5760b7254bd94f2272e7d5f5e4b" } }
-
Description
2x GoodWe Lynx D 10 kWh + GW5KN-ET + GW10KN-ET
The mounting system (base plate or wall bracket) does not ship with the battery and must be purchased separately. You'll need it for installation!
Item no. base plate: 12788
Item no. wall bracket: 12787
The package is a complete solution from the manufacturer consisting of two GoodWe Lynx D 10 kWh battery storage towers, the 3-phase GoodWe ET Plus 16A hybrid inverter GW5KN-ET, and a GoodWe ET Plus 16A hybrid inverter GW10KN-ET.
Package advantages
- 3-phase smart meter already included in the ET Plus Series 16A
- Reliable emergency power supply (switchover time < 10 ms)
- Up to 8 stackable battery modules (max. 40 kWh)
- Integration in the Sems portal
- High battery safety standard VDE 2510-50
- Individual modules can be replaced (mix of old and new modules)
Product features GoodWe Lynx D – LX D5.0-10
- Cell type: LiFePO4
- Usable battery capacity: 10 kWh
- Nominal voltage: Charging per battery module: 435 V; discharging: 380 V
- Nominal charging/discharging power: 6 kW
- Communication: CAN
- Temperature range: Discharging: -20°C to 53°C
- Temperature range: Charging: 0°C - 53°C
- Battery module retrofit possible
- Dimensions: 760 x 700 x 170 mm (H x W x D)
- Weight: 104 kg
- Protection category: IP 66
- Installation type: Floor-stacked / wall-mounted (base plate / wall mounting must be ordered separately)
Product features GoodWe ET Plus 16A – GW5KN-ET:
- Mains connection: 3-phase
- AC power: 5 kVA
- 5 kW emergency power via a separate output
- MPP tracker: 2
- String connections per MPPT: 1
- Max. input current per MPPT: 16 A
- Max. short-circuit current per MPPT: 21.2 A
- Communication: RS485, Wi-Fi (optional LAN)
- Potential-free contact available (programmable via SolarGo app) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- Wi-Fi module included
- Dimensions: 516 x 415 x 180 mm (HxWxD)
- Protection category: IP66
- Weight: 24.0 kg
Product features GoodWe ET Plus 16A – GW10KN-ET:
- Mains connection: 3-phase
- AC power: 10 kVA
- 10 kW emergency power via a separate output
- MPP tracker: 2
- String connections per MPPT: 1
- Max. input current per MPPT: 16 A
- Max. short-circuit current per MPPT: 21.2 A
- Communication: RS485, Wi-Fi (optional LAN)
- Potential-free contact available (programmable via SolarGo app) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- Wi-Fi module included
- Dimensions: 516 x 415 x 180 mm (HxWxD)
- Protection category: IP66
- Weight: 24.0 kg
Examples of use
- Optimization of self-consumption: Use the solar power generated during the day to charge your batteries and cover your energy needs at night
- Emergency power supply: Keep important devices and applications operational during power outages
- Cost efficiency: Charge your batteries at low electricity prices and save money during peak load times
Scope of delivery
- 4x GoodWe Lynx D – LX D5.0-10
- 1x GoodWe ET Plus 16A – GW10KN-ET including 3-phase smart meter
- 1x GoodWe ET Plus 16A – GW5KN-ET including 3-phase smart meter
Make your home independent of rising electricity prices and grid fluctuations — with the GoodWe Lynx D and ET Plus series! Get the perfect solution for greater efficiency and comfort.
