Alumero easySPEED Ballast Trough, Gravel 2475
| Manufacturer Art. No.: | 200107-2475 |
|---|---|
| Art. Nr.: | 16065 |
| Pieces per package unit: |
|
| Product type: | Accessories |
| Type of roof: | Flat roof |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16065
Description

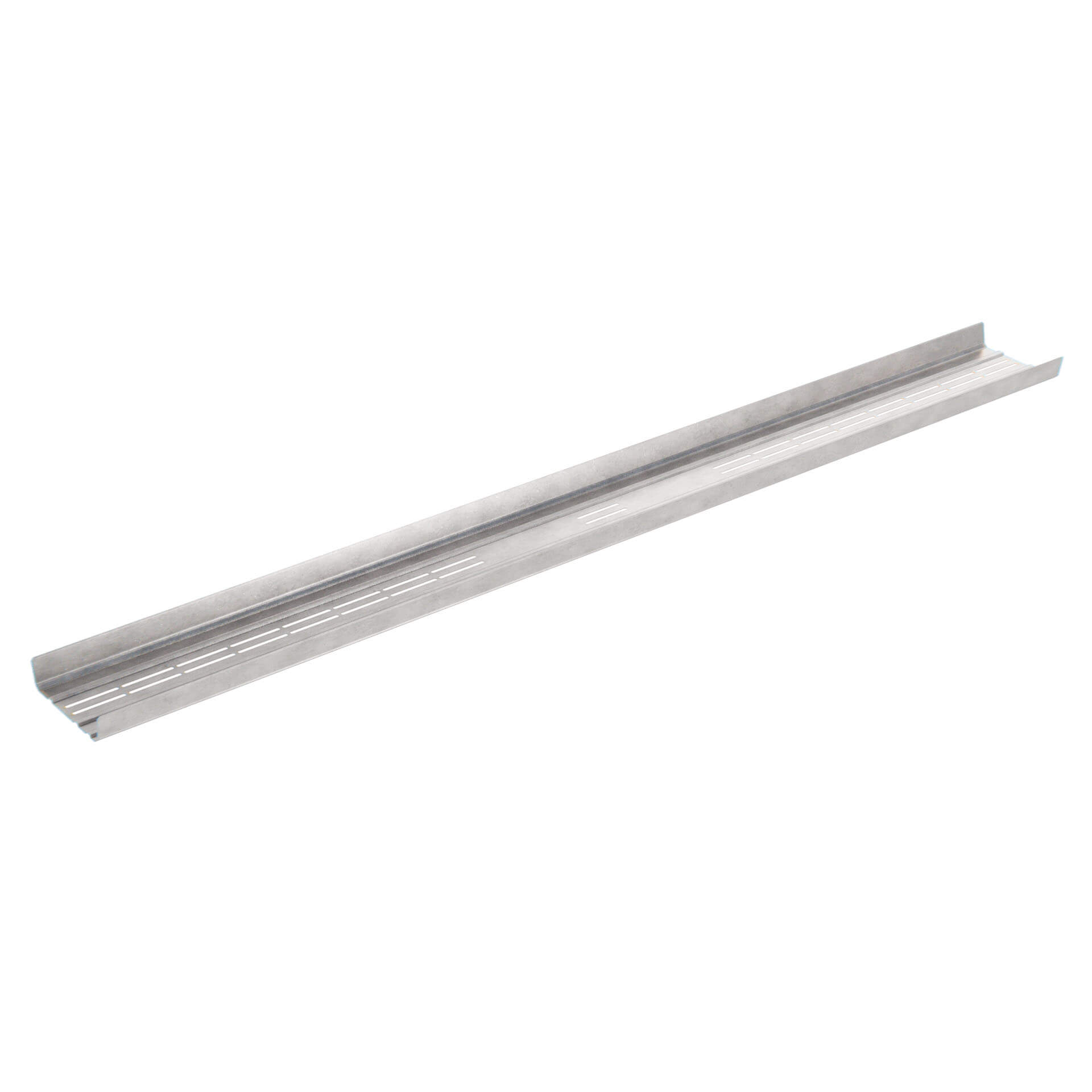

Alumero easySPEED Ballast Trough, Gravel 2475
The 2475 mm long gravel tray in the Alumero easySPEED 2 system holds the ballast, which secures the installation against wind without requiring any roof penetration. It is designed to hold loose gravel as ballast – a practical solution if there is already gravel on the roof or if concrete slabs are to be avoided. The tray is bolted to the base plate via the existing slotted holes.
Your benefits
- Ballasting without penetrating the roof – the roof membrane remains intact
- Designed for use with loose gravel as ballast; no need to handle heavy slabs
- Screwed to the base plate via existing slotted holes, no drilling required
- Steel with an aluminium-zinc coating
- Length 2475 mm – compatible with the panel layout from the project report
- Part of a system with a 25-year quality guarantee
Examples of use
- Ballasting the east-west layout in the easySPEED 2 system
- Gravel roofs where ballast is available on site
- Roofs where penetration is not permitted
Technical data
- Length: 2475 mm
- System: Alumero easySPEED 2 E/W
- Type of ballast: Gravel as loose ballast
- Material: Steel with aluminium-zinc coating
- Fixing: Screwed to the base plate via slotted holes
- Required shims: at least 1 per trough; 2 shims for ballast weighing over 64 kg
- Amount of ballast: project-specific, calculated using the Solar.Pro.Tool
- Manufacturer’s item number: 200107-2475
