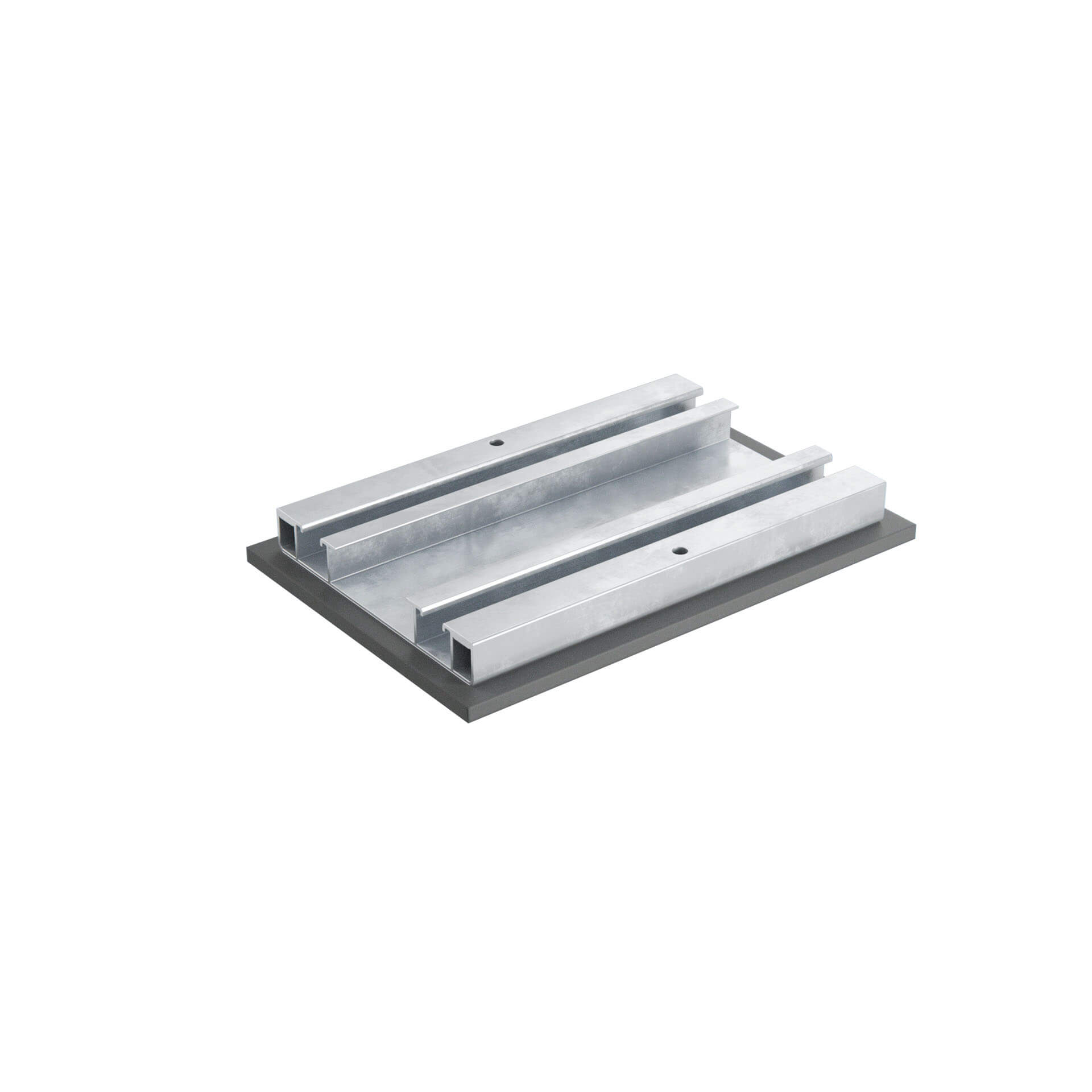

Alumero easySPEED shim plate

Manufacturer Art. No.:	200123-220
Art. Nr.:	16067
Pieces per package unit:	12 per carton 384 per pallet
Product type:	Elevation system
Type of roof:	Flat roof

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16067

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16067

Tech tip

The number required depends on the weight of the ballast, not on the size of the tray: for up to 8 ballast blocks or less than 64 kg, one support plate per tray is sufficient; for more than that, two are required. This is a manufacturer’s specification, not a recommendation – if there are too few plates, the ballast will exert pressure on the roofing membrane in specific areas. Take the ballast quantities from the Solar.Pro.Tool project report and work out the number of plates required before you place your order; otherwise, they’ll be missing on site precisely where the heaviest ballast is required.

Alumero easySPEED Spacer Plate 140x220

The 140 x 220 mm underlay plate is fitted beneath the ballast tray in the Alumero easySPEED 2 system. It distributes the weight of the ballast over a larger area, ensuring that the load does not exert pressure on the roofing membrane at any single point. Alumero stipulates that it must be used when ballast trays are fitted – it is therefore not an optional accessory, but an integral part of the installation.

Your benefits

Distributes the ballast load evenly across the roof membrane
Mandatory when using the manufacturer’s ballast trays
Fits into the easySPEED 2 system; no adjustments required
Clear quantity rule: two units for ballast loads exceeding 64 kg per tray

Examples of use

Placed beneath each ballast tray in the easySPEED 2 installation
Projects requiring heavy ballasting, where two sheets per tray are necessary
Roofing membranes that do not cope well with concentrated loads

Technical data

Dimensions: 140 x 220 mm
System: Alumero easySPEED 2
Function: Load distribution beneath the ballast tray
Quantity required: at least 1 piece per ballast tray
Requirements for heavy ballasting: 2 units per tray if there are more than 8 ballast stones or over 64 kg
Manufacturer’s item number: 200123-220
