Alumero easySPEED Support, Small
| Manufacturer Art. No.: | 200121 |
|---|---|
| Art. Nr.: | 16066 |
| Pieces per package unit: |
|
| Product type: | Elevation system |
| Type of roof: | Flat roof |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16066
Description

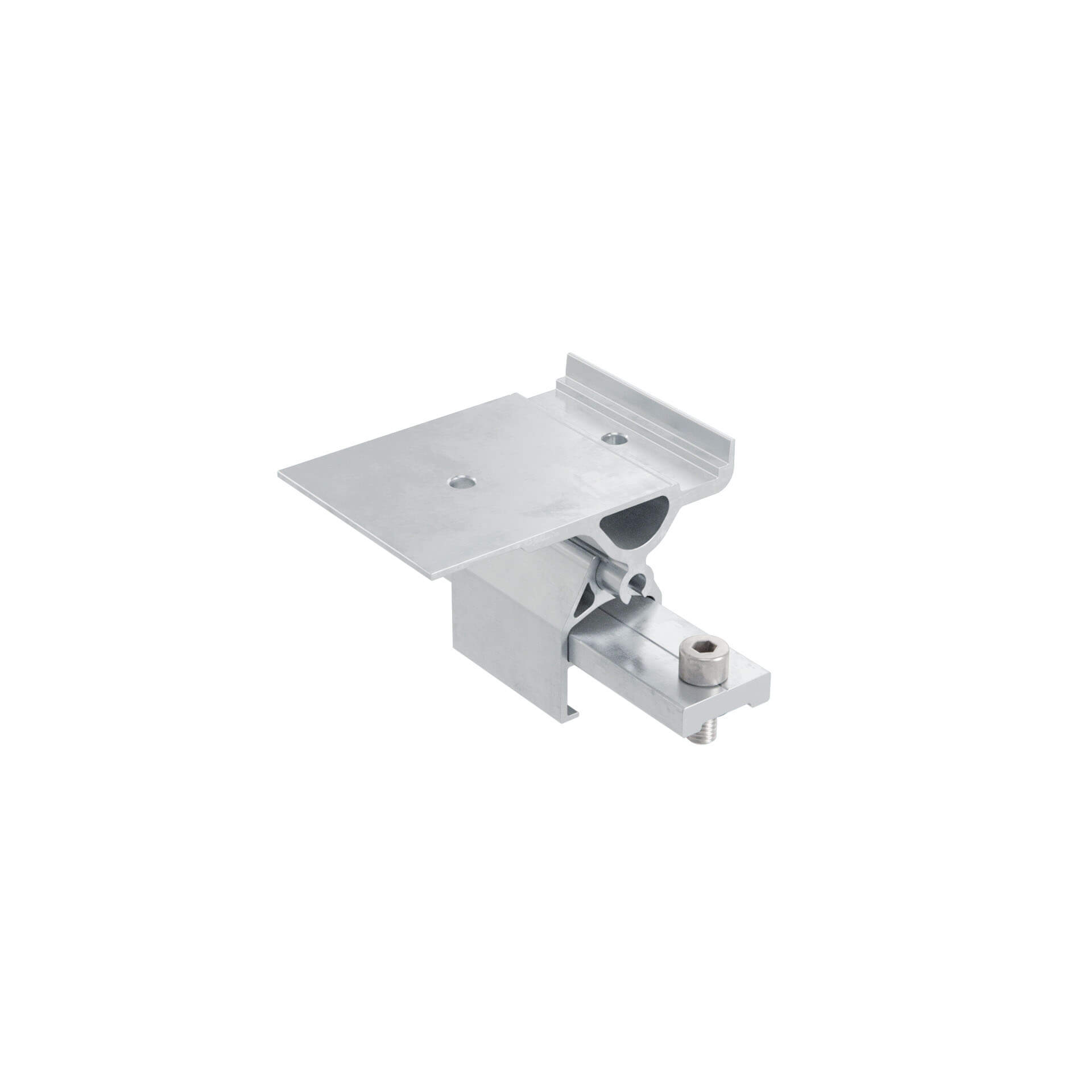

Alumero easySPEED small support
The small support is positioned in the Alumero easySPEED 2 system between the base plate and the profile, creating a module inclination of approximately 10° for east-west orientation. It is used as a start and end support and is always positioned at the end of the base plate. Together with the small double support and the large support, it forms the complete set of supports for the system.
Your benefits
- Creates a module tilt of around 10° without the need for additional components
- Start and end support in a single component
- Fits seamlessly into the easySPEED 2 system without any adjustments
- Load-bearing connecting parts made from aluminium EN AW 6063 T66 or EN AW 6005A T6
- Part of a system with a 25-year quality guarantee
Order now
Order the Alumero easySPEED small support directly here in the Memodo Shop. Make sure you choose the correct version: for green roofs, you need the taller easyGREEN small support, not this one.
Examples of use
- Start and end supports for the module row in the easySPEED 2 installation
- East-west layout on membrane, bitumen, concrete and gravel roofs
- Add-ons and replacement orders for existing easySPEED 2 arrays
Technical data
- System: Alumero easySPEED 2 E/W
- Function: Spacer between base plate and profile; start and end supports
- Installation position: always at the end of the base plate
- Module tilt produced: approx. 10°
- Material of load-bearing connecting parts: Aluminium EN AW 6063 T66 / EN AW 6005A T6
- Orientation: East-West
- Variant for green roofs: easyGREEN small support, item 200151, with approx. 300 mm clearance
- Manufacturer’s item number: 200121
