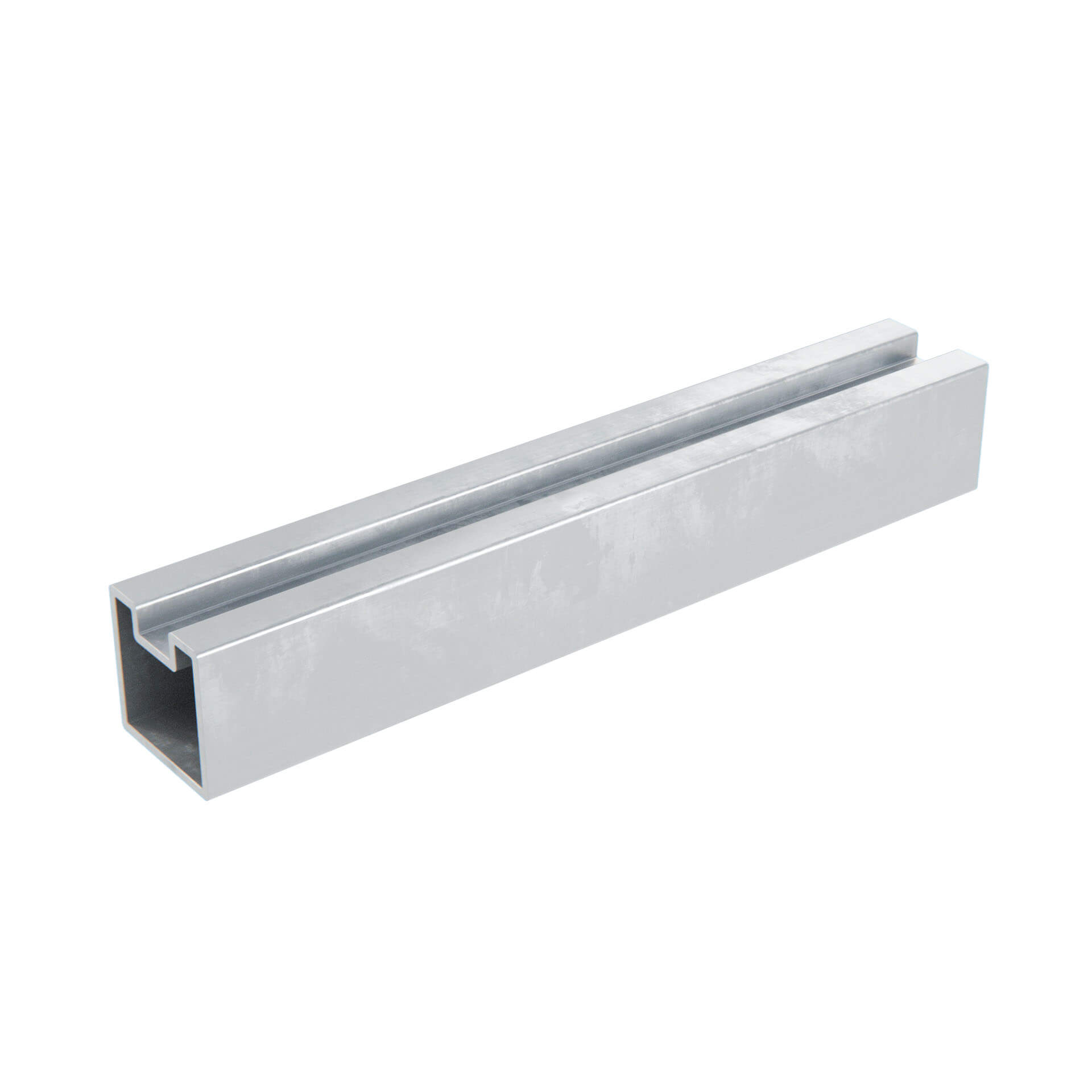

Alumero easySPEED cross-section 1980

Manufacturer Art. No.:	200128-1980
Art. Nr.:	16138
Pieces per package unit:	10 per carton 250 per pallet
Product type:	Mounting rails
Type of roof:	Flat roof

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16138

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16138

Tech tip

The length of the cross-section is determined by the module length, and Alumero specifies this explicitly: 1980 mm for module lengths up to 1800 mm, 2600 mm for lengths up to 2441 mm, 3,700 mm for two modules, each up to 1,762 mm in length. For the 6,300 series, Alumero does not specify any module length assignments in the product data – in this case, the design must be finalised before ordering. Check the allocation afresh for each project: a profile that is too short cannot be stretched, whilst one that is too long creates an overhang that catches the wind. Orders are placed in bundles of 10 – calculate the number of bundles based on the layout plan, not on the number of modules.

Alumero easySPEED cross-section 1980

The cross-profile connects the base plates transversely, thereby forming the plane on which the module clamps are mounted. According to Alumero, this 1980 mm length is intended for module lengths of up to 1800 mm. The material is EN AW 6063 T66 aluminium with a mill-finish surface.

Your benefits

Connects the base plates transversely – supports the module clamps
For module lengths up to 1800 mm
Aluminium EN AW 6063 T66, mill finish
0.83 kg per piece, supplied in bundles of 10
Compatible with profile holder 200129 for fixing to the base plate

Order now

Are you planning an easySPEED 2-section system? Order the cross profile 1980 directly here in the Memodo Shop. The number of profiles required is determined by the layout plan.

Technical data

Length: 1980 mm
Use: Connecting the base plates transversely
Module allocation: For module lengths up to 1800 mm
Material: Aluminium EN AW 6063 T66
Surface finish: extrusion-finished
Weight: 0.83 kg per piece
Manufacturer’s packaging: 10 pieces per bundle, 250 pieces per Euro pallet
Origin: EU / Poland
Product code: 76169990
Manufacturer’s item number: 200128-1980
