Alumero easySPEED terminal block 30

Manufacturer Art. No.:	200305-30
Art. Nr.:	16157
Pieces per package unit:	50 per carton 5400 per pallet
Product type:	Module clamps
Type of roof:	Flat roof

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16157

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16157

Tech tip

The earthing pin is the reason why this terminal is supplied pre-assembled – and also the reason why it must be fitted with care. When tightened, the pin penetrates the anodised layer of the module frame and profile, thereby establishing equipotential bonding. This gives rise to two rules. Firstly: use a torque wrench, not just your judgement – the torque value is specified in the Alumero installation instructions. Too little torque and the pin will not penetrate the coating; too much, and you will deform the module frame. Secondly: when re-installing a terminal that has already been tightened, position it in a different place or use a new one – a pin that has already been pressed in will no longer make a fresh contact in the same notch. The equipotential bonding via the pins does not replace a lightning protection system, but connects the metal parts to one another.

Alumero easySPEED End Clamp 30

The End Clamp 30 secures the edge module to the cross-member of the easySPEED-2 system. It is supplied pre-assembled and fitted with earthing pins for equipotential bonding – one fewer component in the installation process and one fewer step on the roof. Suitable for a module frame height of 30 mm. The material is aluminium EN AW-6063 T66 with A2-70 stainless steel, with a mill-finish surface.

Your benefits

Supplied pre-assembled – unpack, position, tighten
Earthing pins for equipotential bonding already integrated
For 30 mm module frame height
Aluminium EN AW-6063 T66, stainless steel A2-70 fasteners
50 g each, manufacturer’s packaging: 50 pieces per box

Order now

Are you installing an easySPEED-2 flat roof system? Order the easySPEED end clamp 30 directly here in the Memodo Shop. The quantity required is based on the number of modules and the installation layout.

Technical data

Type: End Clamp 30
Module frame height: 30 mm
Material: Aluminium EN AW-6063 T66, stainless steel A2-70
Surface finish: extrusion-finished
Equipotential bonding: pre-fitted earthing pins
Weight: 50 g per piece
Manufacturer’s packaging: 50 pieces per box, 5,400 pieces per Euro pallet
Origin: EU / Poland
Product tariff number: 76161000
Manufacturer’s item number: 200305-30

Matching accessories
New

Alumero easySPEED Cross-section 3700

Type of manufacturer: 200128-3700

+ expand

Art. Nr.: 16140

Sign up to view the prices

{ "id": "2d83e209368b5549b2303d4dbac4fcf2", "item_brand": "", "item_name": "Alumero easySPEED Cross-section 3700", "item_id": "16140", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2d83e209368b5549b2303d4dbac4fcf2" } }

New

Alumero easySPEED Cross-section 6300

Type of manufacturer: 200128-6300

+ expand

Art. Nr.: 16141

Sign up to view the prices

{ "id": "5ed83e1ee3815765b0bdf03a863deb1f", "item_brand": "", "item_name": "Alumero easySPEED Cross-section 6300", "item_id": "16141", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5ed83e1ee3815765b0bdf03a863deb1f" } }

New

Alumero easySPEED profile holder

Type of manufacturer: 200129

+ expand

Art. Nr.: 16142

Sign up to view the prices

{ "id": "67385ff2415a5a9ba8fc89b0dd30f9c6", "item_brand": "", "item_name": "Alumero easySPEED profile holder", "item_id": "16142", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "67385ff2415a5a9ba8fc89b0dd30f9c6" } }

New

Alumero easySPEED Centre Clamp 30–40

Type of manufacturer: 200302-30-40

+ expand

Art. Nr.: 16156

Sign up to view the prices

{ "id": "6a78a216269d50aba97d7ab8c04a2279", "item_brand": "", "item_name": "Alumero easySPEED Centre Clamp 30–40", "item_id": "16156", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6a78a216269d50aba97d7ab8c04a2279" } }

New

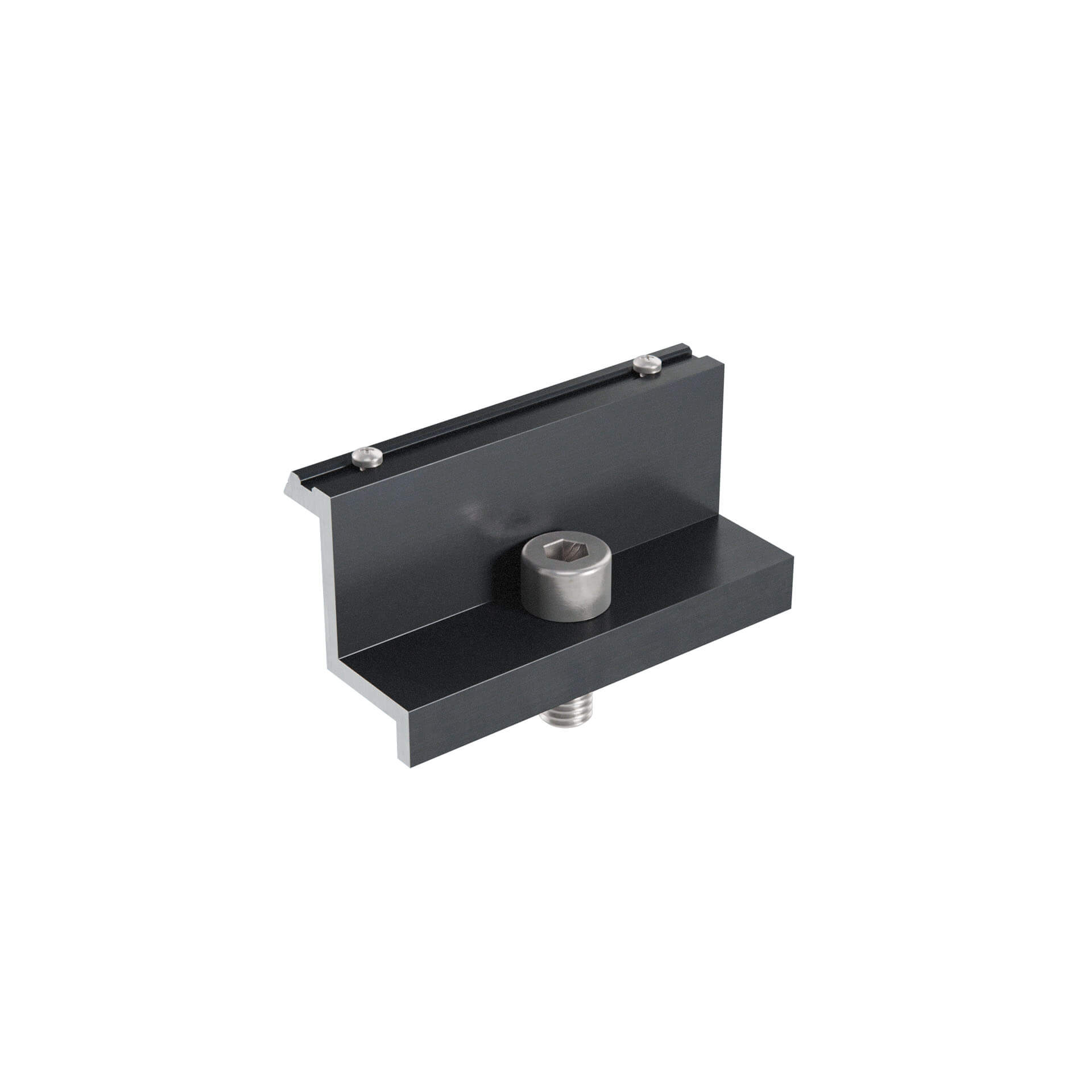

Alumero easySPEED terminal block 30, black

Type of manufacturer: 200395-30

+ expand

Art. Nr.: 16160

Sign up to view the prices

{ "id": "965d91c81c49543b93a5bccf860f1f54", "item_brand": "", "item_name": "Alumero easySPEED terminal block 30, black", "item_id": "16160", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "965d91c81c49543b93a5bccf860f1f54" } }

New

Alumero easySPEED Cross-section 2600

Type of manufacturer: 200128-2600

+ expand

Art. Nr.: 16139

Sign up to view the prices

{ "id": "b88b5b67b5a754f2914ddfbd75e65299", "item_brand": "", "item_name": "Alumero easySPEED Cross-section 2600", "item_id": "16139", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b88b5b67b5a754f2914ddfbd75e65299" } }

New

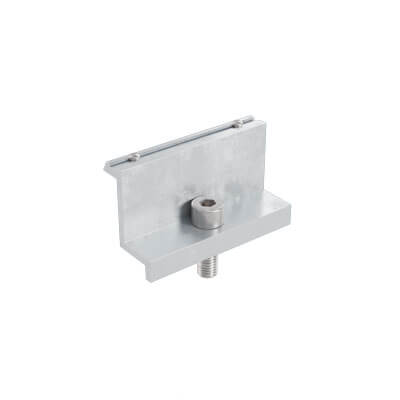

Alumero easySPEED terminal block 35
