Alumero easySPEED terminal block 30, black

Manufacturer Art. No.:	200395-30
Art. Nr.:	16160
Pieces per package unit:	50 per carton 5400 per pallet
Product type:	Module clamps
Type of roof:	Flat roof

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16160

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16160

Tech tip

The earthing pin is the reason why this terminal is supplied pre-assembled – and also the reason why it must be fitted with care. When tightened, the pin penetrates the anodised layer of the module frame and profile, thereby establishing equipotential bonding. This gives rise to two rules. Firstly: use a torque wrench, not just your judgement – the torque value is specified in the Alumero installation instructions. Too little torque and the pin will not penetrate the coating; too much, and you will deform the module frame. Secondly: when re-installing a terminal that has already been tightened, position it in a different place or use a new one – a pin that has already been pressed in will no longer make a fresh contact in the same notch. The equipotential bonding via the pins does not replace a lightning protection system, but connects the metal parts to one another.

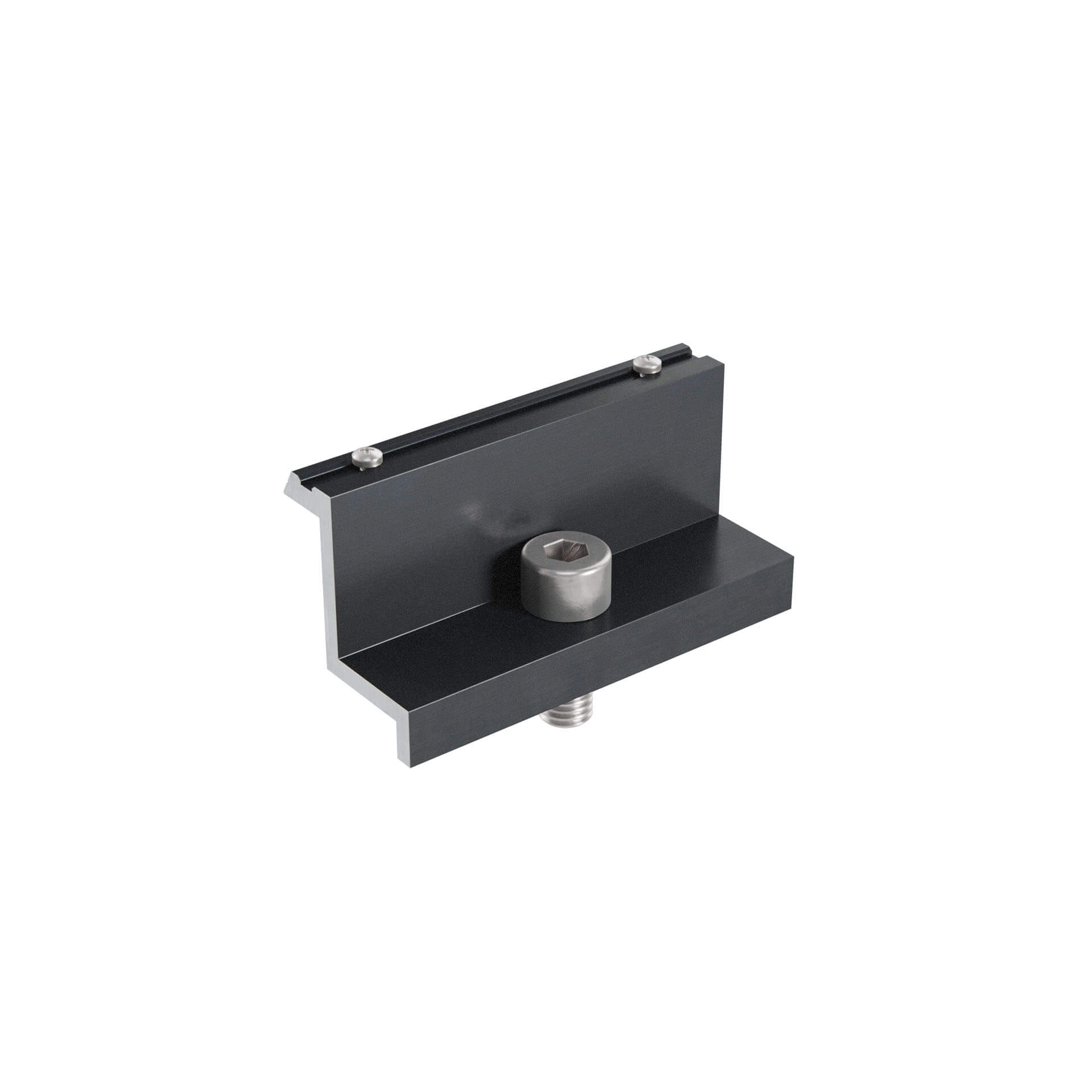

Alumero easySPEED End Clamp 30, black

The End Clamp 30 Black secures the edge module to the cross-profile of the easySPEED-2 system. It comes pre-assembled and fitted with earthing pins for equipotential bonding – one fewer component in the installation process and one fewer step on the roof. Suitable for a module frame height of 30 mm. Made from aluminium EN AW-6063 T66 with stainless steel A2-70, black anodised finish.

Your benefits

Supplied pre-assembled – unpack, position, tighten
Earthing pins for equipotential bonding already integrated
For 30 mm module frame height
Rods anodised to E6/C35 – black, visually flush with the module frame
Aluminium EN AW-6063 T66, stainless steel A2-70 fastenings
50 g per piece, manufacturer’s packaging: 50 pieces per box

Order now

Are you installing an easySPEED-2 flat roof system? Order the easySPEED end clamp 30 (black) directly here in the Memodo Shop. The quantity required is determined by the number of modules and the installation plan.

Technical data

Type: End clamp 30, black
Module frame height: 30 mm
Material: Aluminium EN AW-6063 T66, stainless steel A2-70
Surface finish: bar-anodised to E6/C35 (black)
Equipotential bonding: Pre-fitted earthing pins
Weight: 50 g per piece
Manufacturer’s packaging: 50 pieces per box, 5,400 pieces per Euro pallet
Origin: EU / Poland
Product tariff number: 76161000
Manufacturer’s item number: 200395-30
