Dyness Stack 100 - 20.48kWh
| Art. Nr.: | 14254 |
|---|---|
| Net capacity: | 19.46 kWh |
| Battery type: | High volt lithium |
| Warranty: | 10 Jahre |
| Solar battery type: | High voltage battery |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14254
-
-
{ "id": "e757011898fc5c43ac59bfef8eb17481", "item_brand": "", "item_name": "Dyness Stack 100 battery module with 5.12 kWh", "item_id": "13721", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e757011898fc5c43ac59bfef8eb17481" } }
-
Description

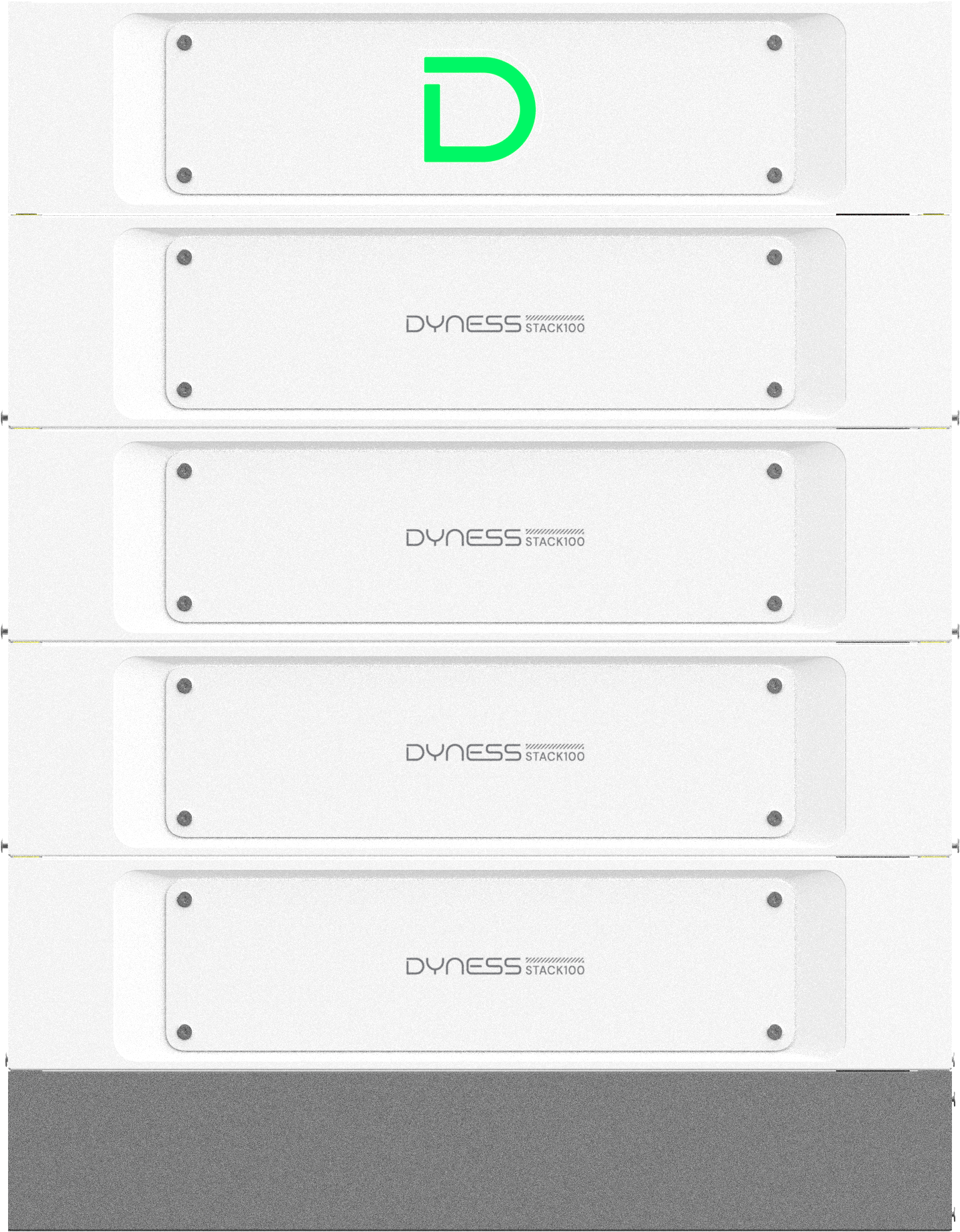

Dyness Stack 100 – 20.48 kWh
The Dyness Stack 100 – 20.48 kWh is a compact and modular high-voltage battery solution, ideal for private households as well as small businesses and industry. The system is based on safe and durable lithium iron phosphate (LiFePO4) technology and offers quick and easy installation thanks to its space-saving stackable design. Integrated safety features such as an aerosol fire suppression system and an intelligent battery management system ensure maximum safety and longevity.
Product benefits:
- High energy density with a compact, stackable design, ideal for limited space
- Integrated fire protection system with rapid response
- Low maintenance and long-lasting thanks to LiFePO4 cells and a 10-year warranty
- Compatible with common inverters such as GoodWe & Solis
- Intelligent BMS with automatic cell balancing, app monitoring and OTA updates
- Versatile for Self-consumption optimisation, load management and backup
Product features:
- Total capacity: 20.48 kWh (4 modules at 5.12 kWh each)
- Usable capacity: approx. 19.46 kWh (95% Depth of discharge)
- Nominal voltage: 204.8 V
- Weight: approx. 188 kg (for 4 modules)
- Dimensions (WxDxH): 591 × 390 × 768 mm
- Cycle life: >6000 cycles / 10-year warranty
- Operating temperature: -20 °C to +50 °C
- Protection class: IP20
- Cooling: active forced ventilation
- Communication: CAN, RS485, integrated Wi-Fi with app functionality and OTA updates
- Installation type: Stacking
The Dyness Stack100 thus offers a safe, efficient and future-proof storage solution for modern photovoltaic and energy systems!
