Kostal PLENTICORE BI 25 G3
| Type of manufacturer: | PLENTICORE BI 25 |
|---|---|
| Manufacturer Art. No.: | 12252993 |
| Art. Nr.: | 15948 |
| Pieces per package unit: |
|
| Phases: | 3 |
| AC power: | 25 kW |
| Warranty: | 10 years |
| Communication: | 2× LAN (RJ45), WLAN (2,4 GHz), Modbus RTU, digitale Ein-/Ausgänge |
| MPP voltage range: | 95?880 Volt |
| Backup power capable: | Full Backup |
| Model series: | PLENTICORE |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15948
-
-
{ "id": "7f24f206d1bc583883812049314ec882", "item_brand": "", "item_name": "Dyness Stack 100 - 25.60kWh", "item_id": "14255", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7f24f206d1bc583883812049314ec882" } } -
{ "id": "c7be37880cef50219263822e94ef5f14", "item_brand": "", "item_name": "Dyness Stack 100 - 76.80kWh", "item_id": "14297", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c7be37880cef50219263822e94ef5f14" } } -
{ "id": "3d834cf2c0aa56289345d19add527671", "item_brand": "", "item_name": "Kostal Piko CI 50 G2", "item_id": "14496", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3d834cf2c0aa56289345d19add527671" } }
-
Description

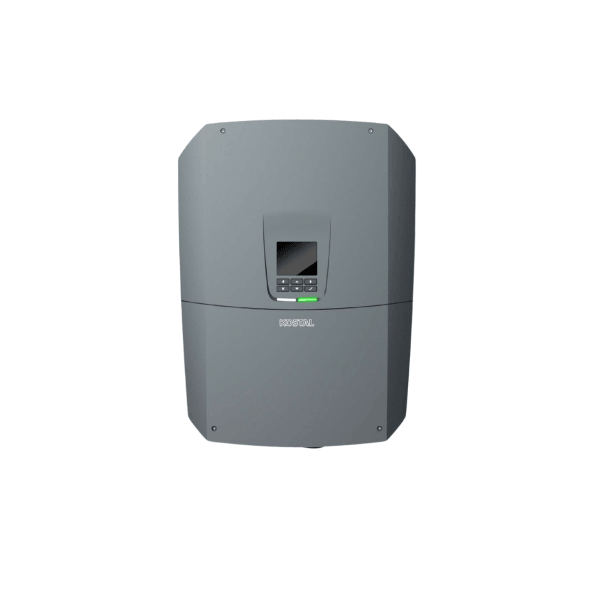

Kostal PLENTICORE BI 25 G3 – Battery Inverter, 25 kW
The PLENTICORE BI 25 G3 is a high-performance battery Inverter suitable for use in applications ranging from single-family homes to commercial premises. As an all-in-one solution, it is compatible with various high-voltage batteries and, thanks to three flexibly configurable DC connections, is suitable for both new installations and the retrofitting of existing PV systems. Battery storage systems ranging from 5 to 230 kWh can be connected, ensuring the system remains scalable at all times. With a maximum efficiency of 98.3% (Bat2AC and AC2Bat), the PLENTICORE BI 25 G3 operates extremely efficiently and minimises conversion losses.
Via an external changeover device, it is capable of providing backup power, thus ensuring a reliable emergency power supply in the event of a fault. Standard integrated control interfaces such as EEBus, Modbus/Sunspec (TCP) and digital inputs for power limitation in accordance with Section 14a of the German Energy Act make it suitable for modern smart home and grid requirements. Commissioning is carried out conveniently via the display, a smartphone web browser or the Kostal Solar App; thanks to AutoUpdate, the device is always kept up to date with the latest software.
Product benefits:
- All-in-one solution: compatible with various high-voltage batteries, activated ex-works
- Suitable for applications ranging from detached houses to commercial premises, and also ideal for retrofitting
- Flexibly configurable thanks to 3 DC connections and scalable battery sizes (5–230 kWh)
- Capable of providing backup power with an external switch-over device
- Charging rate of > 1C possible (depending on the Battery storage system)
- Peak shaving and time-controlled battery management for optimised power consumption
- Simple commissioning via a wizard on the display, smartphone or Kostal Solar App
- Safe installation thanks to a separate connection compartment with push-in terminals
- Smart Connected: EEBus, Modbus/Sunspec (TCP), free Solar Portal & app
- 10-year warranty (5 years’ Smart Warranty + 5 years’ Smart Warranty Plus)
Product features:
- Base power: 25 kW, rated AC power 25 kW / 25 kVA
- 3 DC inputs, max. charge/discharge current 68 A
- Battery operating voltage: 95–880 V
- Mains connection 3N~, 230/400 V, 50 Hz
- Backup operation: 25 kVA, start-up time <5 s (manual) / <30 s (automatic)
- Max. efficiency Bat2AC/AC2Bat: 98.3%
- Protection rating IP65, protection class I, pollution degree 4
- Dimensions (H/W/D): 561 × 409 × 237 mm, weight: 22.3 kg
- Ambient temperature: -20 °C to +60 °C, installation altitude up to 2000 m
- Connection technology: SUNCLIX ES (DC), spring-loaded terminal block (AC), push-in (interfaces)
- Interfaces: 2× LAN (RJ45), Wi-Fi (2.4 GHz), Modbus RTU, digital inputs/outputs
- Noise emission (typical): 39.6 dB(A)
-
