Dyness Tower 2.0 T17 with 16.8 kWh with GoodWe ET Plus – GW10K-ET
| Art. Nr.: | 12440 |
|---|---|
| Inverter: | GoodWe ET Plus 16A - GW10KN-ET |
| Phases: | 3 |
| Solar battery: | Dyness Tower 2.0 T17 mit 16,85 kWh |
| Net capacity: | 16.8 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Top-Deal
Available from stock
Product number:
12440
Description

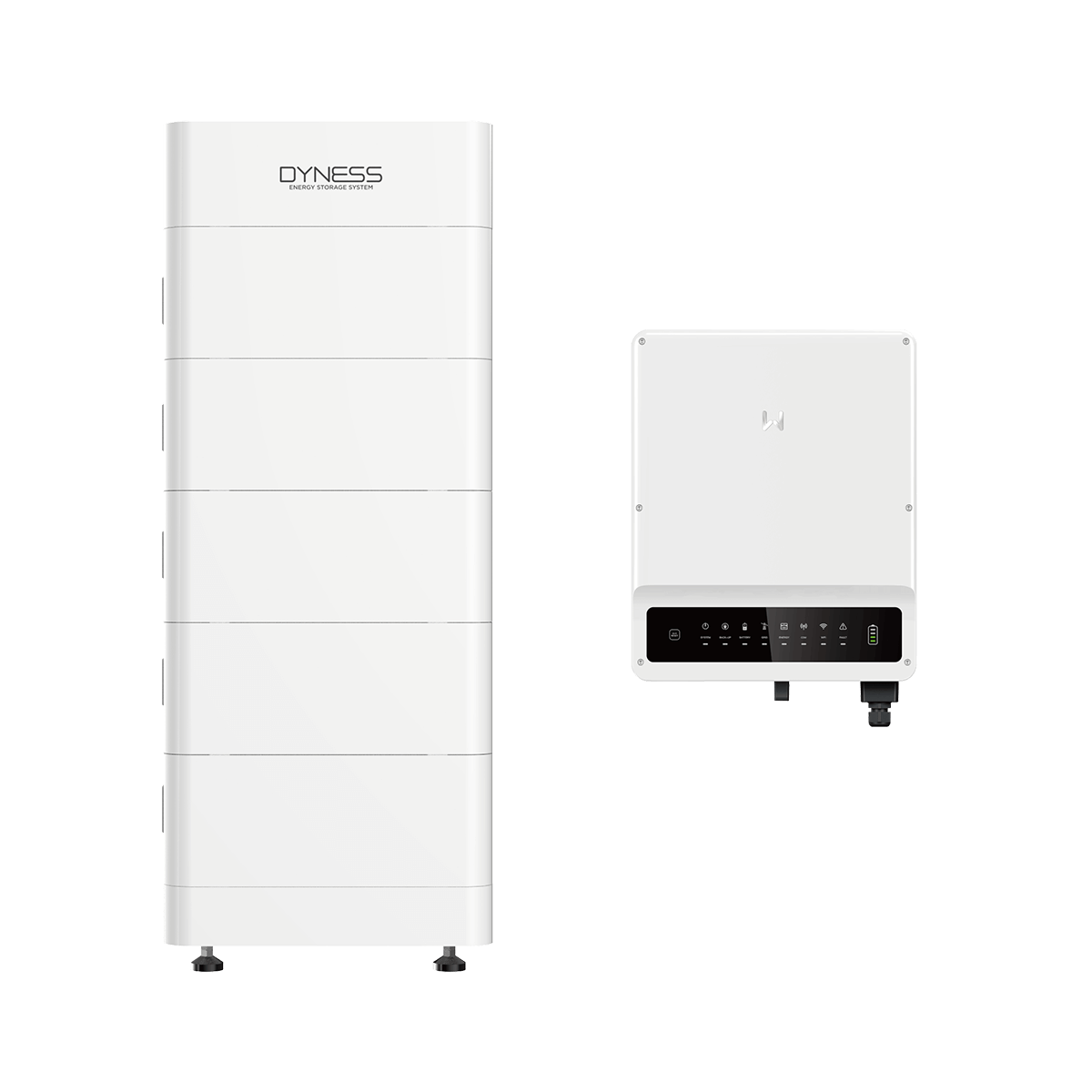

Dyness Tower 2.0 T17 with 16.8 kWh with GoodWe ET Plus – GW10K-ET storage package
Dyness comes with the stackable high-voltage battery T17 2.0. The battery storage system is available with 2 – 6 battery modules and a usable storage capacity of 6.74 – 20.24 kWh. In combination with the GoodWe hybrid inverter ET Plus, self-consumption can be increased. In combination, they can continue to supply selected consumers with electricity in the event of a power failure. Other consumers such as wallboxes and heat pumps can also be integrated via the potential-free contact in the hybrid inverter.
Product features Dyness Tower 2.0 T17 with 16.8 kWh
- Modular design
- Battery capacity: 17.8 kWh
- DoD: 95%
- Usable battery capacity: 16.87 kWh
- Lithium iron phosphate technology (LFP)
- Nominal voltage: 480 V
- Charge/discharge current: 22.2 A
- Weight: 228 kg
- Warranty: 10 years
- Protection category: IP 54
- Dimensions: 1300x504x380 mm (H/W/D)
Product features GoodWe ET Plus – GW10K-ET
- Mains connection: 3-phase
- AC power: 10 kVA
- 10.0 kW emergency power via separate output
- MPP trackers: 2
- String connections per MPPT: 1
- Battery connection for high-voltage battery (BYD, GoodWe)
- RS485, Wi-Fi (optional LAN)
- Potential-free contact available (programmable via SolarGo app) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- 3-phase smart meter GM3000 included
- Dimensions: 516 x 415 x 180 mm (HxWxD)
- Protection class: IP66
- Weight: 24 kg
Scope of delivery
- Dyness Tower 2.0 T17 with 16.8 kWh consisting of 1 BMS and 5 battery modules
- GoodWe ET Plus – GW10K-ET incl. 3-phase smart meter
