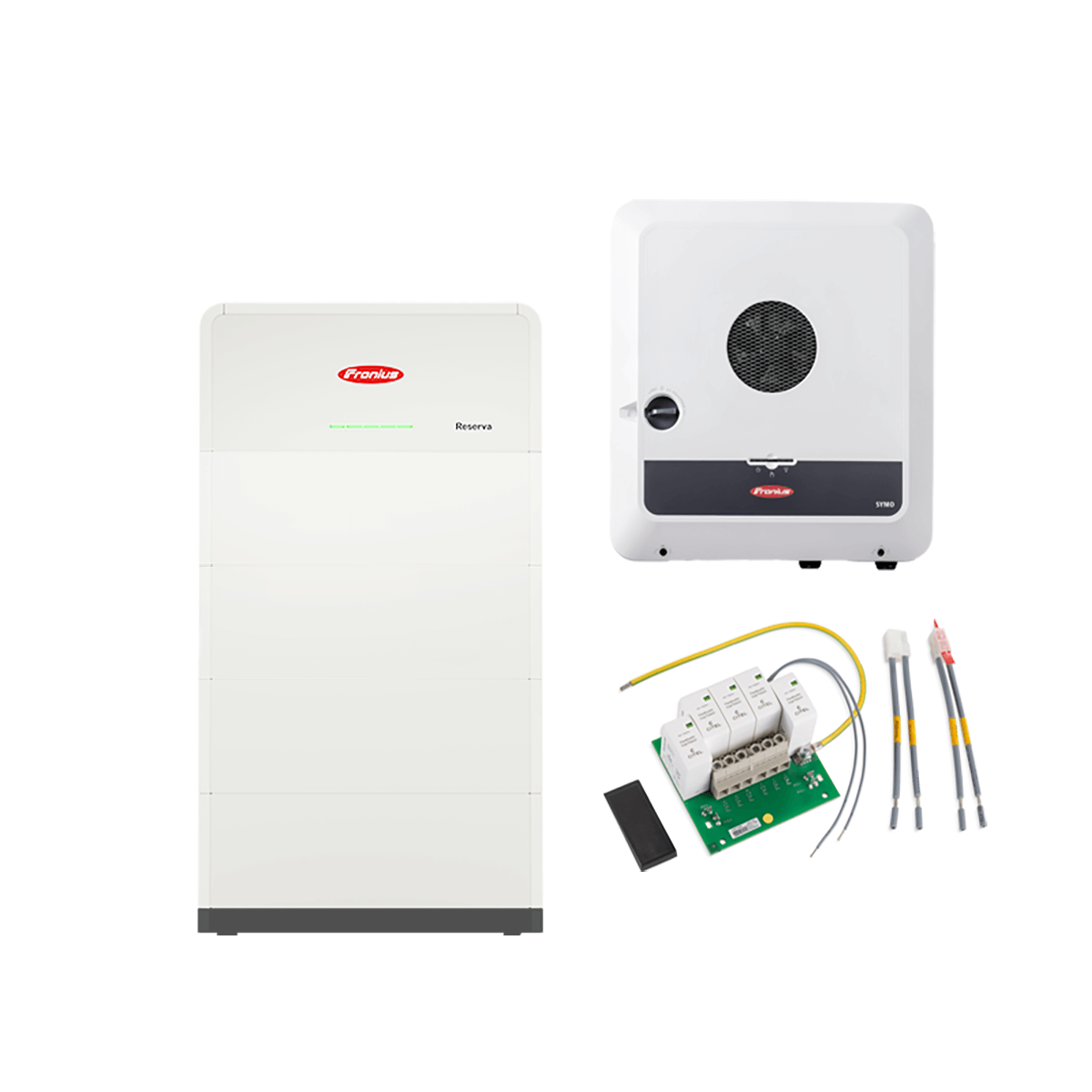

Fronius & Fronius Primo Gen24 6.0 Plus with Reserva 12.6 and DC overvoltage protection
| Art. Nr.: | 15194 |
|---|---|
| Inverter: | Fronius Primo Gen24 6.0 Plus |
| Phases: | 3 |
| Solar battery: | Fronius Reserva 12.6 |
| Net capacity: | 12.63 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Accessoires: | Fronius DC Überspannungsschutz Set Typ I+II |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
Prices are only visible to business customers upon successful registration.
- TIP
Available from stock
Product number:
15194
-
-
{ "id": "0a3c4884ea1d577fa6dcb62739954b37", "item_brand": "", "item_name": "Fronius Smart Meter TS 65A-3 direct, 3-phase", "item_id": "5532", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0a3c4884ea1d577fa6dcb62739954b37" } } -
{ "id": "dedae572784457549d5237ee444b0470", "item_brand": "", "item_name": "Fronius Wattpilot Flex Home 11 C6", "item_id": "13143", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "dedae572784457549d5237ee444b0470" } }
-
Description
Fronius Primo GEN24 6.0 Plus with Reserva 12.6 and DC surge protection – your all-in-one package for maximum energy independence
Free yourself from rising electricity prices and opt for a reliable and efficient photovoltaic solution with the Fronius storage package. This perfectly coordinated system ensures maximum efficiency, maximum flexibility and comprehensive protection for your solar system.
Product benefits
- Compact design
- Efficient DC coupling
- Single-phase backup power function
- Complete interface package
- Free warranty extension to 5 years upon online registration
Product features Fronius Primo Gen24 6.0 Plus
- Grid connection: single-phase
- AC power: 6.0 kVA
- Transformerless
- MPP trackers: 2
- Communication: integrated data logger with web server, 2 x Ethernet, Wi-Fi, RS485, 6 x digital IN/OUT, 6 x digital IN (FRE)
- Active cooling
- Dimensions: 528 x 474 x 163 mm (H x W x D)
- Weight: 16.6 kg
- Protection class: IP 66
- Warranty: 2 years (extended to 5 years with online registration)
Product benefits of the Fronius Reserva 12.6:
- Optimal integration with Fronius hybrid Inverters
- Parallel connection of up to 4 batteries for even greater storage capacity
- Space-saving design
- Expandable to up to 15.8 kWh thanks to modular design with up to 5 battery units
Product features of the Fronius Reserva 12.6:
- Usable capacity: 12.63 kWh
- 4 battery modules
- Voltage range: 371.2 – 454.4 V
- Dimensions: 1360 x 780 x 176 mm (H x W x D)
- Weight: 153.5 kg
- Protection class: IP65
- Interfaces: RS485
- Warranty: 10 years
Product benefits of the Fronius DC surge protection set, Type I+II:
- Type 1+2 surge protection for direct and indirect lightning strikes
- Specially developed for Fronius Symo GEN24 Plus
- Quick installation
- Automatic notification via Fronius Solar.web when the surge protection device is triggered
Product features of the Fronius DC surge protection set, Type I+II:
- Rated voltage: 1000 VDC
- Integrated remote signalling
- Standards: EC 61643-31 / DIN EN 50539-11; UL1449 ed.4 / VDE 0185-305-3 Bbl. 5
Scope of delivery:
- 1 x Fronius Primo GEN24 6.0 Plus
- 1 x Fronius Reserva BMS & Base
- 4 x Fronius Reserva module
- 1 x Fronius DC surge protection set Type I+II
Videos
Videos
-
Installation Fronius GEN24 PlusThe YouTube video has been blocked due to the cookie settings.
-
Fronius GEN24 Plus Hybrid Solar Inverter Commissioning ENGThe YouTube video has been blocked due to the cookie settings.
-
PV Point Backup power option of the GEN24 PlusThe YouTube video has been blocked due to the cookie settings.
-
Full Backup power option of the GEN24 PlusThe YouTube video has been blocked due to the cookie settings.
-
