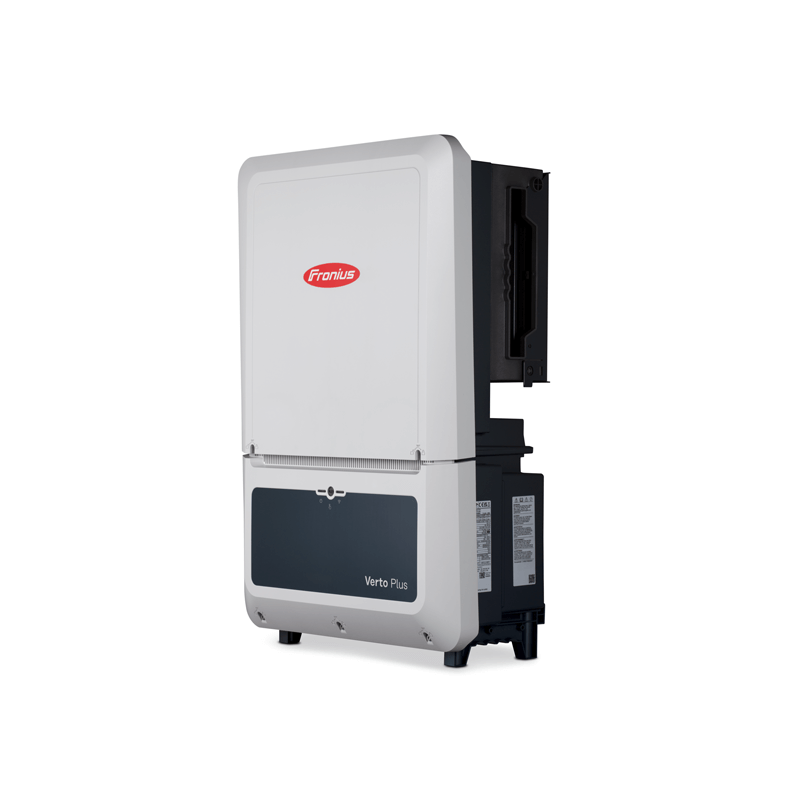

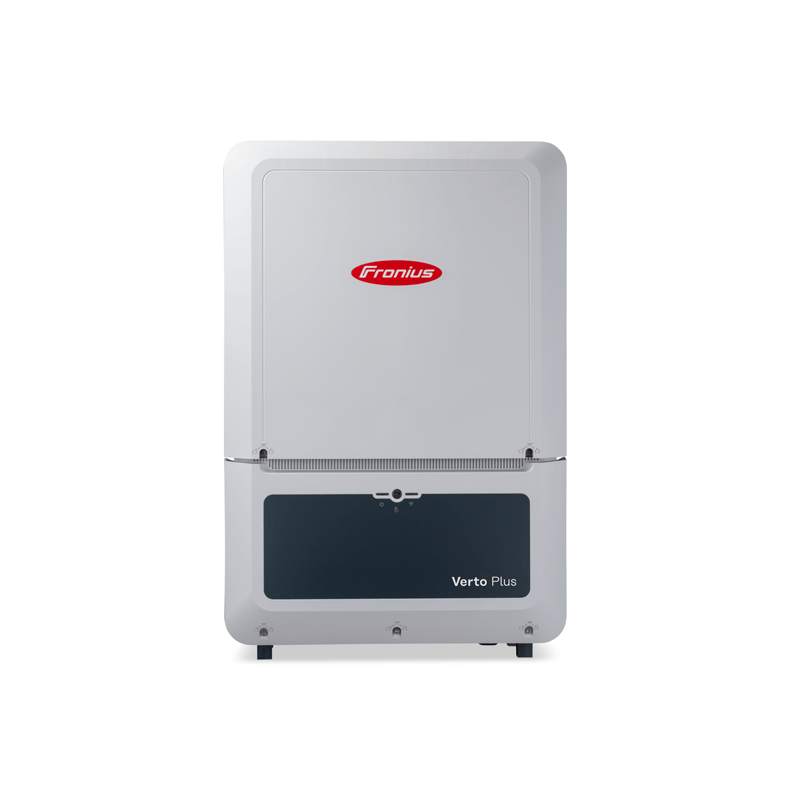

Fronius Verto Plus 25.0
Type of manufacturer: | Verto 25.0 Plus SPD 1+2 |
---|---|
Manufacturer Art. No.: | 4,210,456 |
Art. Nr.: | 13528 |
Pieces per package unit: |
|
AC power: | 25 kW |
Communication: | WLAN, Ethernet, RS485, DI, DO |
Inverter type: | Hybrid inverter |
MPP-Tracker: | 3 |
MPP voltage range: | 150 - 870 Volt |
Phases: | 3 |
Warranty: | 2 years |
WEEE-Number: |
|
- New
Fronius Verto Plus 25.0 – Powerful hybrid inverter for energy independence
The Fronius Verto Plus 25.0 is a powerful, three-phase hybrid inverter that has been developed specifically for demanding applications in industry, agriculture and single and multi-family homes. With a nominal AC output of 25 kW, three MPP trackers and extensive safety functions such as arc detection and overvoltage protection, it guarantees maximum operational reliability and efficiency. The flexible integration of battery storage systems, wallboxes and energy management systems makes it the ideal solution for future-oriented PV systems. Together with the Fronius Reserva, you get a perfectly coordinated storage system from a single manufacturer.
Product advantages Fronius Verto Plus 25.0
- Fast commissioning thanks to integrated web server and intuitive setup
- Three-phase emergency power supply for the entire building thanks to battery storage connection
- High flexibility thanks to three powerful MPP trackers and wide voltage range
- Maximum safety with integrated arc detection (Arc Guard Technology) and overvoltage protection (DC type 1+2, AC type 2)
- Optimum yields with shading thanks to Dynamic Peak Manager
- Open interfaces for easy integration into energy management systems and Fronius Wattpilot Flex or Fronius Ohmpilot, for example
- Robust housing (IP66) for indoor and outdoor installation
- Integrated interface for ripple control receiver
- Flexible mounting (10°-90° inclination)
Product features Fronius Verto Plus 25.0
- Netzanschluss: 3-phasig
- AC rated power: 25.0 kVA
- Max. usable DC input power: 33.25 kWp
- MPP tracker: 3, two DC connections each
- Max. input current per MPPT: 28 A
- Max. short-circuit current per MPPT: 50 A
- DC input voltage range: 150 – 870 V
- Battery connection: 1 DC input, max. 33.25 kW charging power
- Dimensions: 865 × 574 × 279 mm (H x W x D)
- Weight: 43 kg
- Protection category: IP66
- Communication: Wi-Fi, LAN RJ45, 2 x RS485, 6 x dig. IN/OUT, 6 x dig. IN (radio ripple control receiver)
- Warranty: 2 years – can be extended to 5 years free of charge with online registration via Fronius Solar.web
Examples of use
- PV systems with storage integration in agricultural businesses
- Single and multi-family homes with PV, emergency power supply and load management
- Commercial projects with energy monitoring and grid-friendly operation
Install, connect, done – with the Fronius Verto Plus 25.0 you pave the way to energy self-sufficiency for your customer!
-
