GoodWe BAT60 with ET 29.9 – Battery Pack
| Art. Nr.: | 12921 |
|---|---|
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 60 kWh |
| Power: | 29.9 kW |
| Warranty: | 10 years |
| Charging power: | 30 kW |
| Discharging power: | 30 kW |
| Communication: | CAN |
| Commercial storage type: | Modular with inverter |
- TIP
-
-
{ "id": "29eeb7397faa5776bfe68589b8df727e", "item_brand": "", "item_name": "GoodWe BAT60", "item_id": "14733", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "29eeb7397faa5776bfe68589b8df727e" } }
-

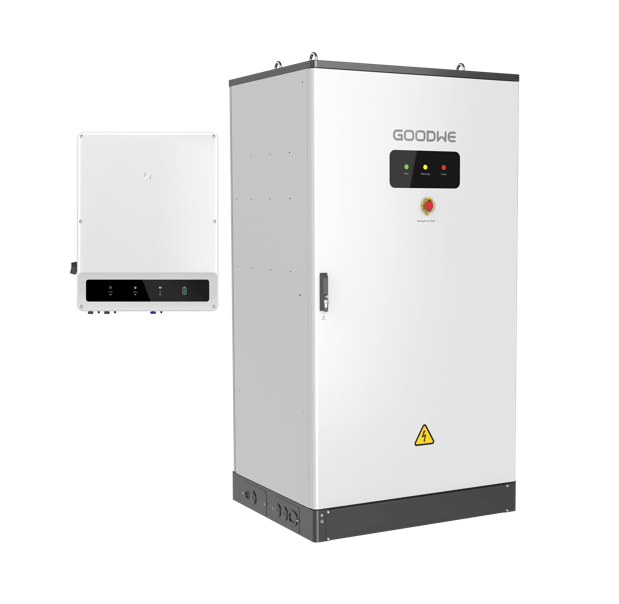

GoodWe BAT60 with ET 29.9 – Storage Package
With its coordinated GoodWe complete solution comprising the BAT60 battery storage system and the ET 29.9 hybrid Inverter, GoodWe offers a high-performance and flexible solution for commercial applications and larger PV projects.
The GoodWe BAT60 delivers 60 kWh of usable storage capacity and is designed as a robust outdoor battery system for commercial and industrial use. The integrated LFP battery technology, climate control and robust IP55 enclosure ensure reliable operation under a variety of environmental conditions.
When combined with the GoodWe ET 29.9 hybrid inverter, it creates a high-performance system solution for Self-consumption optimisation, peak shaving and emergency power supply. The ET 29.9 provides up to 29.9 kW of AC power and 29.9 kW of emergency power.
The battery system has a modular design and can be expanded with multiple BAT60 units. Up to four BAT60 systems can be connected in parallel, allowing the storage capacity to be scaled up to around 240 kWh.
Package benefits
- Complete GoodWe system
- 29.9 kW emergency power output via a separate output
- LFP battery technology for high safety and longevity
- Outdoor battery system
- Integrated air conditioning
- Integrated fire protection system
- Up to 4 BAT60 units can be connected in parallel
- Suitable for peak shaving, Self-consumption optimisation and emergency power supply
Product features Lynx C 60 kWh - GW60KWH-D-10
- Rated capacity: 61.4 kWh
- Usable energy: 60 kWh
- Battery packs: 6
- Pack capacity: 10.24 kWh
- Nominal voltage: 307.2 V
- Cycle life: 6,000 cycles
- Depth of discharge: 100%
- Efficiency: 96% (@100% DOD, 0.2C, 25 ± 2°C)
- Climate control: Air conditioning
- Protection rating: IP55
- Corrosion protection: C4, optionally C5-M
- Fire protection: Aerosol on module and cabinet unit
- Weight: < 950 kg
- Dimensions: 2000 x 1055 x 1055 mm (H x W x D)
- Operating temperature: −20 to +55 °C
Product specifications ET 29.9 - GW29.9K-ET
- Mains connection: 3-phase
- AC power: 29.9 kVA
- 29.9 kW emergency power output via separate output
- MPP trackers: 3
- String connections per MPPT: 2
- Max. input current per MPPT: 30 A
- Max. short-circuit current per MPPT: 38 A
- Communication: RS485, CAN, Wi-Fi, Bluetooth
- Dry contact available (programmable via the PV-Master app) (SG-Ready)
- Wi-Fi module included
- Dimensions: 520 x 660 x 220 mm (HxWxD)
- Protection class: IP66
- Weight: 54.0 kg
Contents
- GoodWe BAT60 commercial storage system (6 battery modules, outdoor enclosure with integrated BMS, air conditioning and fire suppression system)
- GoodWe ET 29.9 hybrid inverter including 3-phase Smart meter
-
