GoodWe BAT60
| Type of manufacturer: | GW61.4-BAT-AC-G10 |
|---|---|
| Manufacturer Art. No.: | BAH0061-01-00P |
| Art. Nr.: | 14733 |
| Pieces per package unit: |
|
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 60 kWh |
| Warranty: | 5 years |
| Charging power: | 55.2 kW |
| Discharging power: | 67.5 kW |
| Communication: | CAN |
| Commercial storage type: | Modular without inverter |
-
-
{ "id": "48e6ae47a7de58bcbbbe2b6ab2234e47", "item_brand": "", "item_name": "GoodWe ET 25 - GW25K-ET", "item_id": "8719", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "48e6ae47a7de58bcbbbe2b6ab2234e47" } } -
{ "id": "5daae379fcff5a73805e0521a4bd3836", "item_brand": "", "item_name": "GoodWe ET 20 - GW20K-ET", "item_id": "8718", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5daae379fcff5a73805e0521a4bd3836" } } -
{ "id": "bb408b314fd45da5896c6c02ea7427d1", "item_brand": "", "item_name": "GoodWe ET 29.9 - GW29.9k-ET", "item_id": "8720", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "bb408b314fd45da5896c6c02ea7427d1" } }
-
GoodWe BAT60 – 61.4 kWh
GoodWe is offering free commissioning support and a one-off condition assessment for all C&I storage systems of the BAT 60/112 kWh and ESA 125 kW/261 kWh models.
This offer applies to deliveries from 1 November 2025 to 31 December 2026 and is project-specific.
Registration must be carried out using the official form and approved by GoodWe before a date is scheduled. Once approved, GoodWe will confirm the project by email and then arrange the service appointment with the project partner. Register
projects: Form
The Inverter is not included in the scope of supply. Depending on the configuration, the Inverter must be ordered separately.

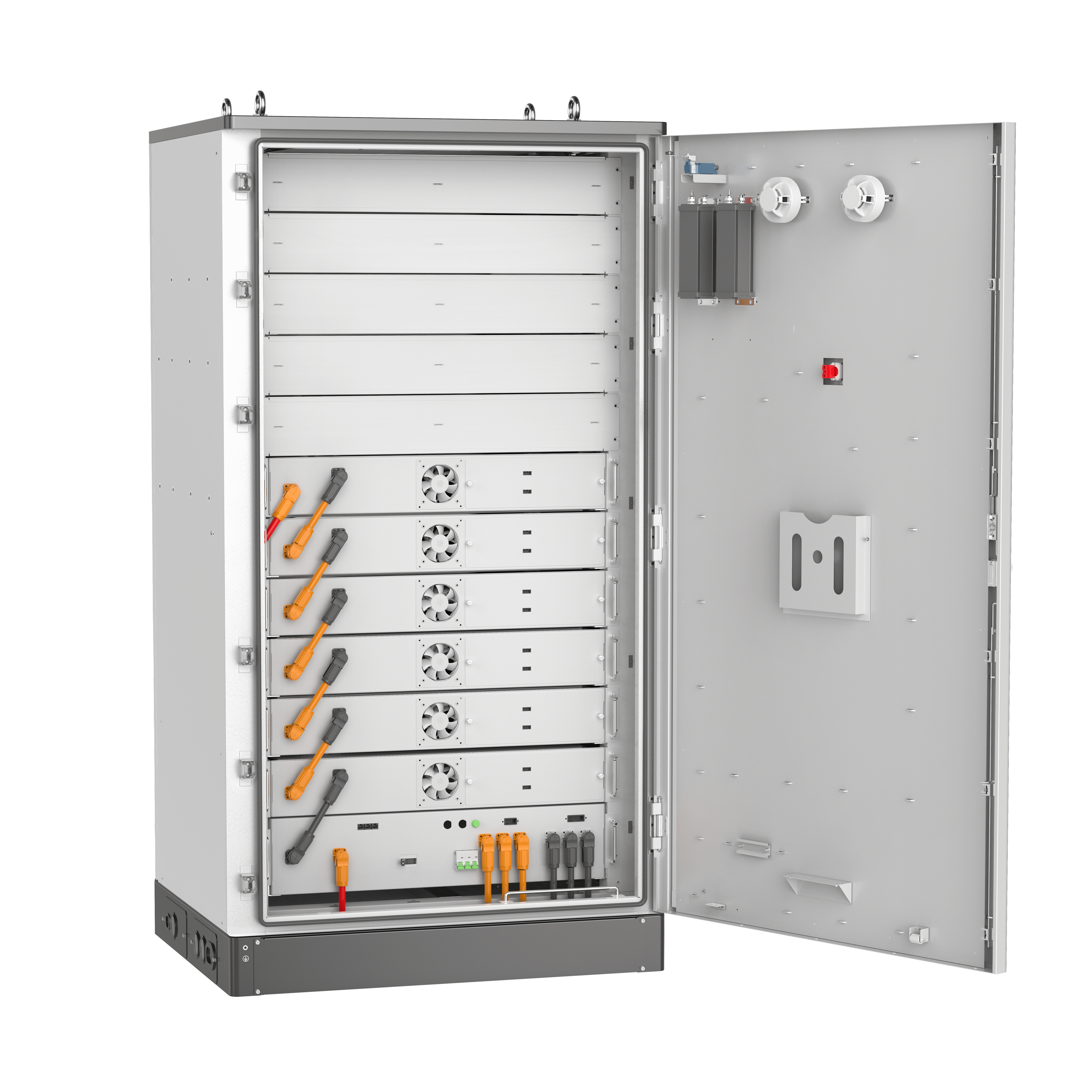

The GoodWe BAT60 is a high-performance high-voltage battery system for commercial and industrial applications.
With a usable capacity of 60 kWh, it offers a robust, scalable solution for peak load management, Self-consumption optimisation and uninterruptible power supply. The system is fully designed for outdoor use and combines LFP cell technology, integrated climate control and a sealed enclosure with a high protection rating.
When combined with the GoodWe ET-Hybrid inverter, it creates a reliable turnkey solution for C&I projects of any size.
Thanks to its support for up to four battery cabinets connected in parallel (~240 kWh), the system is ideally suited to small to medium-sized commercial and industrial projects that rely on reliable Storage capacity and a high level of safety.
Product benefits
- Scalable to up to 4 units connected in parallel.
- Maximum operational safety with a 6-layer protection concept and aerosol-based fire suppression at module and system level.
- Suitable for outdoor use with a robust IP55 enclosure, integrated air conditioning and C4 corrosion protection (optional C5-M).
- Long service life thanks to LFP technology and 6,000 cycles at 90 per cent DoD.
Product features
- Usable battery capacity: 60 kWh
- Number of battery modules: 6, each with 10.24 kWh
- Nominal voltage: 307.2 V
- Max. charge/discharge current: 180/220 A
- Communication: CAN
- Protection class: IP55, C4 standard, optional C5-M
- Certifications: IEC 62619 / IEC 63056 / IEC 60730 / IEC 62477 / VDE 2510 / ISO 13849, IEC 62040 / N140 / EU 2023/1542 / UN 38.3
- Product warranty: 5 years
- Performance guarantee: 10 years
- Operating temperature range: -20°C to +55 °C
- Dimensions: 2000 x 1055 x 1055 mm (H x W x D)
- Total weight: <950 kg
Compatible with
- GoodWe ET 15-30 series
-
