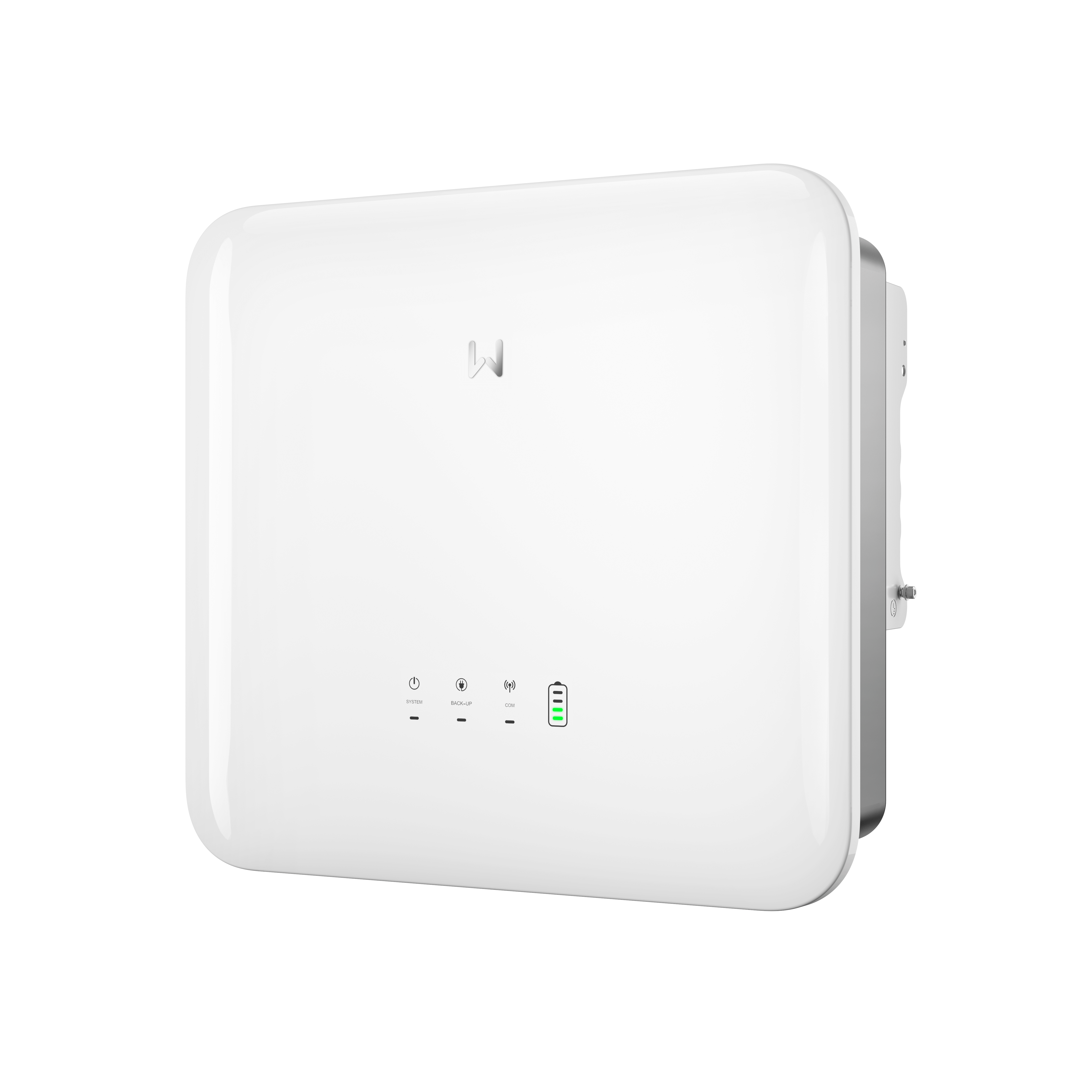

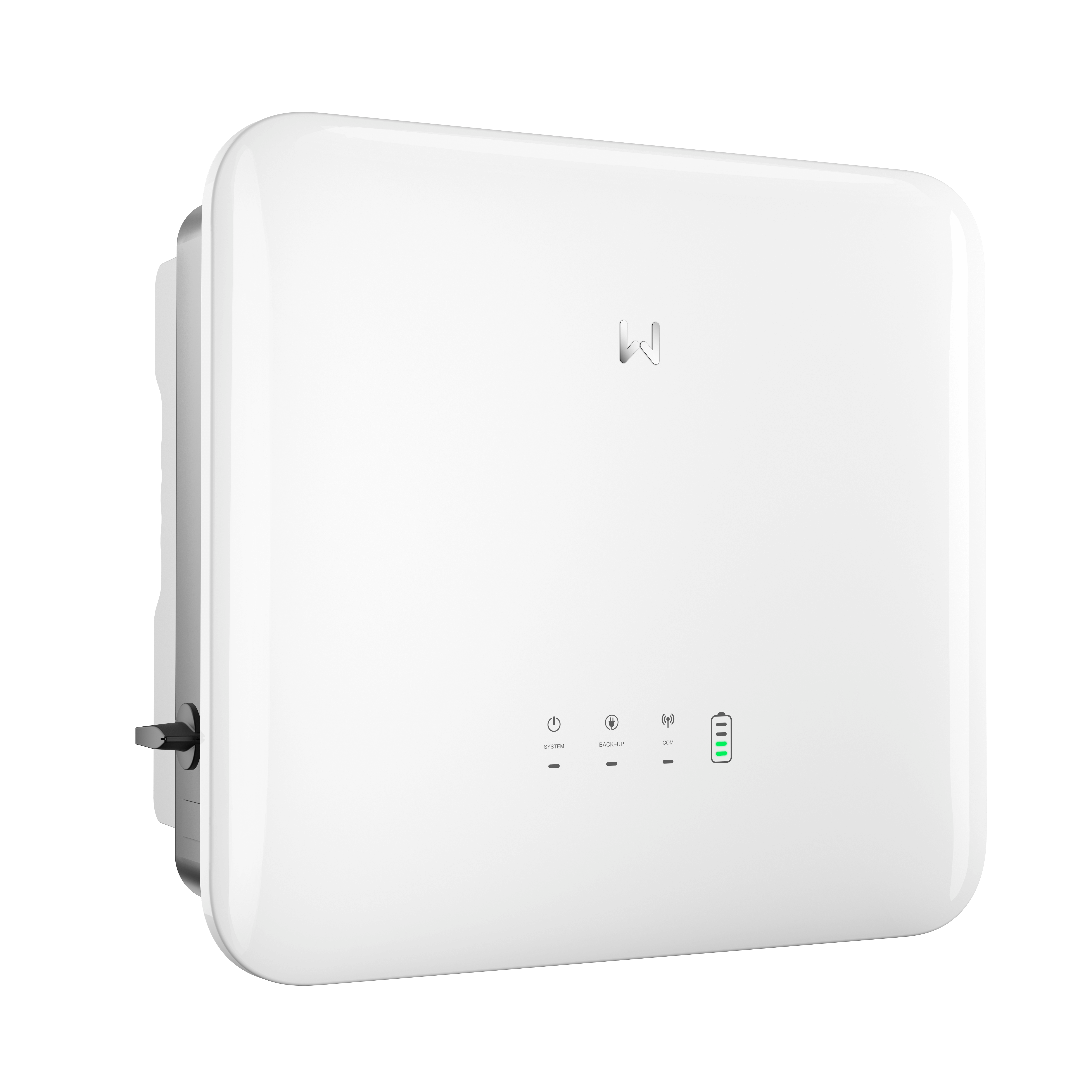

GoodWe & GoodWe ET 15 G2 - GW15K-ET-20
| Type of manufacturer: | GW15K-ET-20 |
|---|---|
| Manufacturer Art. No.: | EUB0015-03-01P |
| Art. Nr.: | 13817 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter |
| MPP-Tracker: | 3 |
| AC power: | 15 kW |
| Warranty: | 5 years |
| Communication: | RS485, CAN, WiFi, LAN, Bluetooth |
| MPP voltage range: | 150 - 720 Volt |
Prices are only visible to business customers upon successful registration.
Product number:
13817
-
-
{ "id": "2e3d4b97992555be8c3414c5a074303a", "item_brand": "", "item_name": "GoodWe EzManager3000", "item_id": "15042", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2e3d4b97992555be8c3414c5a074303a" } } -
{ "id": "34d7fedc2d5158db9675c9257b843efa", "item_brand": "", "item_name": "GoodWe Lynx D – battery storage 5 kWh", "item_id": "12789", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "34d7fedc2d5158db9675c9257b843efa" } } -
{ "id": "a1259346d18057749df4b61bf3c67906", "item_brand": "", "item_name": "GoodWe & GoodWe EV Charger HCA G2 11 kW cable 7.5 m", "item_id": "14143", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a1259346d18057749df4b61bf3c67906" } }
-
Description
The GoodWe GW15K-ET-20 High-Voltage Hybrid Inverter
The ET G2 hybrid inverter is the high-performance solution for maximum energy efficiency in the home. With up to 15 kW of power, intelligent load control and a wide battery voltage range, it adapts flexibly to a wide variety of requirements. It increases Self-consumption, reduces grid consumption and provides a reliable emergency power supply.
Various intelligent operating modes allow the energy flow to be precisely controlled – for maximum savings and minimum electricity costs.
The delivery also includes the new GoodWe Cyber Security Dongle Wifi+LAN 2.0.
Product benefits
- Integrated transfer switch for backup power
- Black start capable
- Peak shaving function
- Load control and generator control
- AC overvoltage protection
- Integrated smart meter
- Integrated CTs
- 160% PV oversizing
- Up to 4 inverters in parallel
- AI-controlled AFCI 3.0
Product features GW15K-ET-20
- Grid connection: 3-phase
- AC power: 15 kVA
- 15 kW emergency power output via separate output
- MPP trackers: 3
- String connections per MPPT: 1
- Max. input current per MPPT: 16 A
- Max. short-circuit current per MPPT: 24 A
- Number of battery inputs: 1
- Communication: RS485, CAN, WiFi, LAN, Bluetooth
- Dimensions: 496×460×221 mm (HxWxD)
- Protection class: IP66
- Weight: 25 kg
- Mounting: Wall bracket
Contents
- 1x GoodWe ET G2 - GW15K-ET-20
- 1x GoodWe Cyber Security Dongle Wi-Fi+LAN 2.0
-
Matching accessories
-

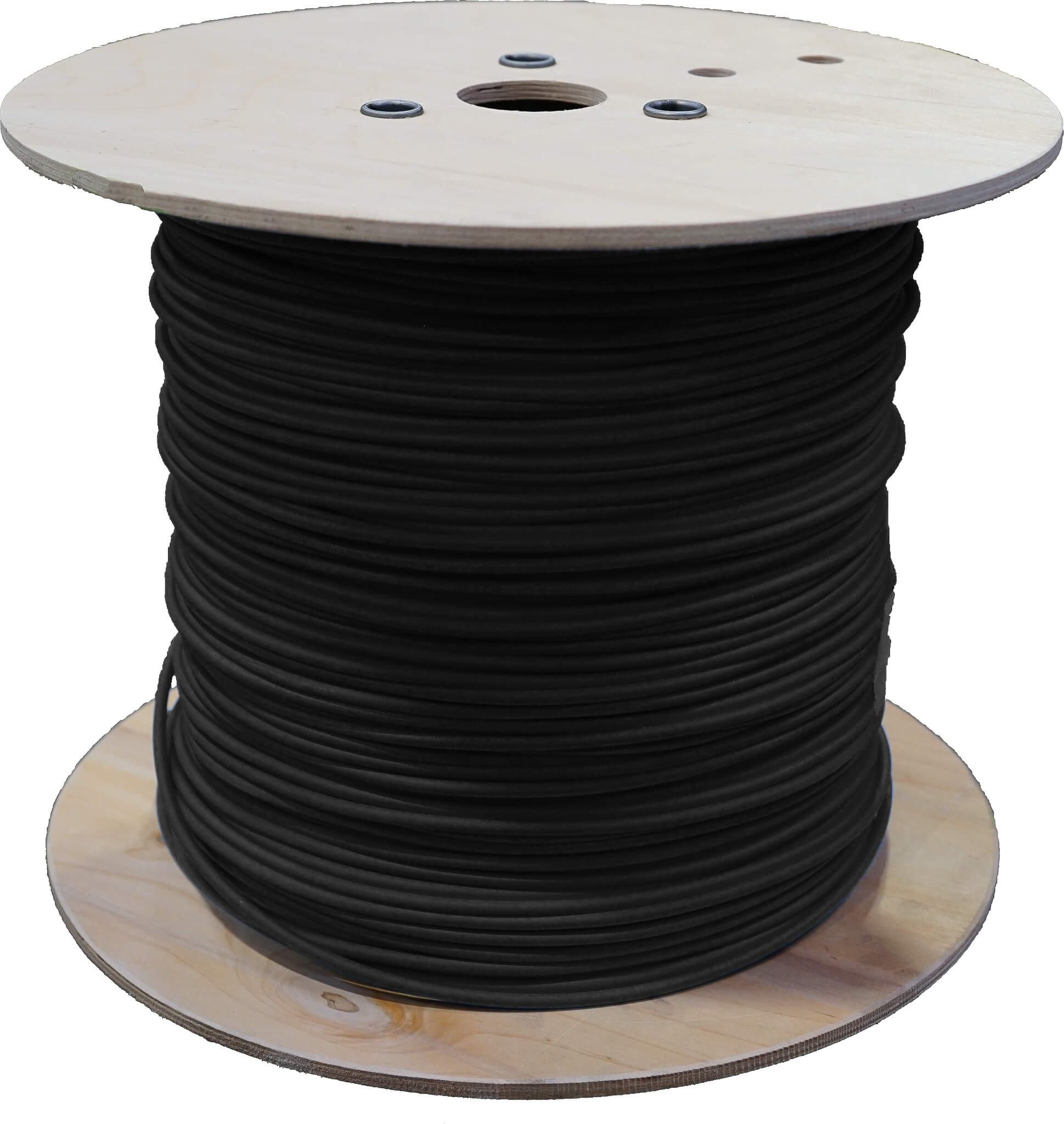

KBE solar cable DB+, 4mm², 500m, black- Type of manufacturer: H1Z2Z2-K 4,0 sw
- Art. Nr.: 11714
{ "id": "9bdd58af5ae154ed9f94d712d7ede07c", "item_brand": "", "item_name": "KBE solar cable DB+, 4mm², 500m, black", "item_id": "11714", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "9bdd58af5ae154ed9f94d712d7ede07c" } } -
KBE solar cable DB+, 6mm², 100m, blue- Type of manufacturer: H1Z2Z2-K 6,0 bl
- Art. Nr.: 11718
{ "id": "1f1ca75731315ef383dce765327a2df1", "item_brand": "", "item_name": "KBE solar cable DB+, 6mm², 100m, blue", "item_id": "11718", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "1f1ca75731315ef383dce765327a2df1" } } -
Stäubli MC4-EVO ready socket 4-6 mm², Da 5.5 – 7.5 mm- Type of manufacturer: PV-KBT-EVO READY
- Art. Nr.: 11666
{ "id": "ac218eb566d257998db5928656516c68", "item_brand": "", "item_name": "Stäubli MC4-EVO ready socket 4-6 mm², Da 5.5 – 7.5 mm", "item_id": "11666", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "10", "shopware_id": "ac218eb566d257998db5928656516c68" } } -
Stäubli MC4 EVO ready assembly tool / wrench set- Type of manufacturer: MC4-MS-EVO READY
- Art. Nr.: 11667
{ "id": "d3a62c977eeb56de9f7da563a059ff77", "item_brand": "", "item_name": "Stäubli MC4 EVO ready assembly tool / wrench set", "item_id": "11667", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d3a62c977eeb56de9f7da563a059ff77" } } -
Stäubli MC4-EVO ready connector 4-6 mm², Da 5.5 – 7.5 mm- Type of manufacturer: PV-KST-EVO READY
- Art. Nr.: 11665
{ "id": "0f7f8e594c4f5028adb485c0a7b4ec41", "item_brand": "", "item_name": "Stäubli MC4-EVO ready connector 4-6 mm², Da 5.5 – 7.5 mm", "item_id": "11665", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "10", "shopware_id": "0f7f8e594c4f5028adb485c0a7b4ec41" } } -
OBO cable duct 40x60 mm, pure white, PU box: 16 pcs. x 2 m = 32.0 m- Type of manufacturer: WDK40060RW
- Art. Nr.: 7652
{ "id": "2d7733b56a575607a0d298cec788bc20", "item_brand": "", "item_name": "OBO cable duct 40x60 mm, pure white, PU box: 16 pcs. x 2 m = 32.0 m", "item_id": "7652", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2d7733b56a575607a0d298cec788bc20" } } -
Cable tie 300 x 3.6 mm, black, UV-resistant- Art. Nr.: 3579
{ "id": "fe652219a89e51258443b28a161923e3", "item_brand": "", "item_name": "Cable tie 300 x 3.6 mm, black, UV-resistant", "item_id": "3579", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "100", "shopware_id": "fe652219a89e51258443b28a161923e3" } } -

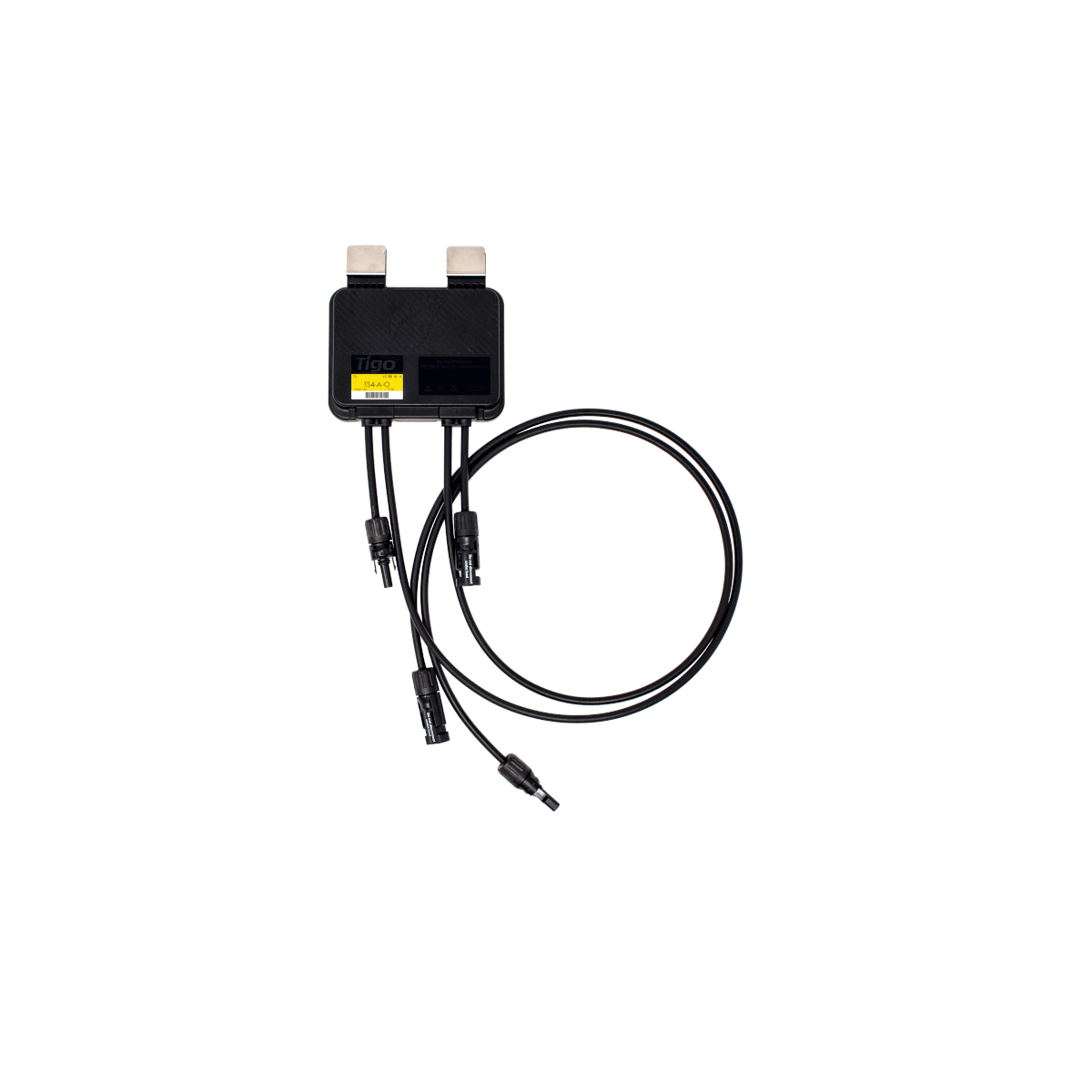

Tigo TS4-A-O- Type of manufacturer: 462-01252-32 - TS4-A-O
