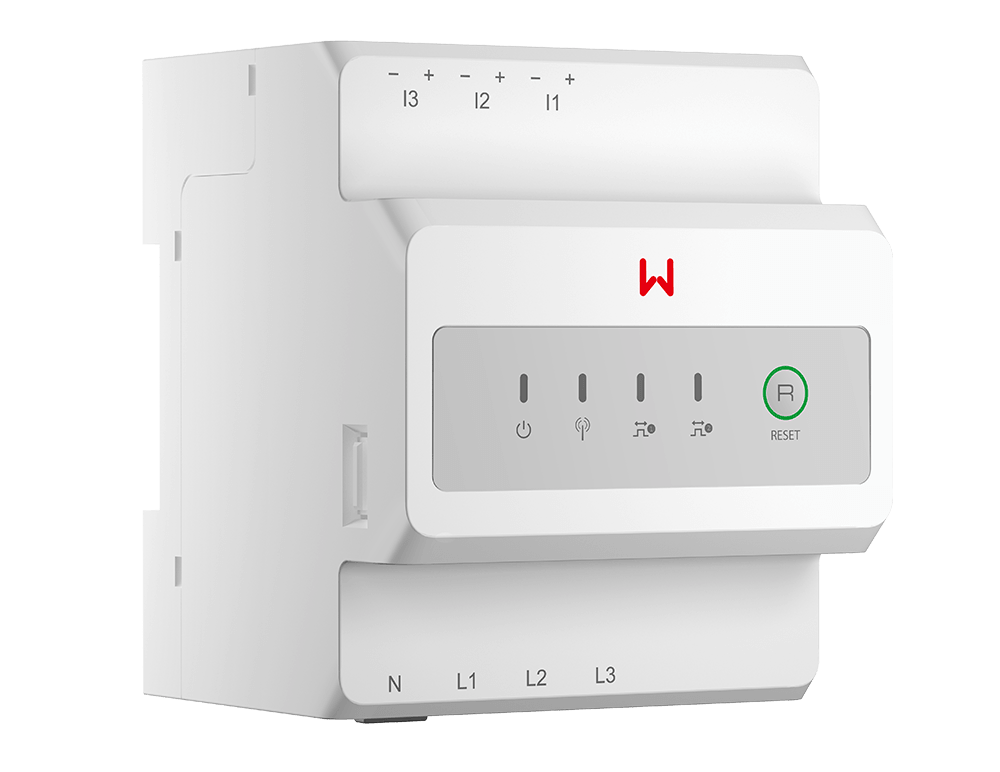

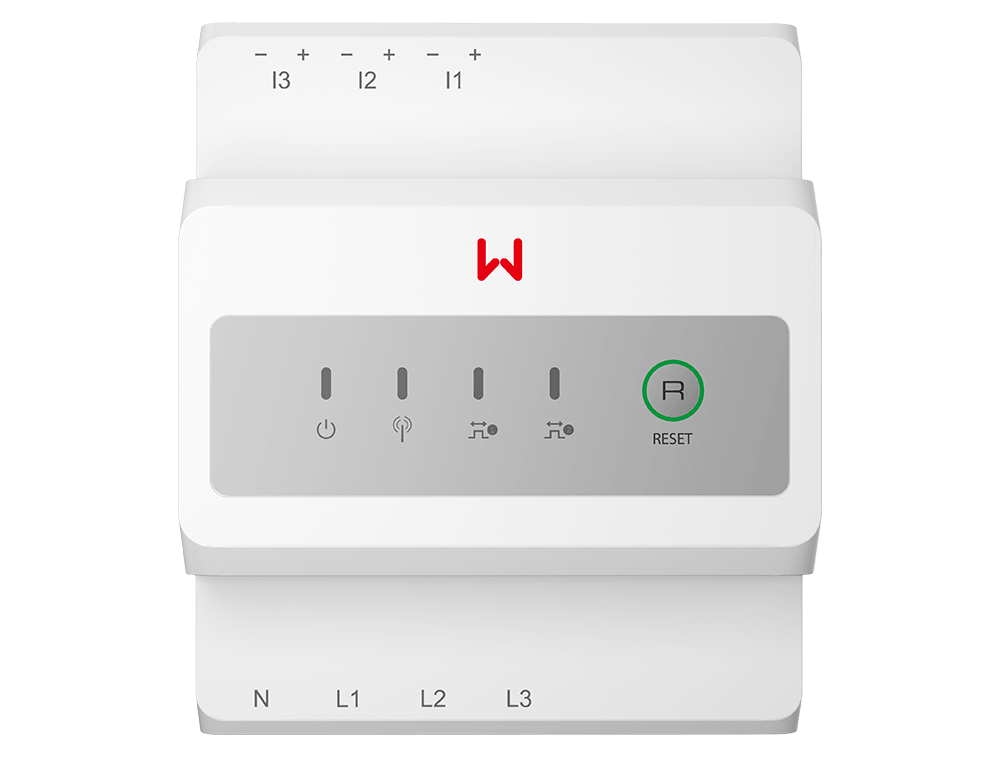

GoodWe GMK330 Smart meter

The GoodWe GMK330 Smart Meter is an intelligent three-phase electricity meter designed for the precise measurement of energy flows in photovoltaic systems. It reliably records local electricity consumption and grid load, and enables dynamic power control of hybrid and on-grid Inverters. With an accuracy class of 0.5 and integrated 120A current transformers (CTs), the GMK330 is ideal for applications such as Self-consumption optimisation and zero feed-in. Thanks to RS485 communication and rapid data updates, the Smart meter ensures precise control and maximum efficiency of modern PV systems.

Product benefits:

Precise energy monitoring thanks to high measurement accuracy
Optimises self-consumption and Grid feed-in in PV systems
Seamless integration with GoodWe hybrid and grid-connected inverters
Fast data updates for dynamic power control
Cost-effective solution for systems with high load requirements
Easy installation on a DIN rail in the distribution box

Product features:

Three-phase smart meter for PV systems
Supported grid types: 1P2W / 3P3W / 3P4W
Accuracy class 0.5 for precise energy measurement
Includes 3 current transformers (120A) for measuring high currents
Support for feed-in limitation (Export Power Limit)
Communication via RS485 (up to 1000 m range)
Mounting on DIN top-hat rail
Compact design: 72 × 85 × 72 mm (4 modules)
Operating temperature range: -30 °C to +70 °C
Power consumption < 5 W
