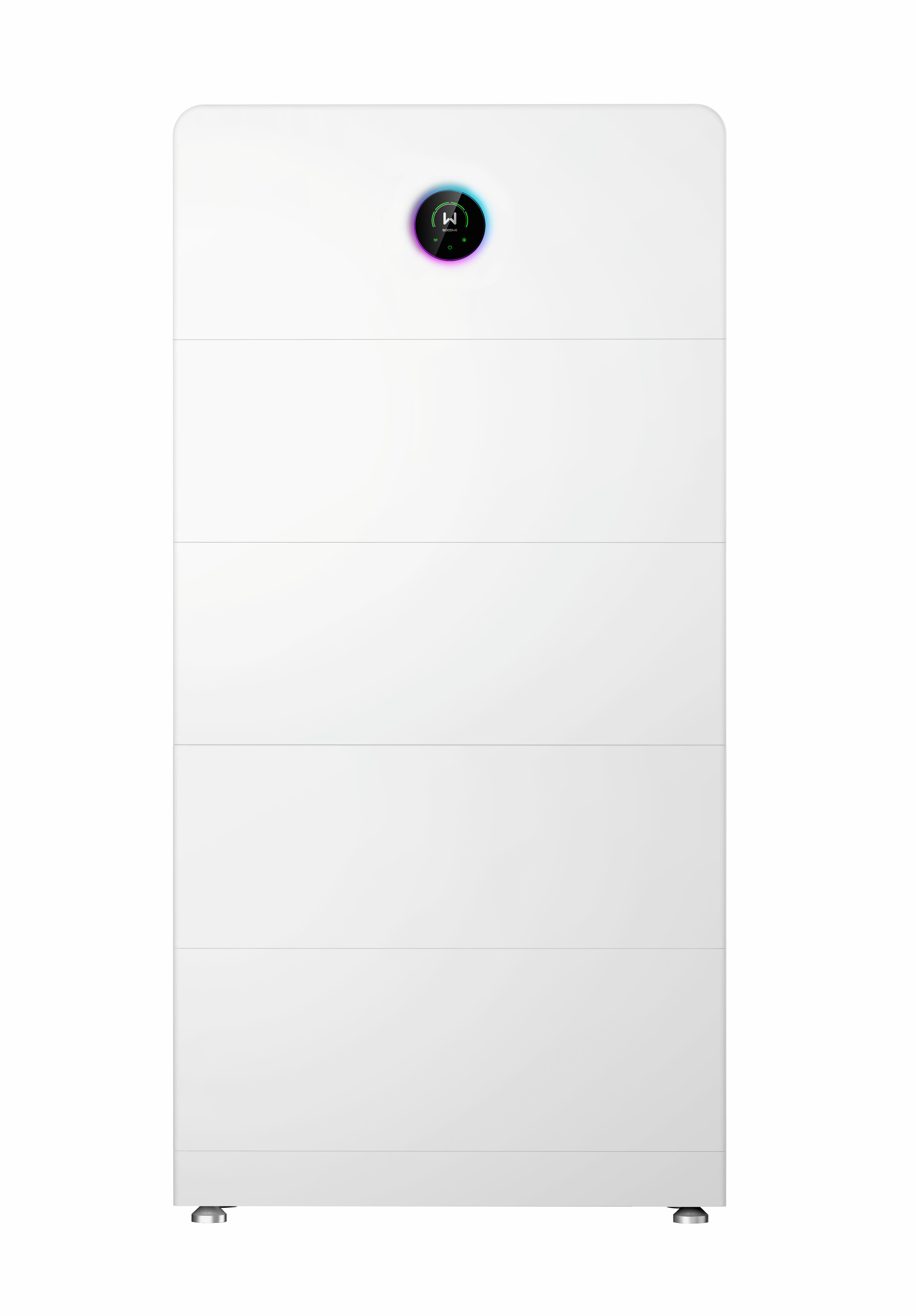

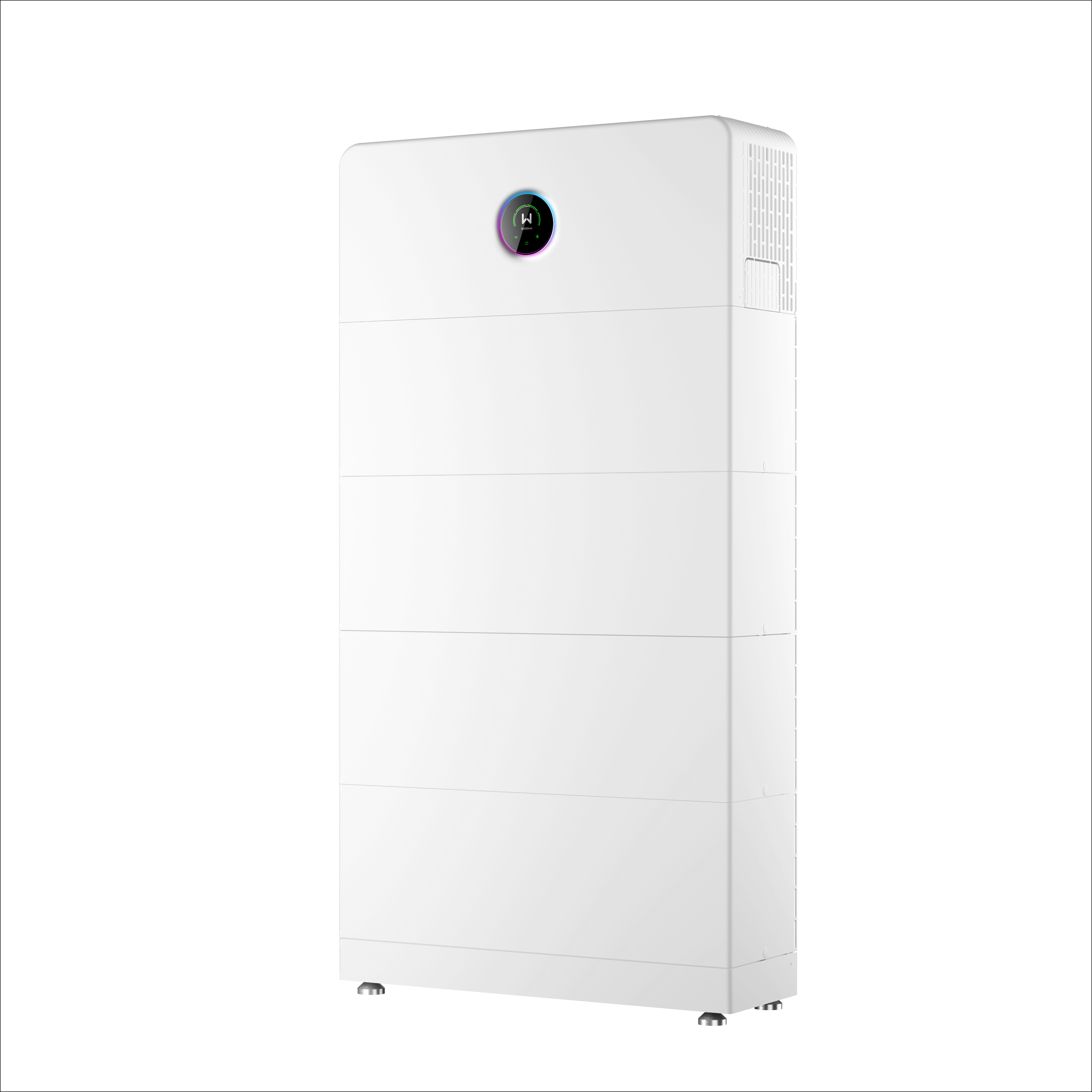

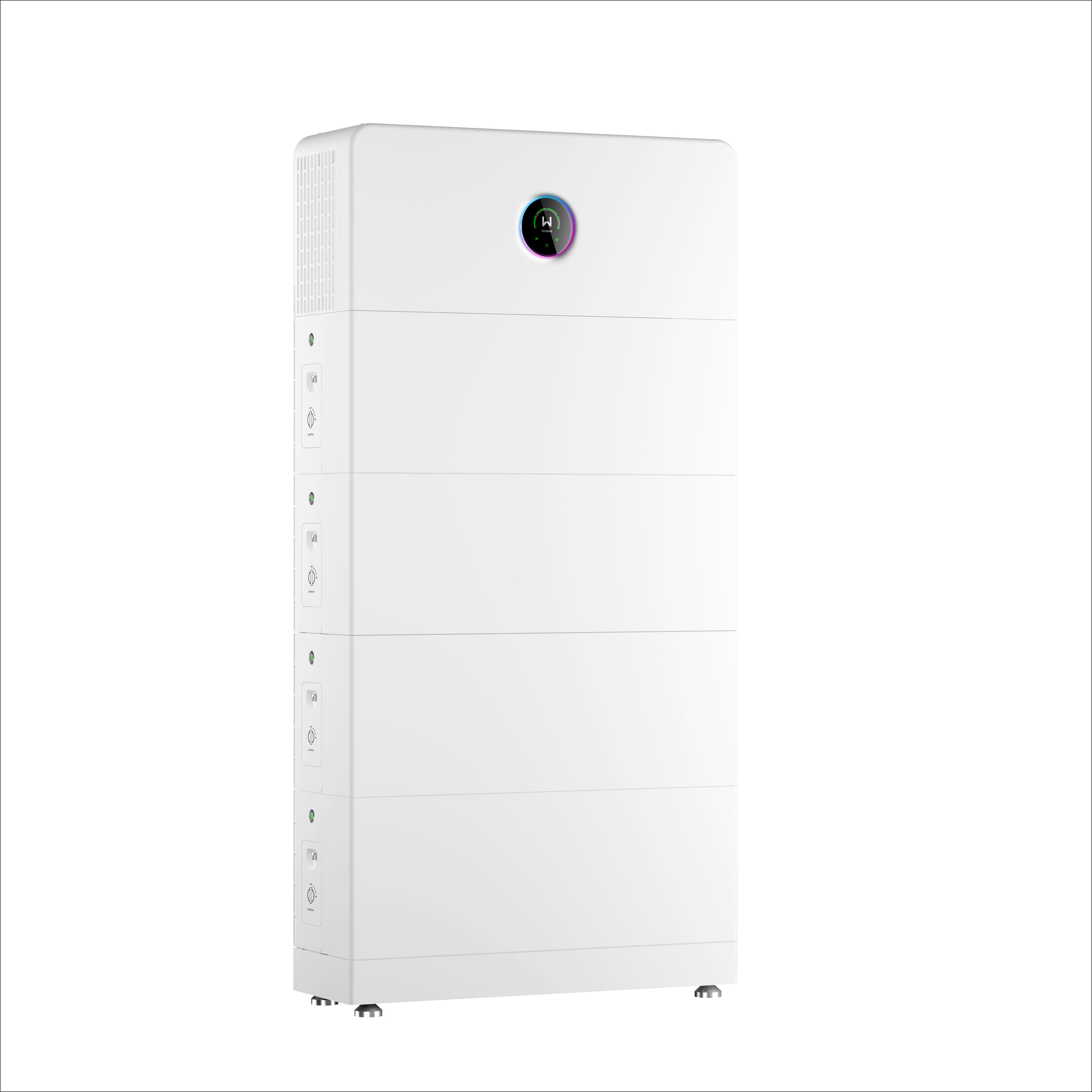

GoodWe & GoodWe ESA 8 kW - GW8K-EHA-G20
| Type of manufacturer: | GW8K-EHA-G20 |
|---|---|
| Manufacturer Art. No.: | NAH8000-04-00P |
| Art. Nr.: | 14984 |
| Pieces per package unit: |
|
| Phases: | 1 |
| Inverter type: | Hybrid inverter |
| MPP-Tracker: | 2 |
| AC power: | 8 kW |
| Warranty: | 10 years |
| Communication: | WLAN/LAN/BT/RS485 |
| MPP voltage range: | 350-550 Volt |
Prices are only visible to business customers upon successful registration.
- New
Available from stock
Product number:
14984
-
-
GoodWe & GoodWe ESA battery module 8 kWh - GW8.3-BAT-D-G20- Art. Nr.: 14974
- GoodWe
Available from stock{ "id": "67fdf2b54536550590cd0e618b5820ca", "item_brand": "", "item_name": "GoodWe & GoodWe ESA battery module 8 kWh - GW8.3-BAT-D-G20", "item_id": "14974", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "67fdf2b54536550590cd0e618b5820ca" } } -
GoodWe & GoodWe ESA battery module 5 kWh - GW5.1-BAT-D-G20- Art. Nr.: 14973
- GoodWe
Available from 01.06.2026{ "id": "c539600cbbb85782952a46f2fd40448c", "item_brand": "", "item_name": "GoodWe & GoodWe ESA battery module 5 kWh - GW5.1-BAT-D-G20", "item_id": "14973", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c539600cbbb85782952a46f2fd40448c" } } -
GoodWe & GoodWe EV Charger HCA G2 11 kW cable 7.5 m- Art. Nr.: 14143
- GoodWe
Available from 06.07.2026{ "id": "a1259346d18057749df4b61bf3c67906", "item_brand": "", "item_name": "GoodWe & GoodWe EV Charger HCA G2 11 kW cable 7.5 m", "item_id": "14143", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a1259346d18057749df4b61bf3c67906" } } -
GoodWe & GoodWe EV Charger HCA G2 22 kW cable 7.5 m- Art. Nr.: 14145
- GoodWe
Available from 15.06.2026{ "id": "ce8cb048c3c65ff583474c0a3dc50385", "item_brand": "", "item_name": "GoodWe & GoodWe EV Charger HCA G2 22 kW cable 7.5 m", "item_id": "14145", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ce8cb048c3c65ff583474c0a3dc50385" } }
-
Description
GoodWe ESA 8 kW – The All-in-One Home Storage Solution
The GoodWe ESA Series is a smart and scalable all-in-one residential energy storage solution designed to maximise self-consumption and energy independence. Combining an inverter, a high-voltage LFP battery, UPS-grade switching and a pre-wired modular enclosure, the ESA ensures quick installation, reduced system complexity and long-term flexibility. With IP66 protection, ultra-quiet operation and advanced smart energy management, the ESA Series is the ideal choice for homeowners seeking reliable backup power and optimised solar performance.
Product Advantages:
- All-in-one system integrating inverter, battery, UPS switching, and enclosure
- Fast and hassle-free installation thanks to pre-wired modular design
- Scalable storage solution – supports up to 6 battery modules per stack (up to 48 kWh)
- AI-driven Energy Management System with <4 ms UPS-level backup switching
- Flexible expansion with the ability to mix old and new battery capacities
- High safety standards with integrated protection functions and LFP battery technology
- Durable IP66-rated housing for indoor and outdoor use in all weather conditions
- Smart home integration with multi-protocol communication options
Technical Product Features:
- Power range: 8 kW (single-phase)
- Battery capacity: 5–48 kWh scalable modular system
- Battery type: LFP (LiFePO₄) high-voltage technology
- Max. PV input power: up to 20 kW depending on model
- MPPT configuration: 2 or 4 MPPTs (depending on model)
- Backup output: up to 200% peak power for 10 seconds
- Max. efficiency: up to 97.6% (European efficiency up to 97.0%)
- UPS switching time: <4 ms
- Noise emission: ≤30–35 dB ultra-quiet operation
- Protection rating: IP66 (suitable for outdoor installation)
- Operating temperature range: -35°C to +60°C
- Communication interfaces: CAN, RS485, WiFi, LAN, Bluetooth
- Cooling concept: Natural convection (fanless design)
- Warranty: 10 years (inverter & battery)
-
