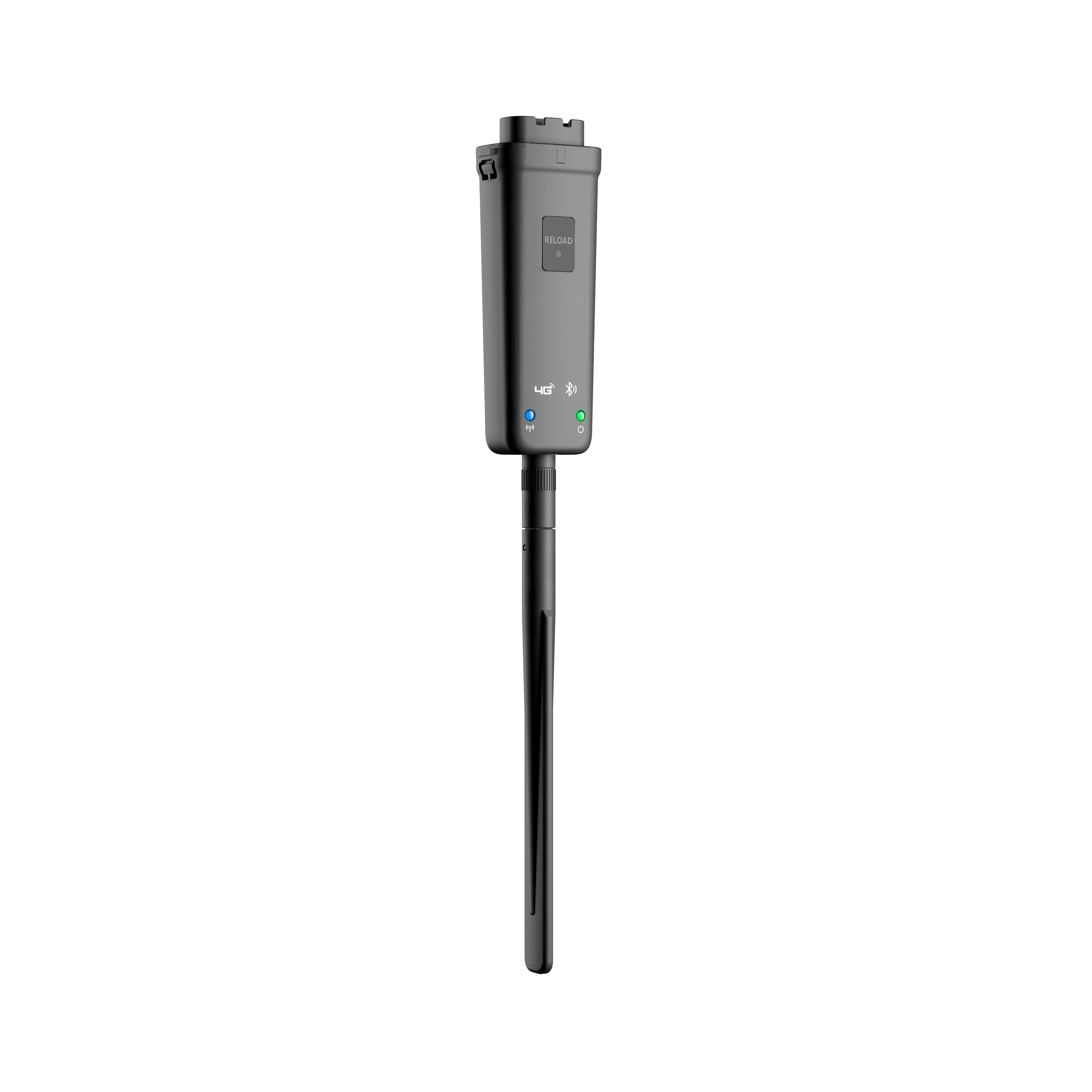

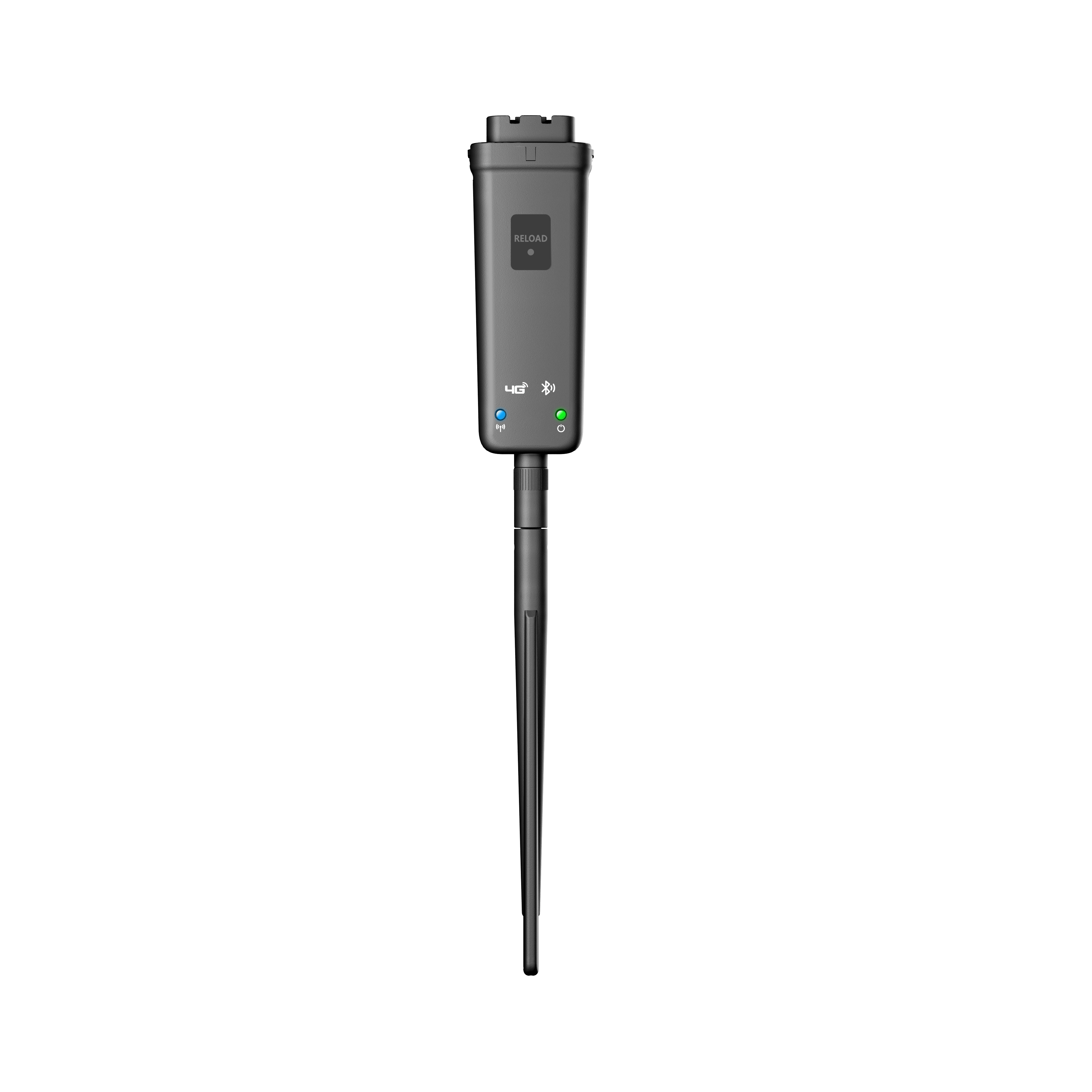

GoodWe 4G Kit-G20
| Type of manufacturer: | 4G Kit-G20 |
|---|---|
| Manufacturer Art. No.: | LGA0000-02-00P |
| Art. Nr.: | 15949 |
| Pieces per package unit: |
|
| Accessory type: | Communication |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15949
Description
GoodWe Smart Dongle 4G Kit 2.0 (4G Kit-G20)
The GoodWe Smart Dongle 4G Kit 2.0 enables stable and efficient remote monitoring of solar installations via the 4G mobile network. Thanks to its plug-and-play installation and reliable data transmission, it is the smart solution for optimal energy management – ideal for locations without Wi-Fi connectivity or as a flexible alternative to traditional network monitoring.
Product features:
- Model: 4G Kit-G20
- Max. number of connected devices: 1
- Input voltage: 5 V
- Power consumption: ≤ 5 W
- Connection interface: USB
- 4G/3G/2G mobile networks: LTE-FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66; LTE-TDD: B34/38/39/40/41; WCDMA: B1/2/4/5/6/8/19; GSM/EDGE: B2/3/5/8
- Bluetooth: Bluetooth V5.0
- Extension antenna: 4G
- Dimensions (W × H × D): 48.3 × 32.8 × 32.3 mm (with external antenna)
- Weight: 100 g (with external antenna)
- Display: 2 × LED
- Installation method: Plug and Play
- SIM card type: Micro-SIM, 15 × 12 mm
- Operating temperature range: -30 °C to +65 °C
- Storage temperature range: -40 °C to +70 °C
- Relative humidity: 0–100 %
- Ingress protection rating: IP66
- Max. operating altitude: 4,000 m
- Certification: CE-RED (EN 18031), RCM
Product benefits:
- Location-independent monitoring: Wireless monitoring via the 4G mobile network instead of Wi-Fi – works even where a stable internet connection is not available.
- Easy installation: Plug-and-play principle with no complicated setup, connects directly via USB.
- Future-proof: Complies with the current EN 18031 cyber security standard for IoT devices.
- Flexible deployment: Integrated 4G and Bluetooth modules (Bluetooth V5.0) as well as location-specific APN configuration for worldwide use.
- Fail-safe: Supports automatic resumption after an interruption – data transmission continues reliably following a disruption.
- Robust for outdoor use: IP66 protection rating and a wide operating temperature range from -30 °C to +65 °C.
- Compact and lightweight: Weighs just 100 g, with compact dimensions of 48.3 × 32.8 × 32.3 mm.
-
