GoodWe & GoodWe ET 80 (incl. DC-SPD I+II, AFCI, Wifi/Lan)
| Type of manufacturer: | GW80K-ET-G10 |
|---|---|
| Manufacturer Art. No.: | NBC0080-06-00P |
| Art. Nr.: | 15284 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Hybrid inverter, Project inverter |
| MPP-Tracker: | 8 |
| AC power: | 80 kW |
| Warranty: | 5 years |
| Communication: | LAN&WIFI&BT&RS485 |
| MPP voltage range: | 300-800 Volt |
- New
-
-
{ "id": "69f0a1412b55569699fb26f6bfdee5ea", "item_brand": "", "item_name": "GoodWe BAT112", "item_id": "13739", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "69f0a1412b55569699fb26f6bfdee5ea" } } -
{ "id": "4880fd0f22af5319916f394c42fb1197", "item_brand": "", "item_name": "GoodWe & GoodWe SEC3000C (incl. 4G)", "item_id": "14377", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "4880fd0f22af5319916f394c42fb1197" } } -
{ "id": "7d20fc6607a95d90b3a6e6545f6ca3dc", "item_brand": "", "item_name": "GoodWe & GoodWe STS Box - GW125K-STS-G10", "item_id": "14804", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7d20fc6607a95d90b3a6e6545f6ca3dc" } }
-

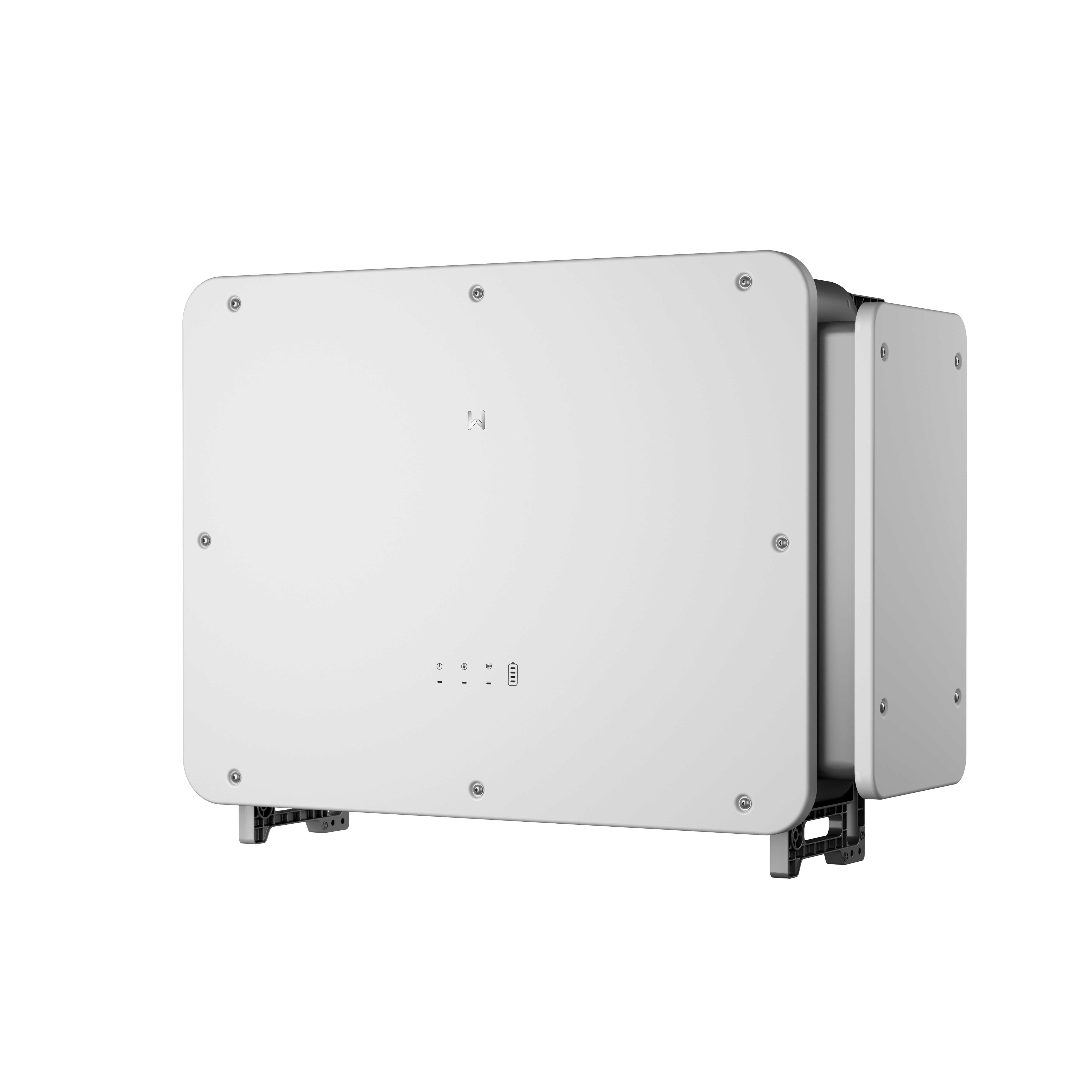

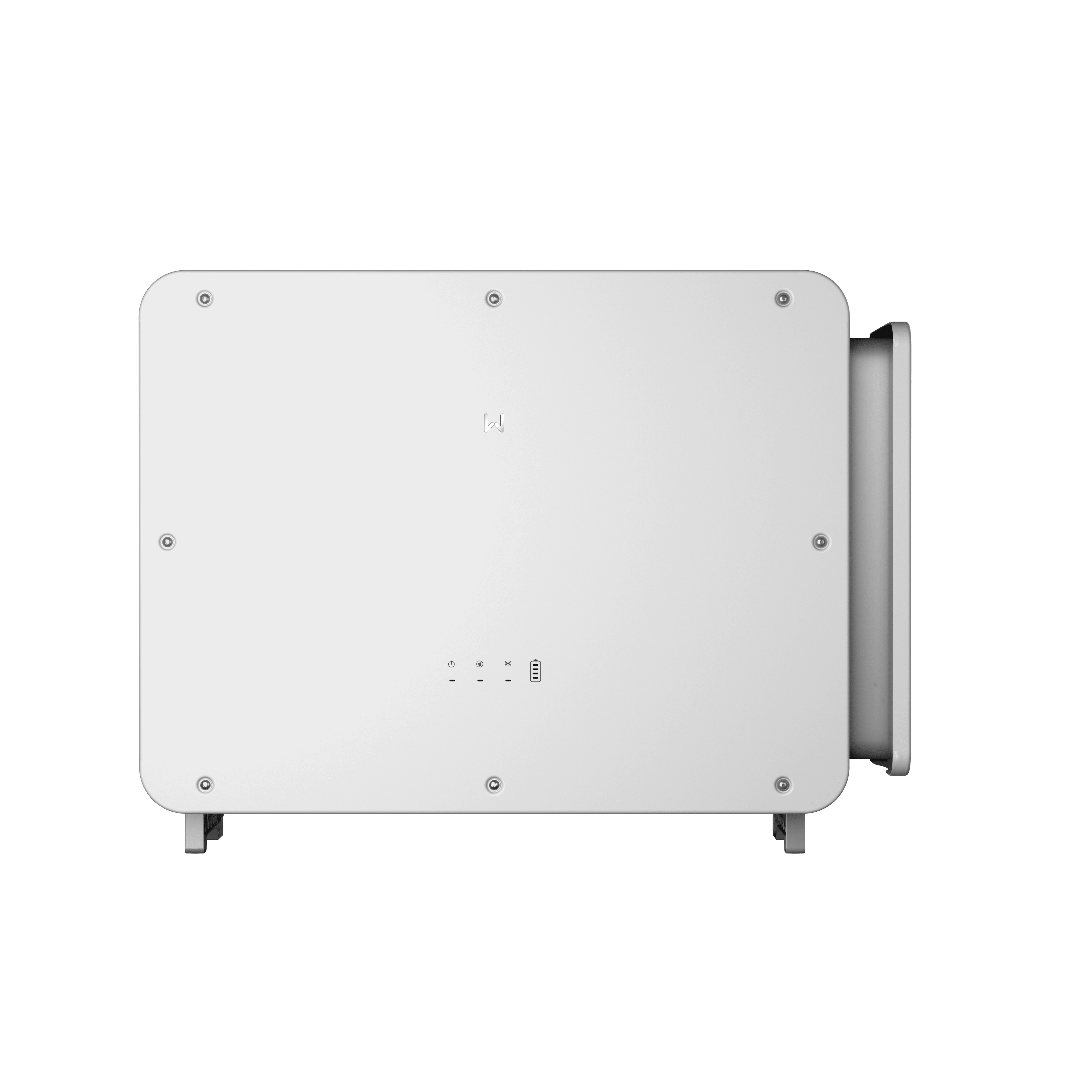

GoodWe ET 80 - GW80K-ET-G10 Hybrid
The GoodWe GW80K-ET-G10 is a high-performance hybrid inverter for large-scale commercial and industrial storage applications. It is suitable for both grid-connected and off-grid systems and, thanks to 8 MPPTs, high DC oversizing and parallel connectivity, offers maximum flexibility in system planning.
In combination with the GoodWe STS Box, the ET80 enables UPS-like switching between the grid and backup power supply. Intelligent operating modes such as Self-consumption, peak shaving and time-of-use support economically optimised energy usage. Together with the GoodWe BAT112 battery system, this creates a scalable, high-performance storage solution for C&I applications.
Purchasing a GoodWe warranty extension is now only possible directly via the GoodWe SEMS portal.
Certification in accordance with VDE-AR-N 4105 has been completed. VDE-AR-N 4110 and 4120 are currently undergoing the certification process (end of Q1/26)
Please check the relevant approvals for Austria in each case!
We recommend participating in the GoodWe Plus training course. To do so, you must first create an installer account on the GoodWe SEMS portal.
Wi-Fi/LAN Kit 2.0 and Smart meter GM330 included in the scope of delivery. The appropriate CTs with 5A secondary current must be purchased separately.
Product advantages
- Parallel connection of up to 15 units in grid-connected operation.
- UPS-like switching via STS Box.
- Up to 200% PV oversizing.
- 8 MPPTs with 42 A input current.
- Two battery inputs for large storage capacities.
- Supports up to 4 batteries in series per battery input (only with BAT112).
- Parallel connection of up to 15 Inverters in on-grid mode with SEC3000C.
Product features GW80K-ET-G10:
- AC rated power: 80 kW
- MPP trackers: 8
- String connections per MPPT: 2
- Max. input current per MPPT: 42 A
- Max. PV input power: 200 kW
- Battery voltage range: 300 to 800 V
- Number of battery inputs: 2
- Max. charging and discharging power: 88 kW
- Protection class: IP66
- Corrosion protection class: C4
- Dimensions (W x H x D): 995 x 758 x 358 mm
- Weight: approx. 97 kg
- Warranty: 5 years
-
