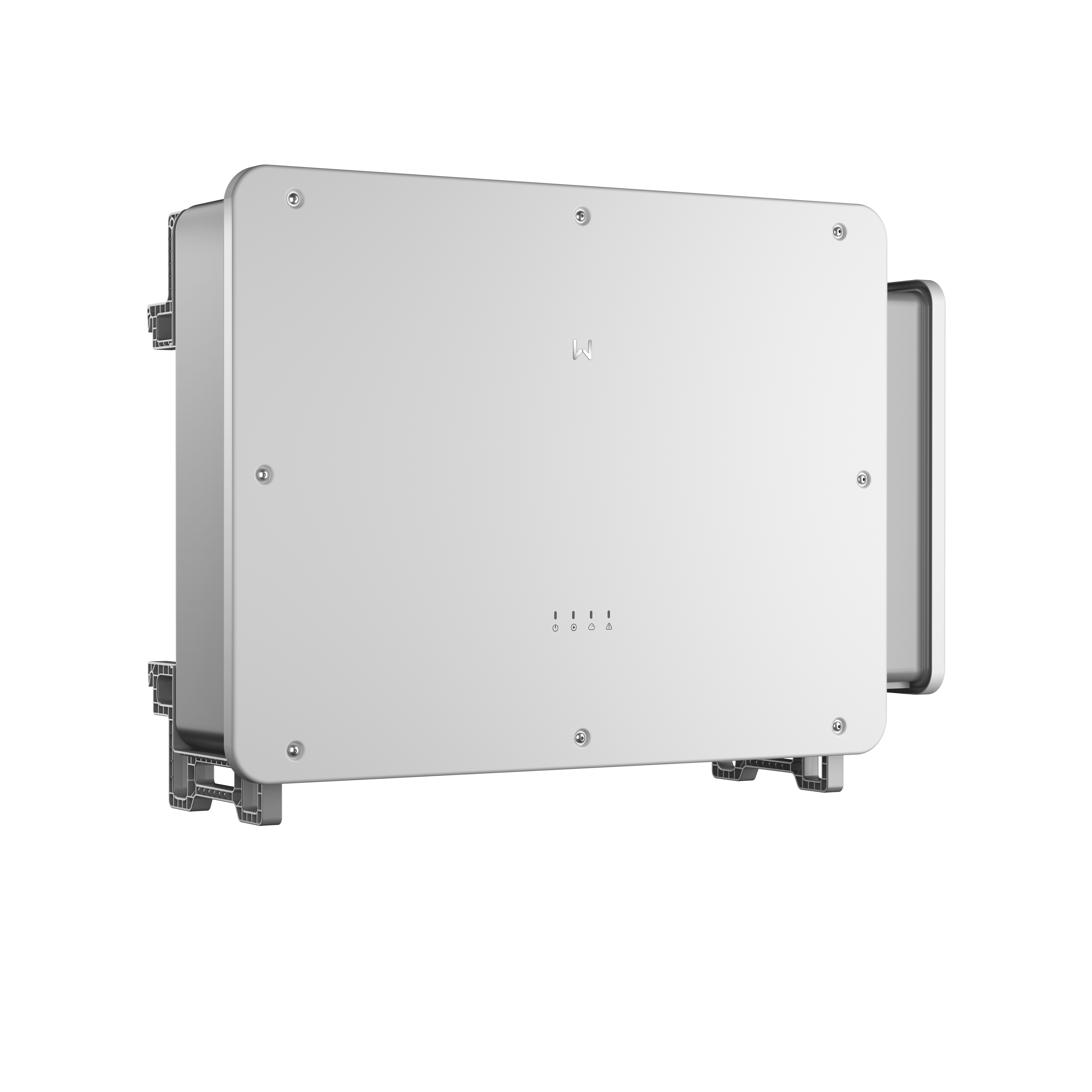

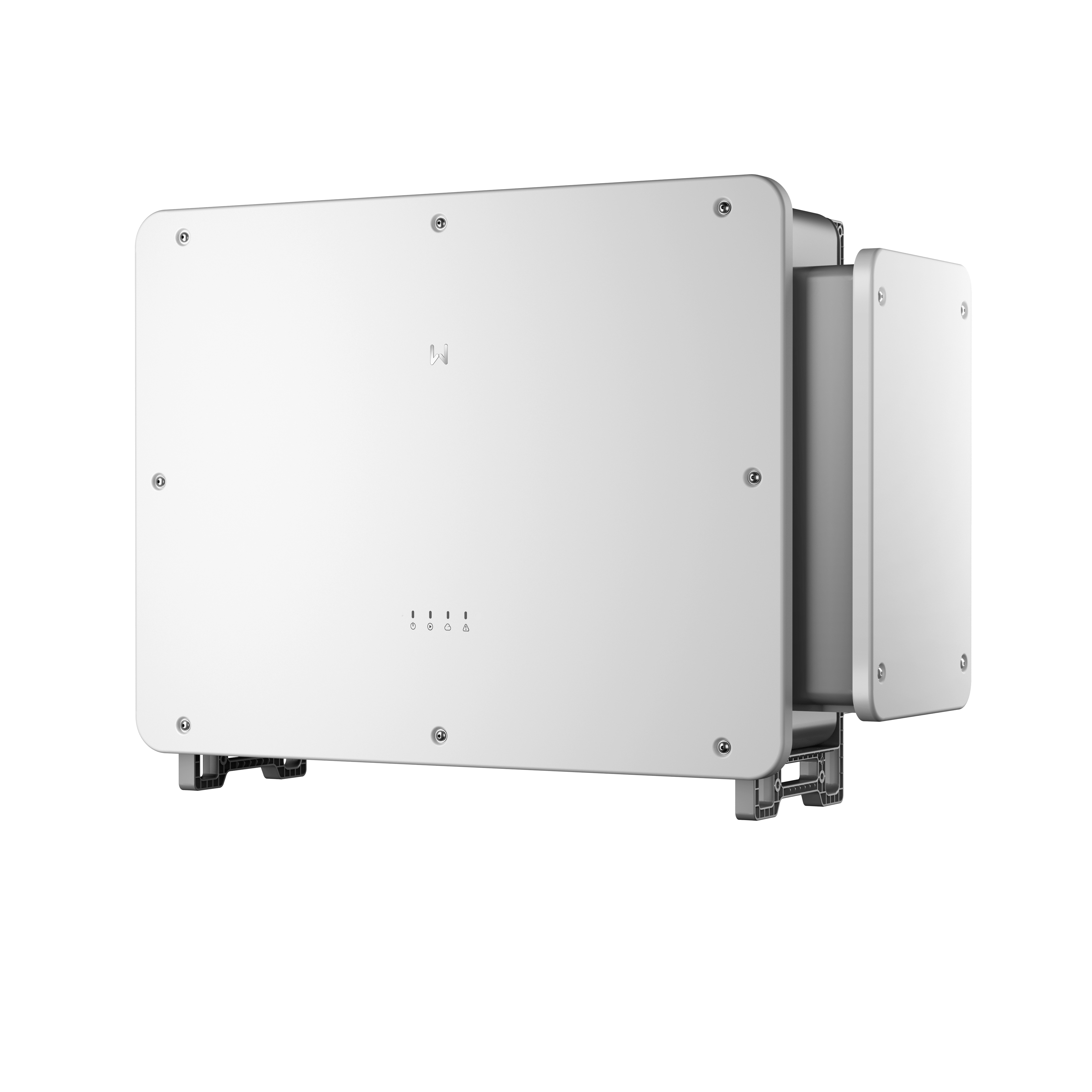

GoodWe GW150K-GT-G10
| Type of manufacturer: | GW150K-GT-G10 |
|---|---|
| Manufacturer Art. No.: | NBH150K-03-00P |
| Art. Nr.: | 15158 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 8 |
| AC power: | 150 kW |
| Warranty: | 5 years |
| Communication: | RS485, WiFi, Modbus-RTU (SunSpec-kompatibel), LAN, BT |
| MPP voltage range: | 180-1000 Volt |
Prices are only visible to business customers upon successful registration.
- New
Available from 01.09.2026
Product number:
15158
Description
The GoodWe commercial inverter with 150 kW AC power from the GT series
Purchasing a GoodWe warranty extension is now only possible directly via the GoodWe SEMS Portal.
We recommend taking part in the GoodWe Plus training course. To do so, you must first create an installer account on the GoodWe SEMS portal.
With 10 MPPT channels, the GoodWe commercial inverter offers a wide range of module configuration options. On the DC side, the inverter can be oversized by up to 180%. Thanks to its high input current of 42 A per MPPT, it is compatible with modern high-performance modules.
Product benefits
- Integrated AFCI
- PID recovery
- DC switch
- Wide MPPT voltage range from 180–1000 V
- Integrated Type 2 AC surge protection
- Integrated Type 1+2 DC surge protection
- Wall mount and WiFi module included
- Integration into the SEMS portal
- Self-cleaning fan
- Corrosion protection class C5
Product features GT - GW150K-GT
- Mains connection: 3-phase
- AC power: 150 kVA
- 180% DC oversizing
- MPP trackers: 10, each with 2 string connections
- Max. short-circuit current per MPPT: 52.5 A
- Communication: LAN, RS485, WiFi, BT
- DC connection: MC4 (4–6 mm²)
- AC connection: OT / DT terminal (max. 400 mm²)
- WiFi module included
- Setup via app
- Intelligent fan cooling (self-cleaning fan)
- Dimensions: 995 × 758 × 358 mm (HxWxD)
- Protection rating: IP 66
- Corrosion protection class C5
- Weight: 99.0 kg
- Warranty: 5 years
-
