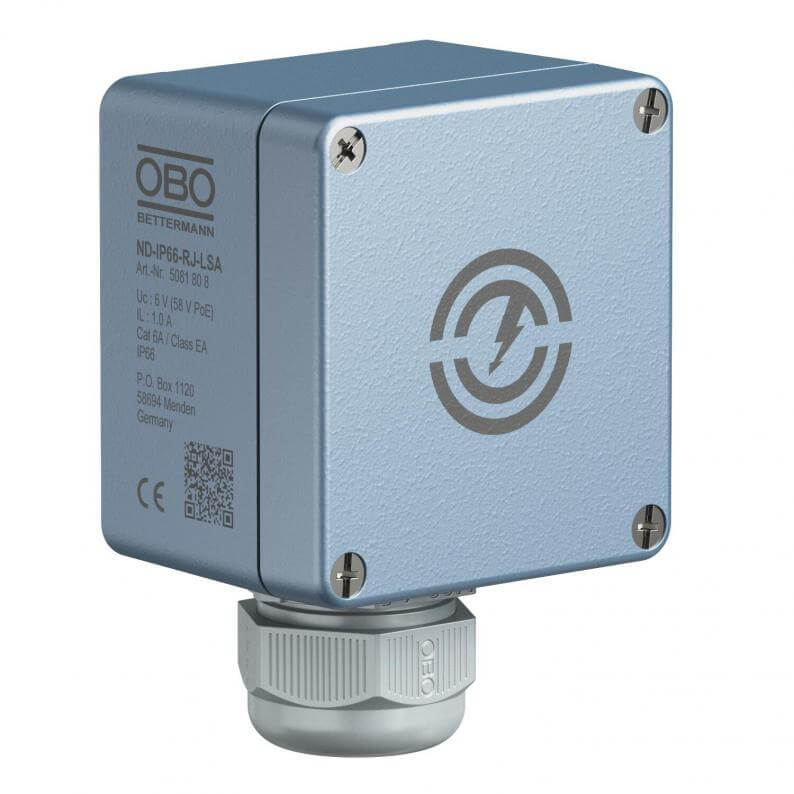

OBO surge protection for high-speed networks up to 10 Gbit (Class EA/CAT6A)
| Type of manufacturer: | ND-IP66-RJ-LSA |
|---|---|
| Manufacturer Art. No.: | 5081808 |
| Art. Nr.: | 16620 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16620
Description
Surge protection for high-speed networks up to 10 Gbit (Class EA/CAT6A)
Data line protection device for high-speed networks with a robust aluminium housing for wall and pole mounting, suitable for both indoor and outdoor use. Earthing is provided via an external PE terminal.
Application examples: 10 Gbit Ethernet, 10/100 Mbit Ethernet, PoE applications, IP camera systems, high-quality industrial installations
Product advantages
- Low protection level at high current loads
- Earthing via an external PE terminal
- Support for Power over Ethernet ++ (PoE++/4PPoE) up to 1 A in accordance with IEEE 802.3
- Tested transmission quality in networks up to 10 Gbit (Class EA) or CAT6A
- For wall and pole mounting indoors and outdoors
- Robust aluminium housing
Product features
- Unprotected connection: LSA terminal block
- Protected connection: RJ45 socket
- PoE protection level: <160V
- Protection rating (IK code): IK08
- Protection class: IP66

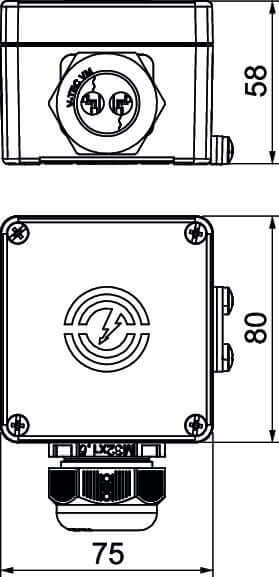

- Length: 111 mm
- Width: 75 mm
- Height: 58 mm
- Number of poles: 8
- Test standard: IEC 61643-21
- Rated voltage: 5 V
- Shield connection: yes
- Category: Type 1+2+3 / D1+C2+C1
- Operating temperature range: min. -20 °C, max. 65 °C
