Pylontech Force H3 35.84 kWh
| Art. Nr.: | 13577 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Cycles: | 8000 |
| Net capacity: | 34.05 kWh |
| Phases: | 1 |
| Solar battery type: | High voltage battery |
| Warranty: | 10 |
Prices are only visible to business customers upon successful registration.
- New
Available from stock
Product number:
13577
Description

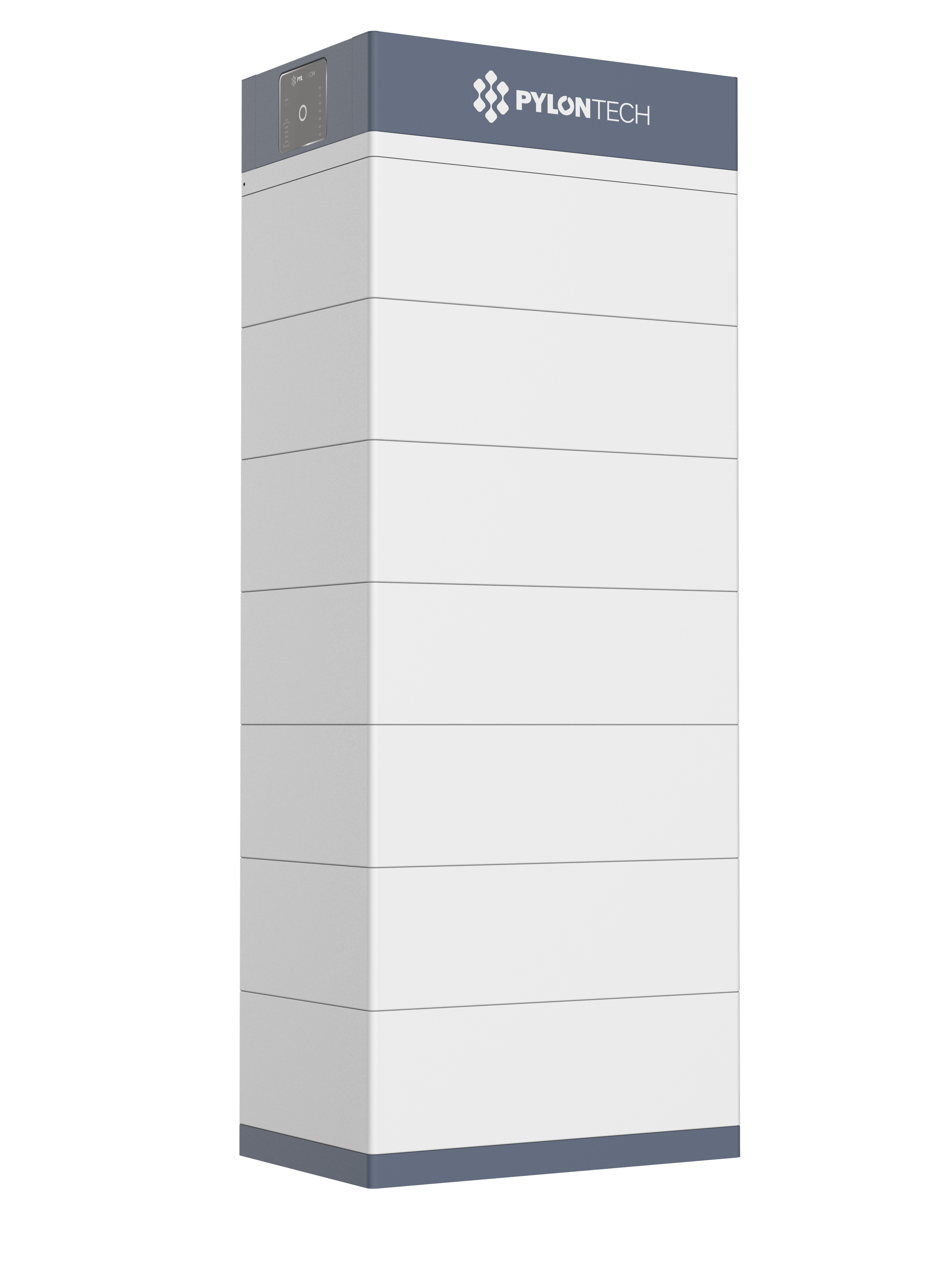

Pylontech Force H3 35.84 kWh
The Pylontech Force H3 battery is the latest version of the high-voltage storage system from Pylon. The newly designed system enables easy connection of the battery modules to each other and saves valuable time. The stacking system offers flexible configurations from 204.8 V to 716.8 V and capacities from 10.24 kWh to 215.04 kWh. Thanks to its broad compatibility with well-known inverter manufacturers such as Kostal, the Pylontech storage system can be installed in various combinations.
Product advantages Pylontech Force H3 35.84 kWh
- Flexible modular design
- 95% DOD
- 10-year warranty
- Broad inverter compatibility
Produkteigenschaften Pylontech Force H3 35.84 kWh
- Net capacity: 34.05 kWh
- Nominal voltage: 716.8 V
- Charge/discharge current: 50 A
- Max. charging / discharging current: 52 A
- Cell chemistry: LFP
- Protection category IP55
- Weight: 287 kg
- Dimensions: 1380 x 540 x 350 (HxWxD)
- Communication: CAN/RS485
Scope of delivery Pylontech Force H3 35.84 kWh
- 1x Pylontech Force-H3 FC1000 BMU control unit
- 7x Pylontech Force H3 FH10050 5.12 kWh battery module
