Solinteg MHT-12K-25
| Manufacturer Art. No.: | MHT-12K-25 |
|---|---|
| Art. Nr.: | 15777 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Asymmetric inverters, Hybrid inverter, Project inverter |
| MPP-Tracker: | 2 |
| AC power: | 12 kW |
| Warranty: | 10 years |
| Communication: | CAN, RS485 |
| MPP voltage range: | 200-950 Volt |
- New
-
-
{ "id": "c753a7aabc9057bdae6d5ae81d0e161f", "item_brand": "", "item_name": "Dyness Tower Pro TP15", "item_id": "14117", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c753a7aabc9057bdae6d5ae81d0e161f" } } -
{ "id": "5bc516ab276454d5bbe75ddf2805998f", "item_brand": "", "item_name": "Dyness Tower Pro TP19", "item_id": "14118", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5bc516ab276454d5bbe75ddf2805998f" } } -
{ "id": "ceb656f43a51591bb4df3873303dcafe", "item_brand": "", "item_name": "Dyness Stack 100 - 15.36kWh", "item_id": "14253", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ceb656f43a51591bb4df3873303dcafe" } } -
{ "id": "7f24f206d1bc583883812049314ec882", "item_brand": "", "item_name": "Dyness Stack 100 - 25.60kWh", "item_id": "14255", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7f24f206d1bc583883812049314ec882" } }
-

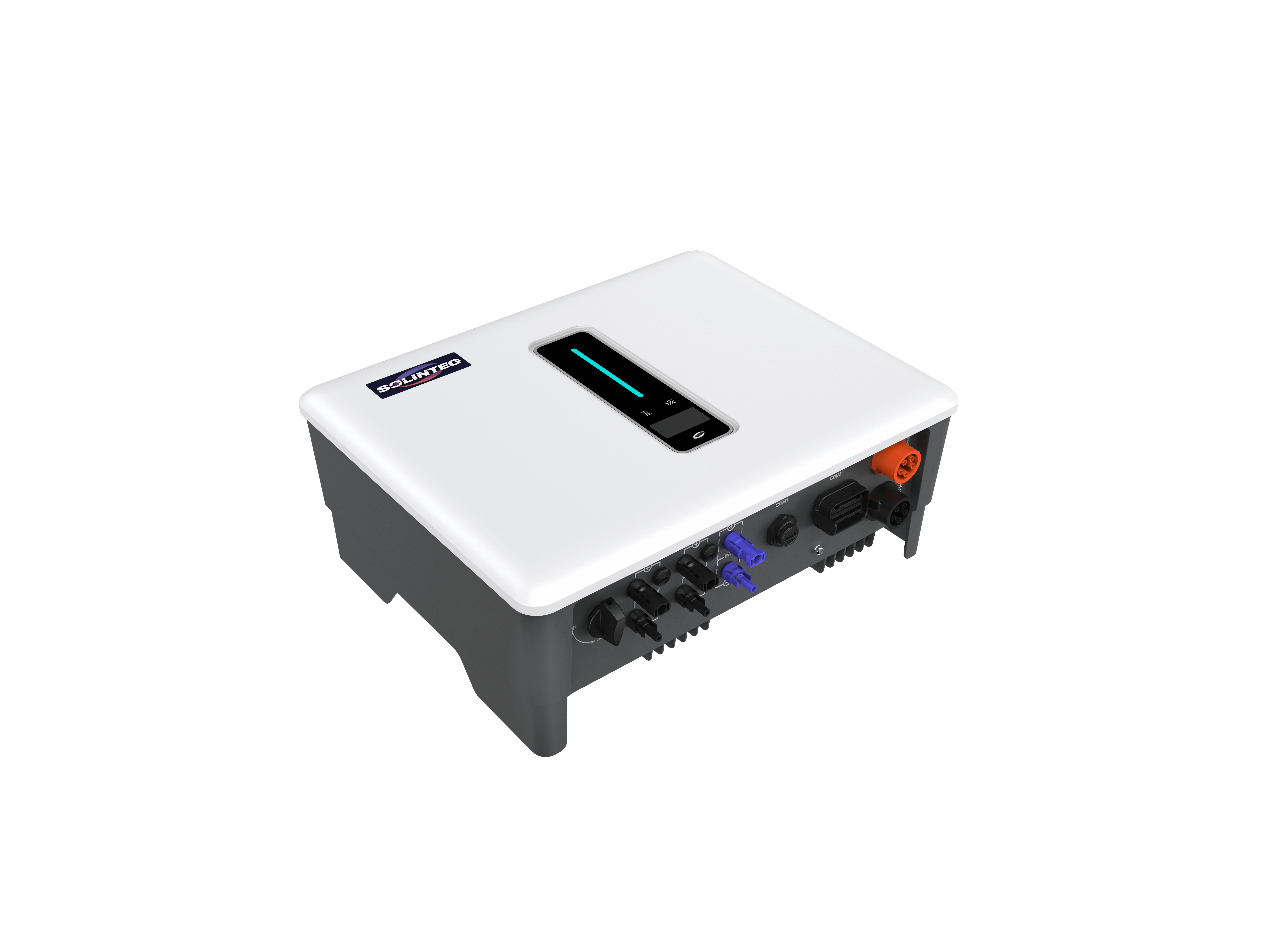

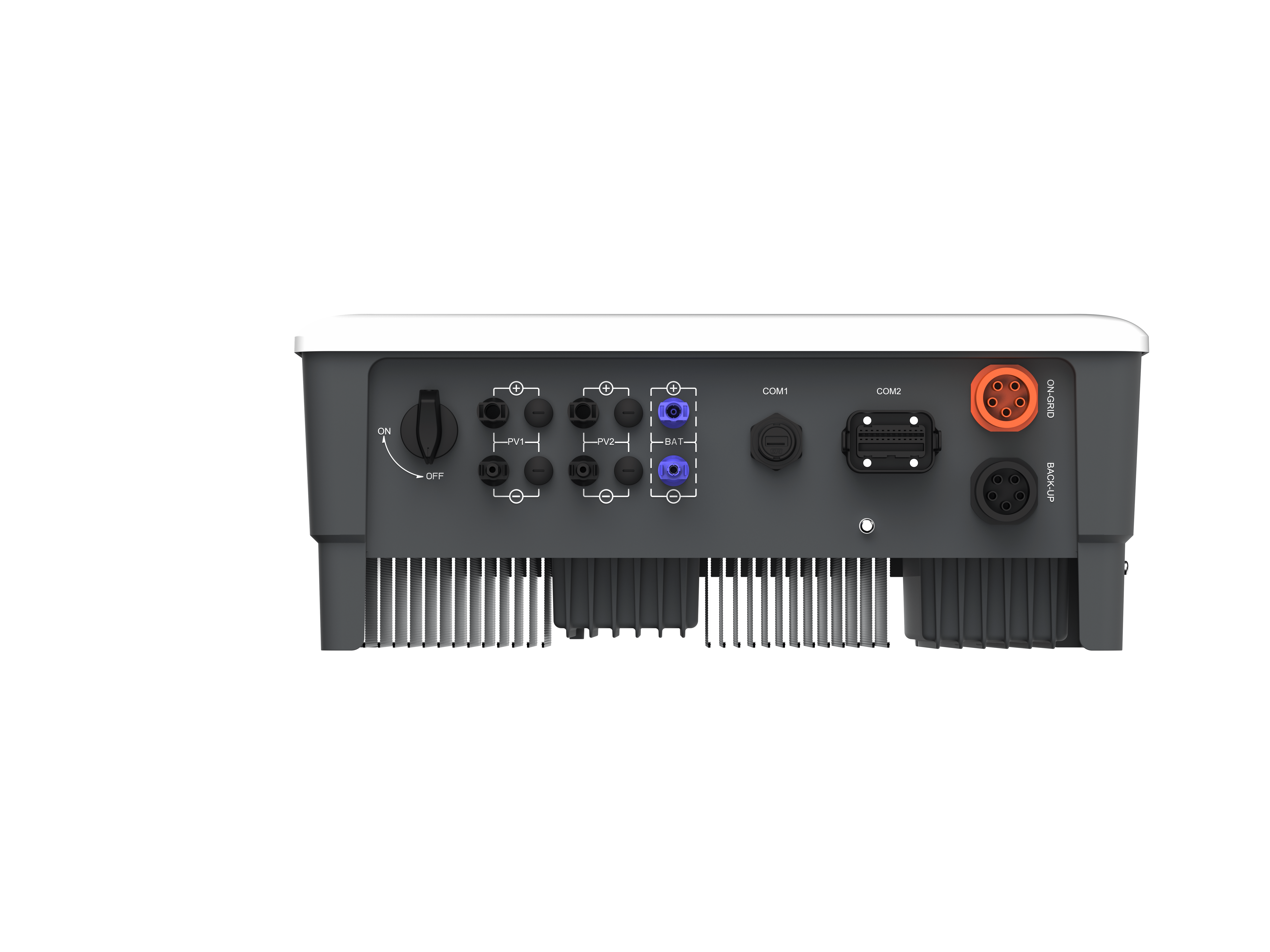

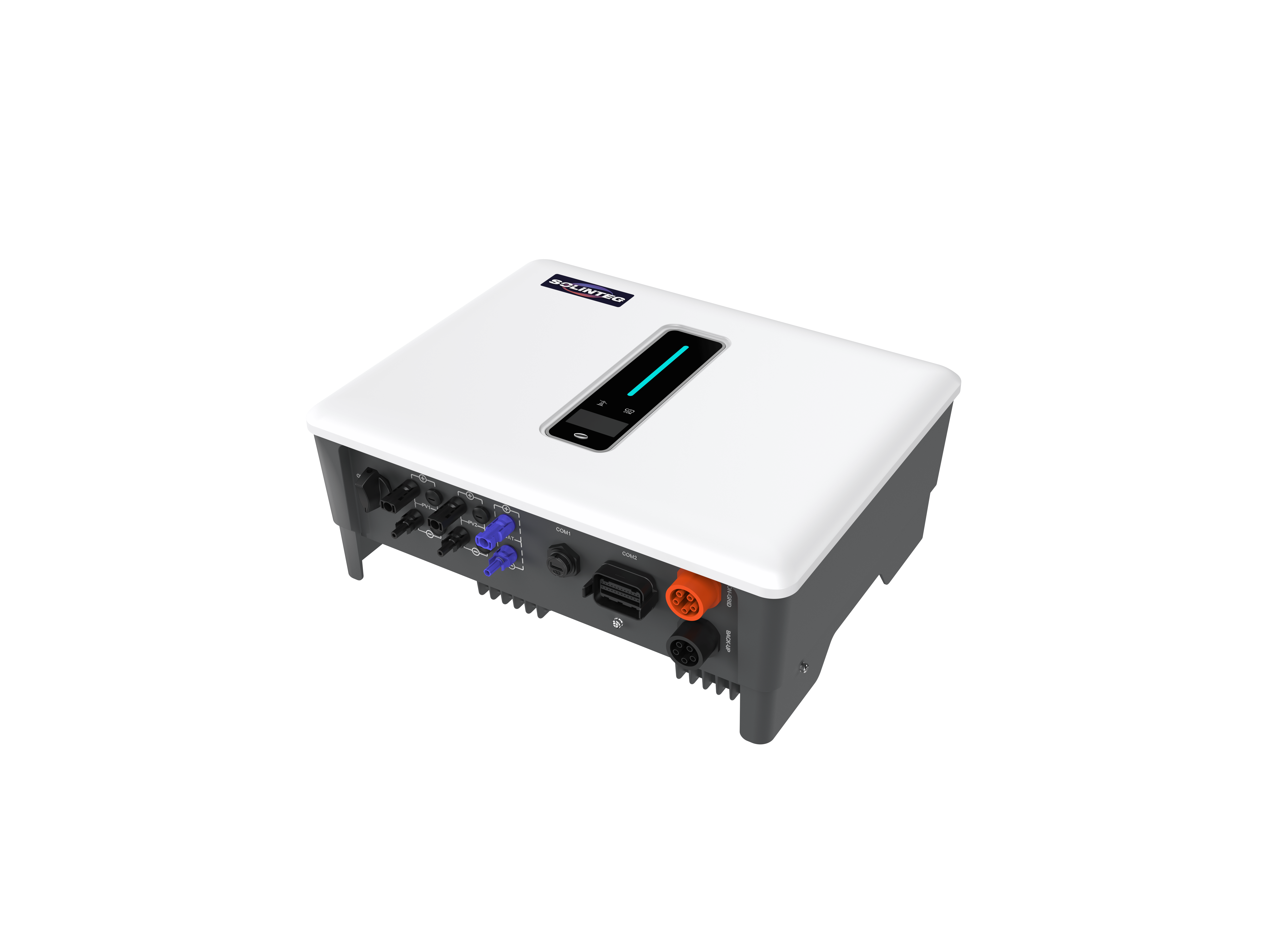

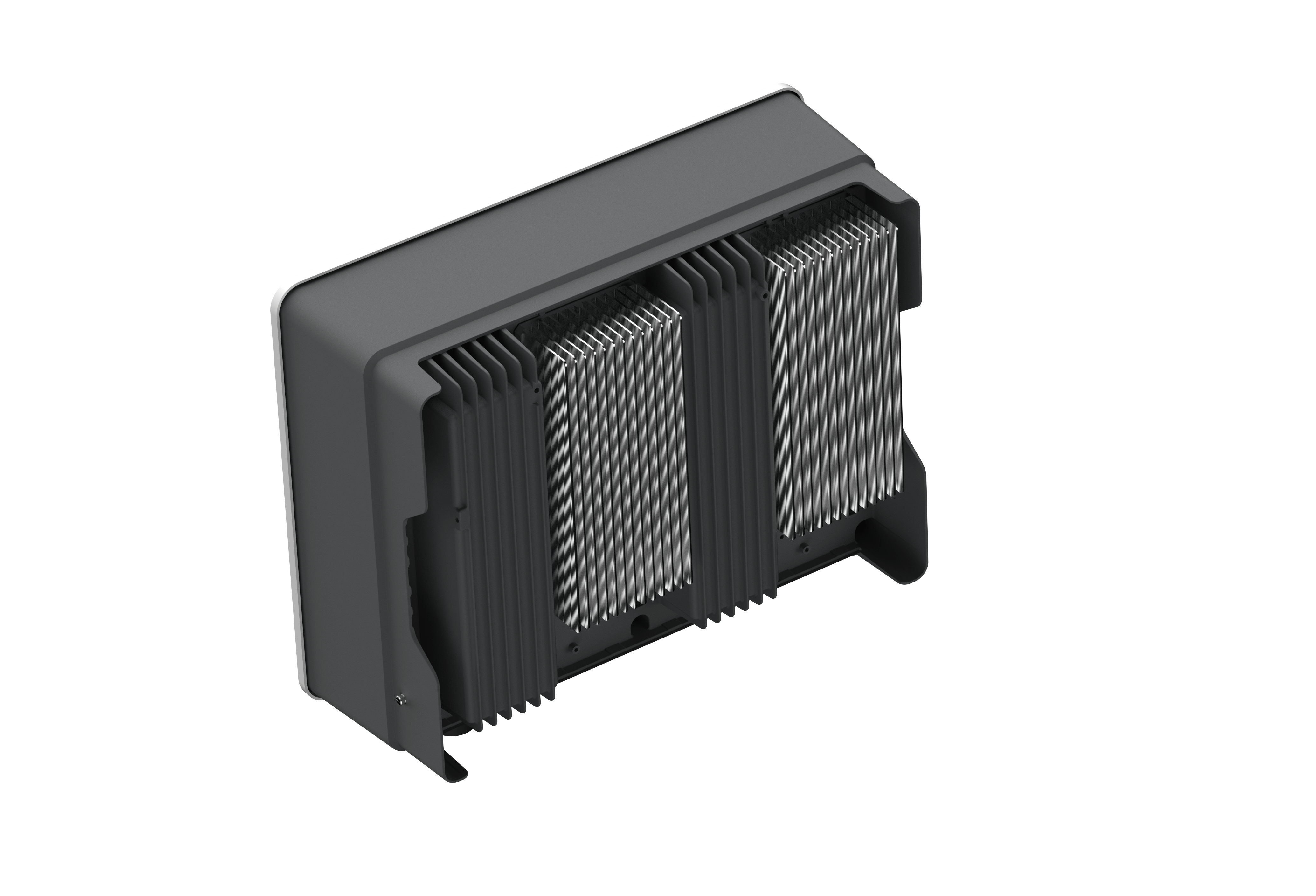

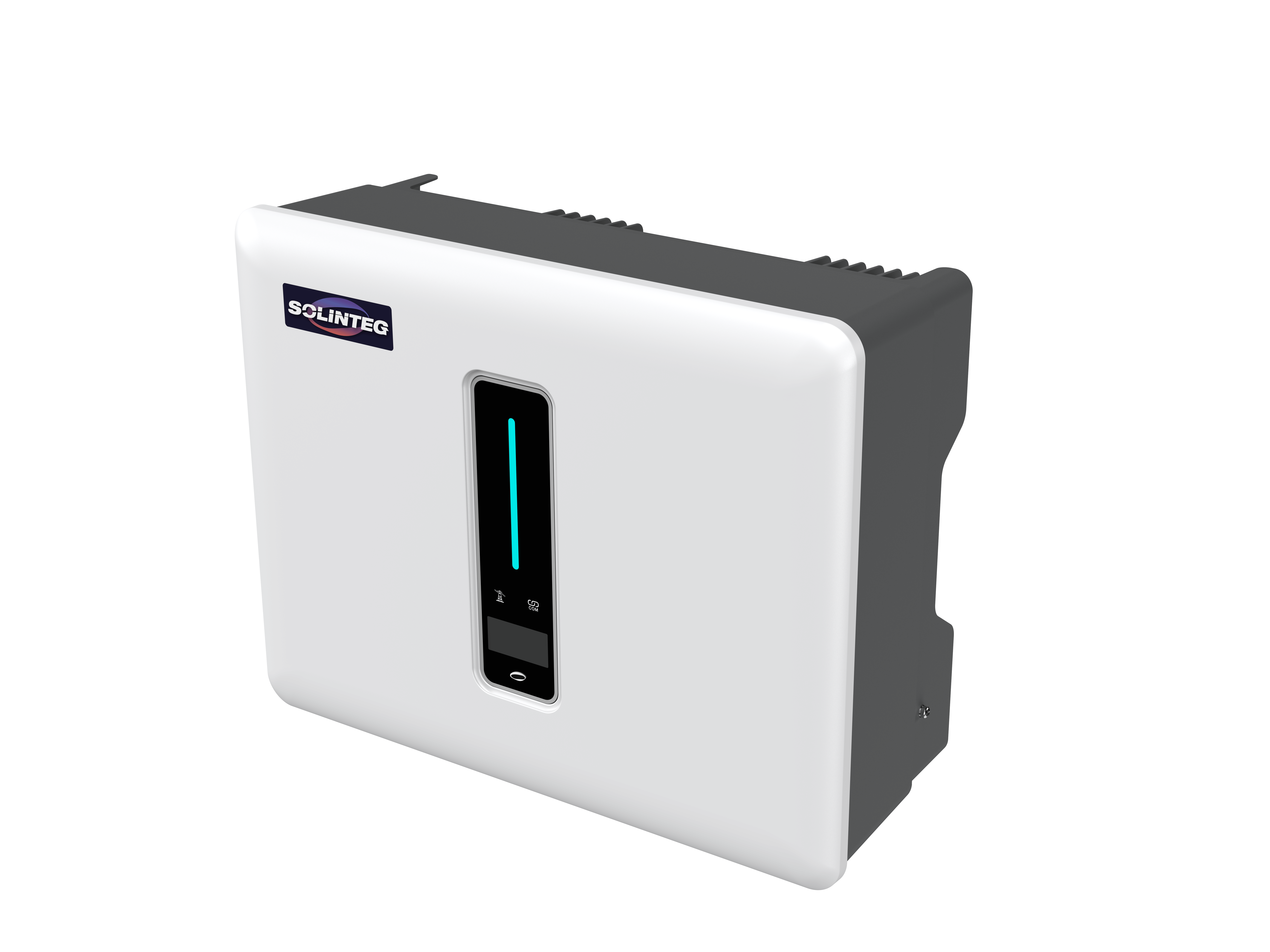

Solinteg MHT-12K-25 Hybrid Inverter 12 kW
The Solinteg MHT-12K-25 is a modern three-phase hybrid inverter designed for smaller commercial and larger domestic Photovoltaic systems. It enables the efficient combination of energy generation via photovoltaic modules, storage in batteries and a reliable emergency power supply in the event of a grid failure. Thanks to advanced energy management and high efficiency, it helps to maximise Self-consumption and increase energy self-sufficiency.
Product benefits
- Suitable for large residential buildings and high load profiles
- Supports PV systems up to 19.2 kWp
- High charging and discharging capacity for large Battery storage systems
- 160% DC oversizing for maximum solar yields
- 110% off-peak load capacity
- Back-up power function with fast switchover
- Quiet operation and compact design
Product features
- AC rated power: 12 kW
- Maximum PV generator power: 19.2 kWp
- 2 MPP trackers
- MPPT voltage range: 200–950 V
- Maximum DC input voltage: 1000 V
- Maximum input current: 15 A per MPPT
- Battery voltage range: 135–750 V
- Charging and discharging power: 12 kW
- Maximum charging and discharging current: 25 A
- Maximum efficiency: 98.2%
- European efficiency: 97.4%
- Protection class: IP65
- Communication: CAN, RS485
- Dimensions (L × W × H): 534 × 210 × 418 mm
- Weight: 27.5 kg
- Manufacturer’s warranty: 10 years
Solinteg Power Co., Ltd. is an international manufacturer specialising in the development and production of photovoltaic Inverters and energy storage systems. The company places great emphasis on modern technology, high-quality workmanship and the long-term reliability of its products. Solinteg solutions are used worldwide in residential, commercial and industrial projects and meet strict international safety and performance standards.
