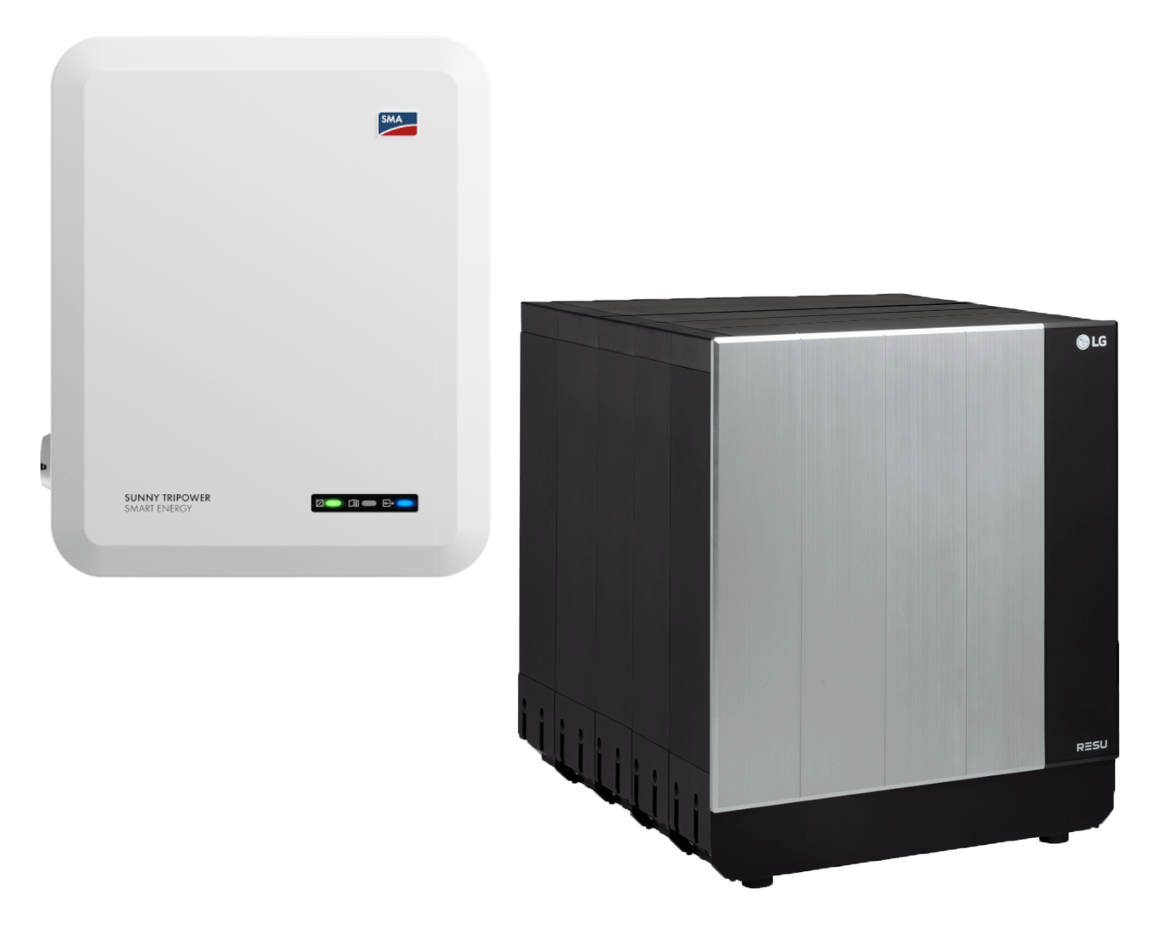

SMA & SMA Sunny Tripower 10.0 Smart Energy with LG RESU FLEX 17.2 kWh
| Art. Nr.: | 14435 |
|---|---|
| Inverter: | SMA Hybrid Sunny Tripower 10.0 Smart Energy |
| Phases: | 3 |
| Solar battery: | LG RESU FLEX 17,2 kWh |
| Net capacity: | 17.2 kWh |
| Battery type: | High volt lithium NMC |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14435
-
-
{ "id": "b46a87c7aaf65129b038aba41a9f7746", "item_brand": "", "item_name": "SMA eCharger 22 kW", "item_id": "12025", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b46a87c7aaf65129b038aba41a9f7746" } } -
{ "id": "8f0bc61305a35fc4970c642d3e9185fa", "item_brand": "", "item_name": "SMA & SMA eCharger stand, one-sided", "item_id": "13205", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8f0bc61305a35fc4970c642d3e9185fa" } } -
{ "id": "f851c43d16a85d83b49397b02bf44fe0", "item_brand": "", "item_name": "SMA Sunny Home Manager 2.0", "item_id": "2781", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f851c43d16a85d83b49397b02bf44fe0" } } -
{ "id": "3eb238c8adba5701aa0d14191e8b903a", "item_brand": "", "item_name": "SMA MOXA ioLogik E 1214 I/O module", "item_id": "8090", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3eb238c8adba5701aa0d14191e8b903a" } }
-
Description
A smart combination: the SMA Hybrid Sunny Tripower 10.0 Smart Energy and the LG RESU FLEX 17.2 kWh
Maximum independence: The SMA Hybrid Sunny Tripower 10.0 Smart Energy and the LG RESU Flex bring innovative solar and storage power to your home.
Efficient energy conversion and flexible battery capacity ensure an optimal supply and smart energy management at all times.
The perfect solution for sustainable Self-consumption, backup and future-proofing. SMA Hybrid Sunny Tripower 10.0 Smart Energy and LG RESU Flex – the smart combination for maximum solar independence. Benefit from innovative technology, a powerful battery and intelligent energy management.
Your optimal solution for sustainable supply, backup and maximum efficiency in your home.
Product benefits of the RESU FLEX 17.2:
- Modularly expandable to a maximum of 4 battery units
- Suitable for both floor and wall mounting
- Compatible with the RESU Monitor
Product features of the LG RESU FLEX 17.2
- Usable battery capacity: 17.2 kWh
- Max. charging/discharging power: 8.5 kW
- Operating temperature (charging): 10–50 °C
- Operating temperature (discharge): -10 – 50 °C
- Communication: CAN, RS485
- IP 55
- Dimensions: 665.2 x 665.2 x 148.4 mm (H x W x D)
- Weight of a battery unit: 48.9 kg
- Weight: Control unit: 16.5 kg
- Warranty: 10 years (subject to LG certification training and a constant internet connection for the battery)
Product benefits SMA Hybrid Sunny Tripower 10.0 Smart Energy
- Compatible with SMA Sunny Home Manager 2.0
- Integrated switchover device for backup power
- Black start capable
- Compatible with the SMA Energy App, 360° App and Sunny Portal
- Also stores energy from additional PV Inverters or a CHP unit
- Integrated AC and DC Type 2 overcurrent protection
Product features SMA Hybrid STP 10.0 SE
- Grid connection: 3-phase
- AC rated power: 10 kVA
- Max. power in emergency mode: 12 kVA (max. 10 s)
- MPP trackers: 2
- String connections per MPPT: 1/2
- Communication: Wi-Fi, Ethernet, CAN
- Includes 3 m battery cable with MC4 connectors
- Typical noise emissions: 30 dB(A)
- Protection class: IP 65
- Dimensions: 598 x 500 x 173 mm (H x W x D)
- Weight: 30.0 kg
- Warranty: 5 years + 5 years with online registration
Contents:
- 1 x LG RESU FLEX control unit
- 4 x RESU FLEX battery modules (4.3 kWh each)
- 1 x SMA Hybrid Sunny Tripower 10.0 Smart Energy
