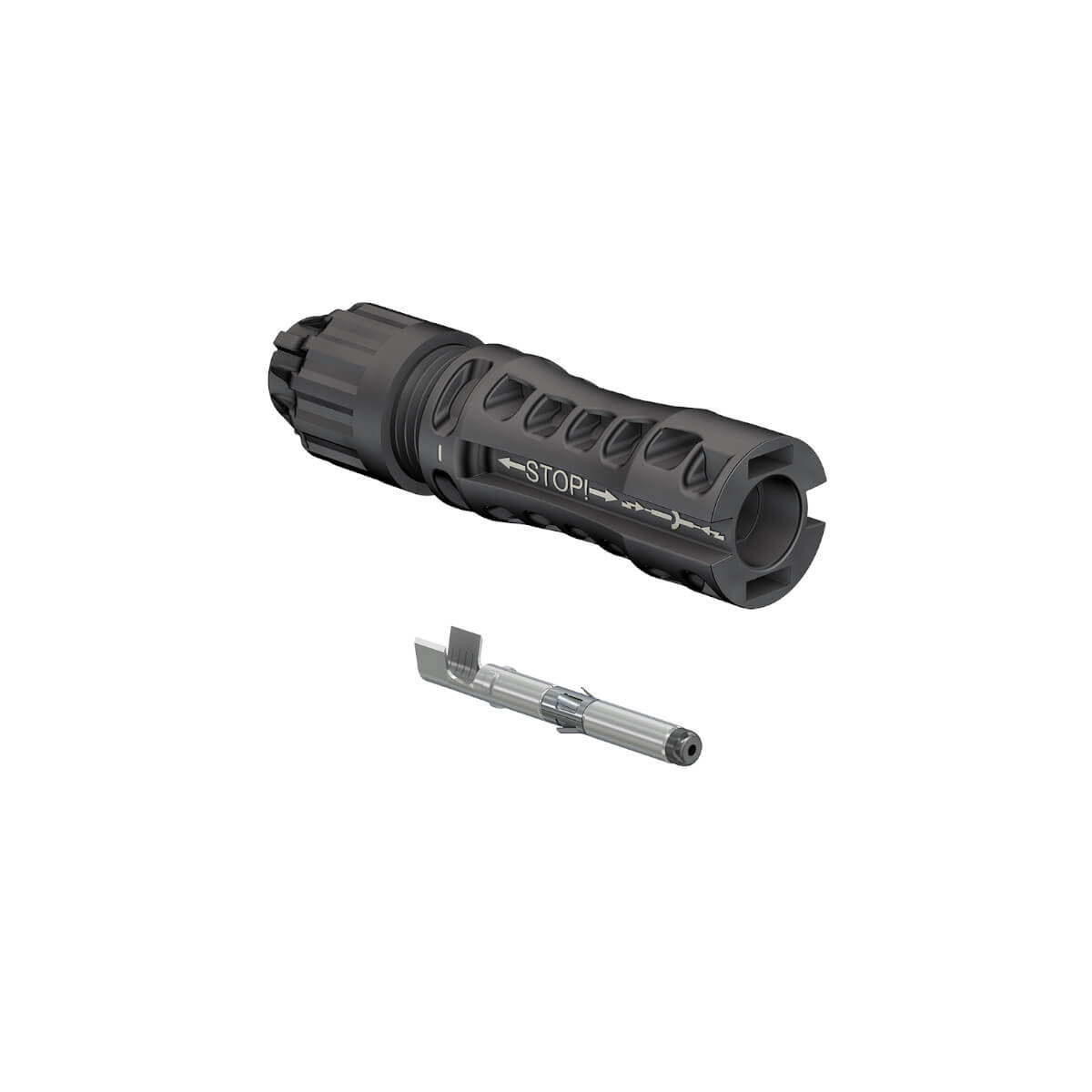

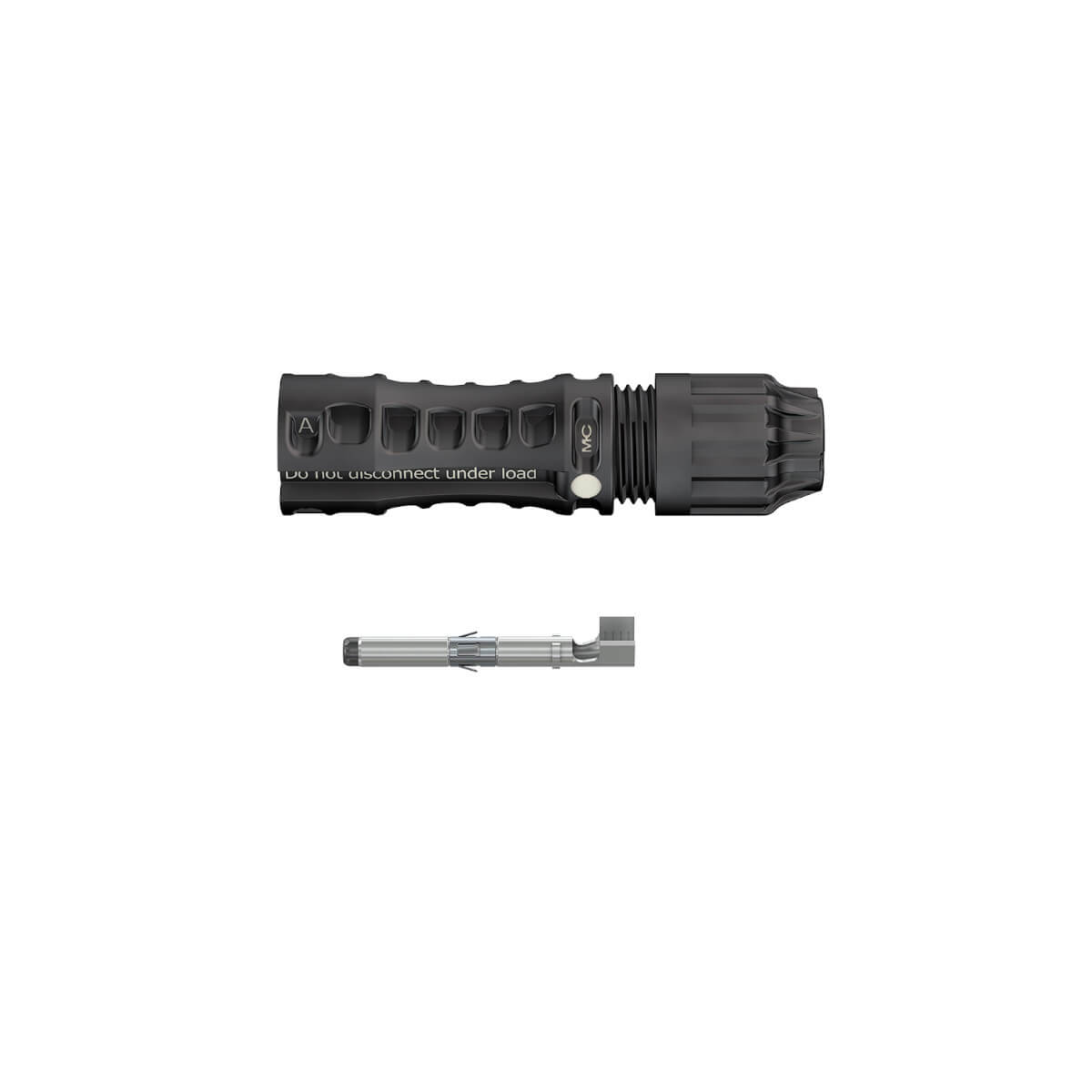

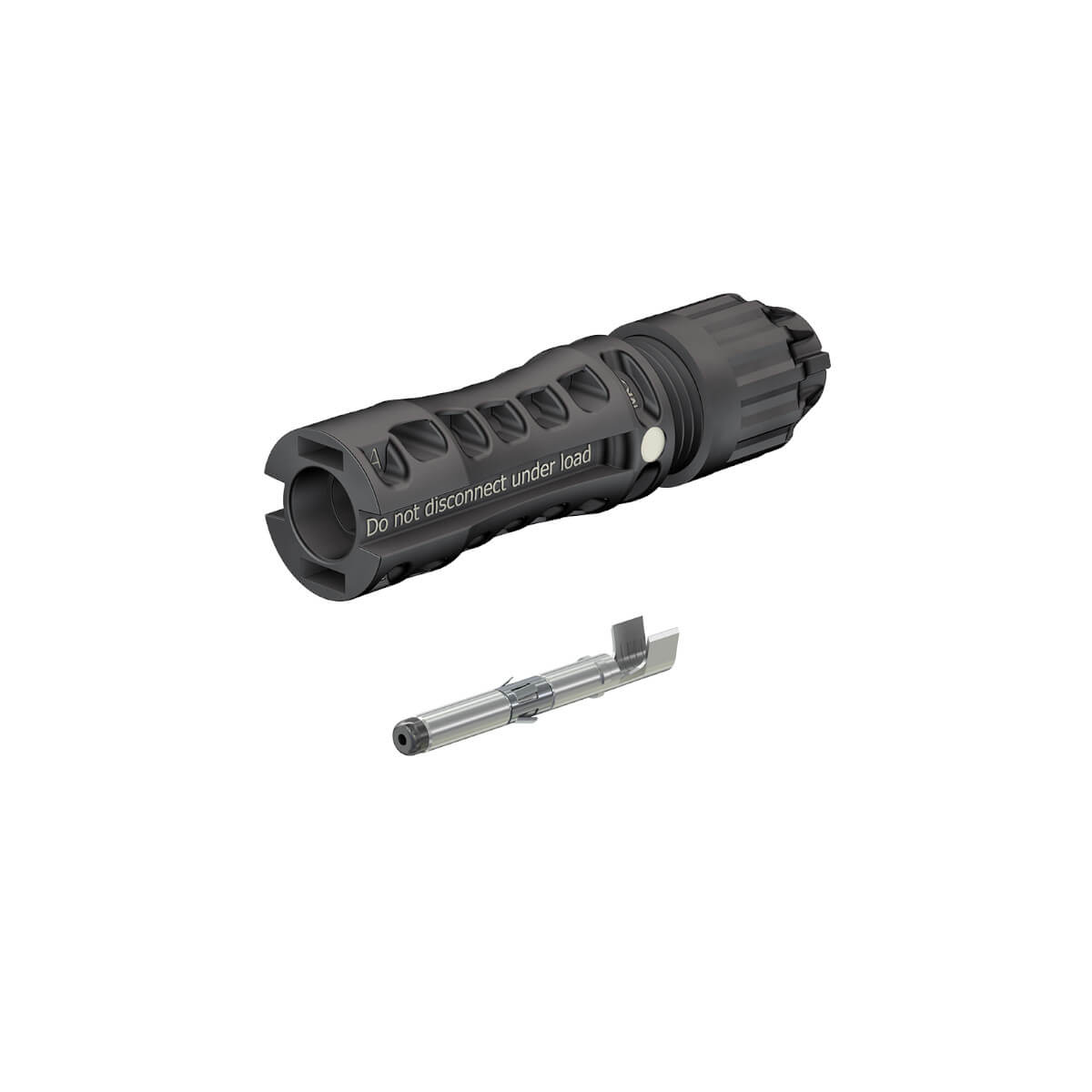

Stäubli MC4-EVO 2 plug 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm

Stäubli MC4 PV connector assembly instructions video

The YouTube video has been blocked due to the cookie settings.

Type of manufacturer:	PV-KST4-EVO 2/6I-UR
Manufacturer Art. No.:	32.0087P0001-UR
Art. Nr.:	6522
Pieces per package unit:	100 per carton
Accessory type:	Plugs

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 6522

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 6522

Tech tip

Should you make a mistake when assembling the plugs and sockets or crimp them incorrectly – the interior of the connectors is also available as a single part.

Stäubli Multi-Contact MC4-EVO 2 connector for system voltages up to 1,500 V DC and cables up to 6 mm²

This product has been discontinued. You can find the replacement product here: Stäubli MC4-EVO 2A connector 4–6 mm², DA 4.7–6.4 mm | 8940

Stäubli’s MC4 and MC4-EVO 2 connectors are a cost-effective, high-quality solution for Photovoltaic systems with DC voltages of up to 1,500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/8 AWG. The connectors comply with the requirements of IEC 61984:2008 (Connectors – Safety requirements and tests) for general low-voltage DC applications.

The scope of supply includes the housing and the internal assembly.

Product benefits

Complies with the requirements of IEC 61984:2008
TÜV certification in accordance with IEC 62852:2014 when used with suitable PV cables
UL certification to 6703:2014 in combination with suitable PV cables
Can also be used in systems outside the photovoltaic sector

Product specifications: Stäubli MC4-EVO 2 connector, 4.0–6.0 mm², Da 4.7–6.4 mm

Cable cross-section (conductor): 4 or 6 mm²
Cable outer diameter: 4.7–6.4 mm
Rated voltage: 1,500 V DC
Rated current (30°C) for a cable cross-section of 4 mm²: 51 A
Rated current (30°C) for a cable cross-section of 6 mm²: 65 A
Ambient temperature: -40 °C to +85 °C
Protection class when plugged in: IP 65

Downloads

Staubli Orignial MC4 EVO 2 Datasheet

Videos

Stäubli MC4 PV connector assembly instructions video

The YouTube video has been blocked due to the cookie settings.

Matching accessories

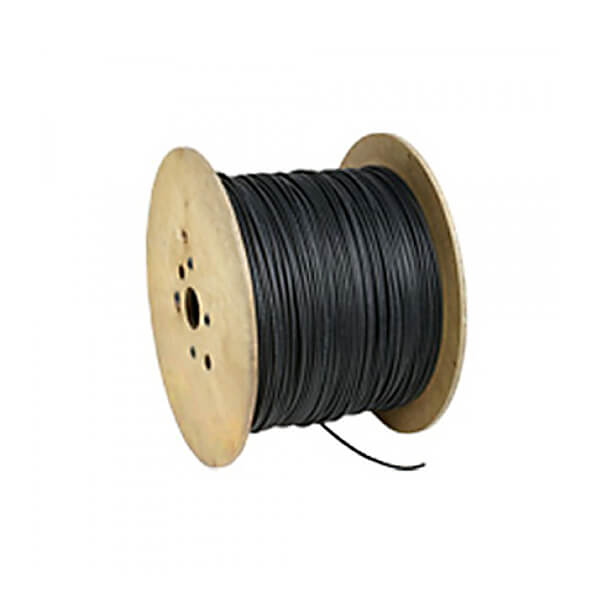

Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black

Type of manufacturer: 713531

+ expand

Art. Nr.: 5734

Sign up to view the prices

{ "id": "02eb7ea1d0a956a5b4c52598abf1754f", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black", "item_id": "5734", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "02eb7ea1d0a956a5b4c52598abf1754f" } }

Solar cable HELUKABEL Solarflex H1Z2Z2-K 4.0 mm² 500m black

Type of manufacturer: 713530

+ expand

Art. Nr.: 5756

Sign up to view the prices

{ "id": "0a9fb4bb1f255cc2b69927bd7b0c9159", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 4.0 mm² 500m black", "item_id": "5756", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0a9fb4bb1f255cc2b69927bd7b0c9159" } }

Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m red

Type of manufacturer: 713569

+ expand

Art. Nr.: 5753

Sign up to view the prices

{ "id": "26b5b256d5d05ee1b34a261745ed4e81", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m red", "item_id": "5753", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "26b5b256d5d05ee1b34a261745ed4e81" } }

Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 m² 500m blue

Type of manufacturer: 713570

+ expand

Art. Nr.: 5754

Sign up to view the prices

{ "id": "8aa3e56907415746bb6c683f70fbd8cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 m² 500m blue", "item_id": "5754", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8aa3e56907415746bb6c683f70fbd8cb" } }

Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black

Type of manufacturer: 713531

+ expand

Art. Nr.: 5752

Sign up to view the prices

{ "id": "e766b11a31cc5290a41b1e4ee29da4cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black", "item_id": "5752", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e766b11a31cc5290a41b1e4ee29da4cb" } }

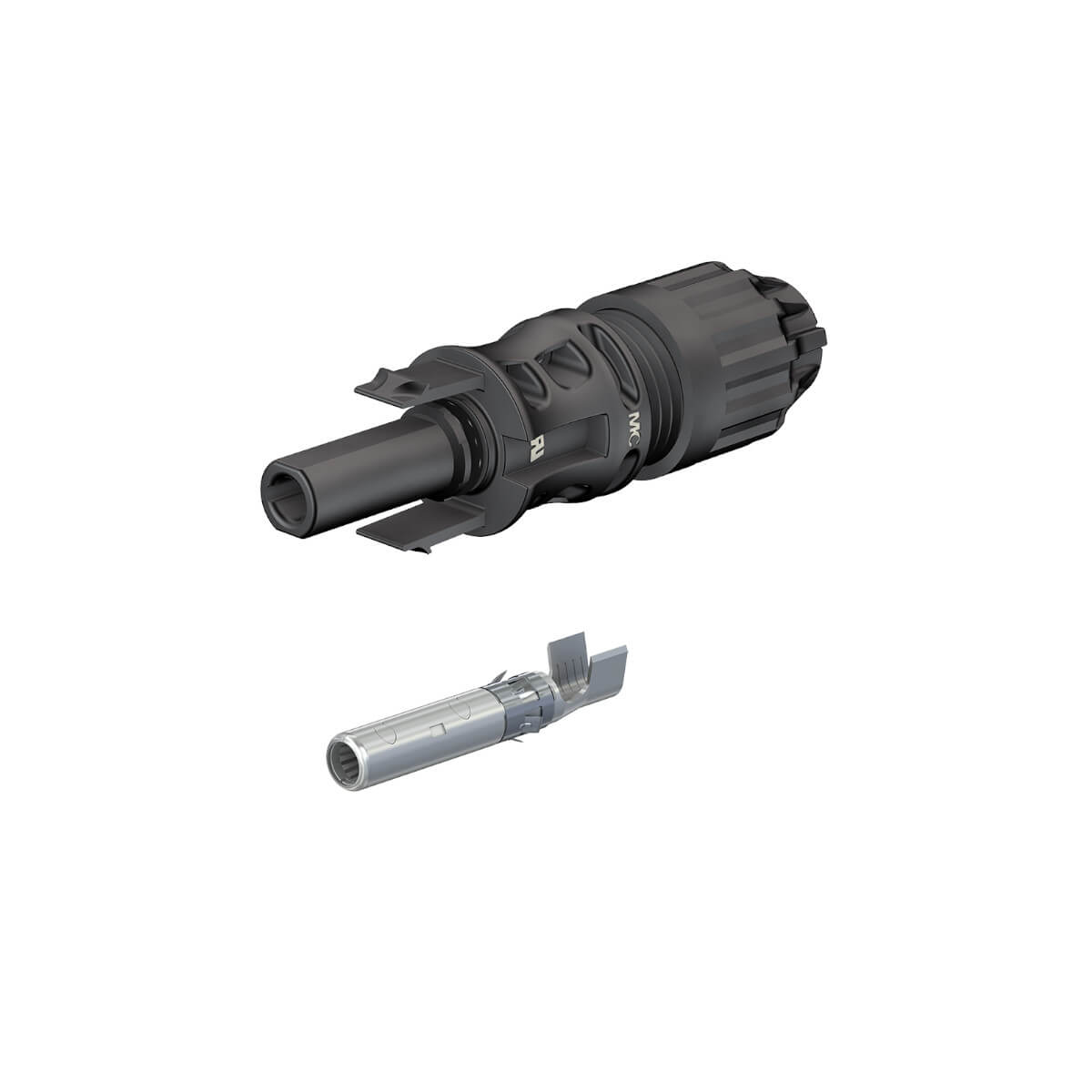

Stäubli MC4-EVO 2 socket 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm
