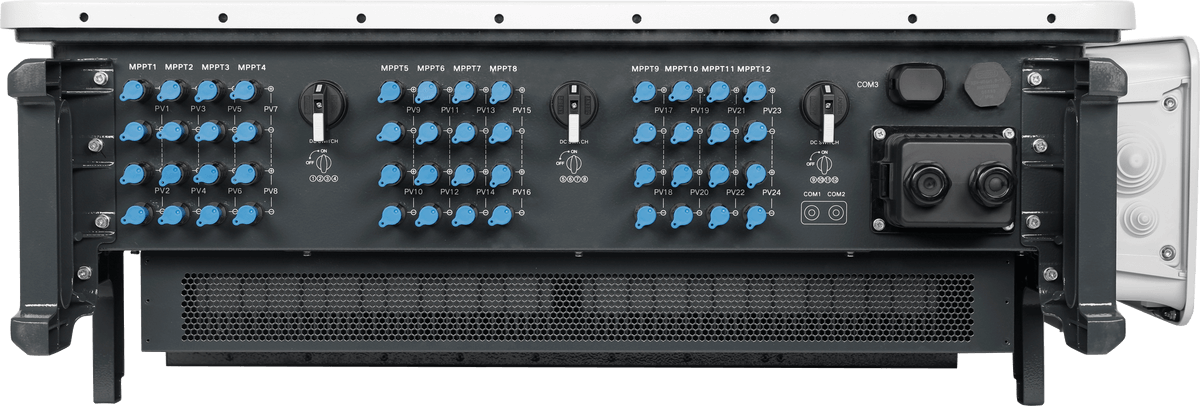

Sungrow SG125CX-P3-V1
| Type of manufacturer: | SG125CX-P3-V1 |
|---|---|
| Manufacturer Art. No.: | A0SG1286 |
| Art. Nr.: | 15898 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 10 |
| AC power: | 125 kW |
| Warranty: | 5 years |
| Communication: | RS485, WiFi und Ethernet optional |
| MPP voltage range: | 180-1100 Volt |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15898
Description
Sungrow SG125CX - P3 - V1: the perfect Inverter for your projects
In Austria, please check local approval requirements!
The CX-P2 series is not compatible with the EyeM4 dongle.
Not compatible with Sungrow optimisers.
Warranty extensions with the following details:
Company details (address, VAT number and contact person)
Inverter type
Inverter
serial number Duration of the warranty extension
Request directly from servicecommercialdistribution@sungrow-emea.com.
The Com100E data logger is currently still required for RSE.
Sungrow has been developing products for the PV industry since 1997 and has become the world’s leading manufacturer of Inverters. To date, Sungrow has installed over 224 GW of Inverter capacity worldwide and is a leading manufacturer of project Inverters in Europe.
Product benefits
- Certified to both VDE-AR-N 4105 and 4110/4120. (see download section)
- Status LED
- Input voltage range of 180–1100 V
- High efficiency of up to 98.5%
- Temperature-controlled intelligent forced-air cooling
- DC overvoltage protection, Types 1 and 2
- AC overvoltage protection, Type 2
- Arc fault circuit interrupter (AFCI)
- With integrated isolator switch
Product features: Sungrow SG125CX Premium
- 125 kVA, 3-phase
- 10 MPP trackers 180–1100 V
- 2 MC4-Evo2 (max. 6 mm²) inputs per MPPT
- 1 x RS485
- Communication & monitoring via optional Sungrow WiNet-S Communication Dongle or COM100E
- Dimensions: 1020 x 795 x 360 mm
- Protection class: IP66
- Noise emission: 73 dB(A)
- Weight: 87 kg
The perfect choice for medium-sized and large installations, such as those often found in commercial or agricultural settings.
-
