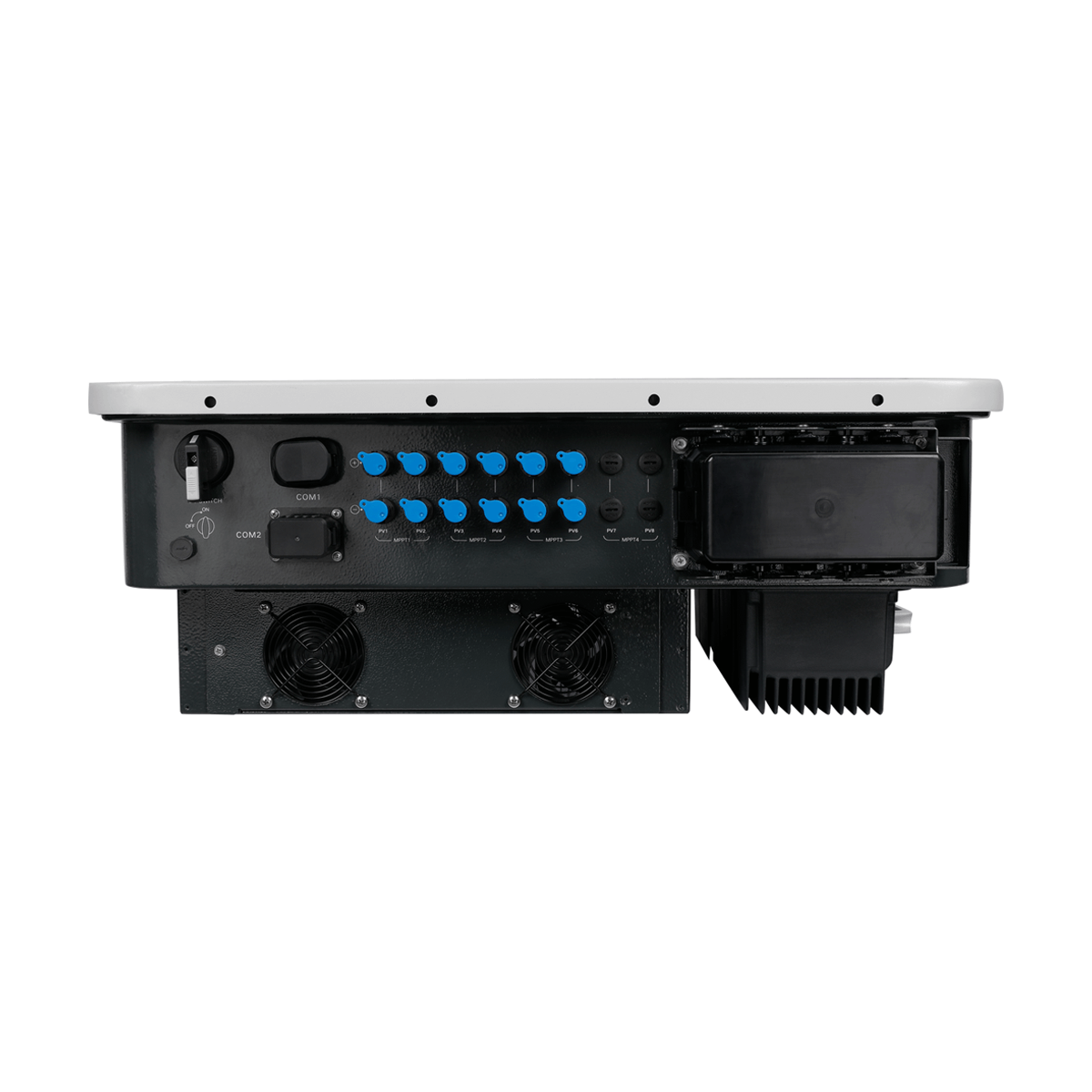

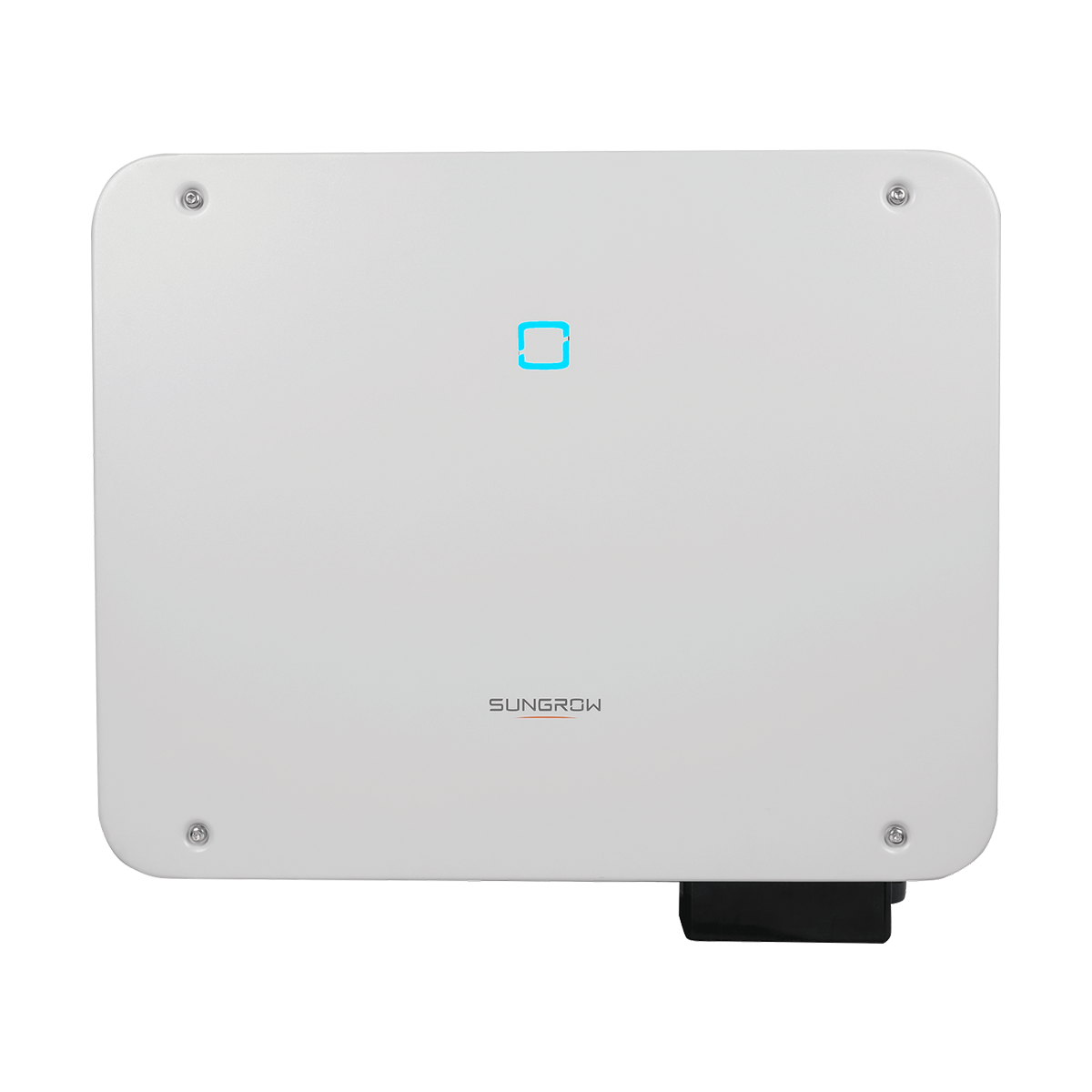

Sungrow SG33CX-P2
| Type of manufacturer: | SG33CX-P2 |
|---|---|
| Manufacturer Art. No.: | ASG01764 |
| Art. Nr.: | 8814 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 3 |
| AC power: | 33 kW |
| Warranty: | 5 years |
| Communication: | RS485, WiFi und Ethernet optional |
| MPP voltage range: | 160-1000 Volt |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- New
Available from 05.01.2026
Product number:
8814
Description
Sungrow SG33CX-P2 – the perfect inverter for your projects
External network and system protection solution with mains voltage sensor according to VDE 4105 possible!
Radio ripple control receiver must be implemented externally via a data logger!
In Austria, please check local regulatory requirements!
The next generation commercial inverter from Sungrow is here! The new SG33-50CX P2 series focuses on uniformity while offering a lot of innovation. The SG33CX-P2 has 3 MPP trackers with EVO2 DC connections for up to 6 strings. Thanks to 30 A DC input per MPPT, all power categories can be integrated.
Product advantages
- Status LED
- Input voltage range of 500-1500 V
- High efficiency of up to 98.7%
- Temperature controlled active cooling
- DC surge protection type 1 + 2
- AC surge protection type 2
- External network and system protection solution with mains voltage sensor according to VDE 4105 possible
Product features Sungrow SG33CX-P2
- 33 kVA output 3-phase
- 3 MPP trackers
- 2 MC4 inputs per MPPT
- EVO2 DC plug (max. 6 mm2)
- 30 A per MPPT
- 1 x RS485 / optional: Wi-Fi, Ethernet
- Communication & monitoring via optional Sungrow WiNet-S communication dongle
- Dimensions: 645 * 575 * 245 mm
- Protection category: IP66
- Weight: 38 kg
The perfect choice for medium and large systems often used in commercial or agricultural applications.
-
Matching accessories
-

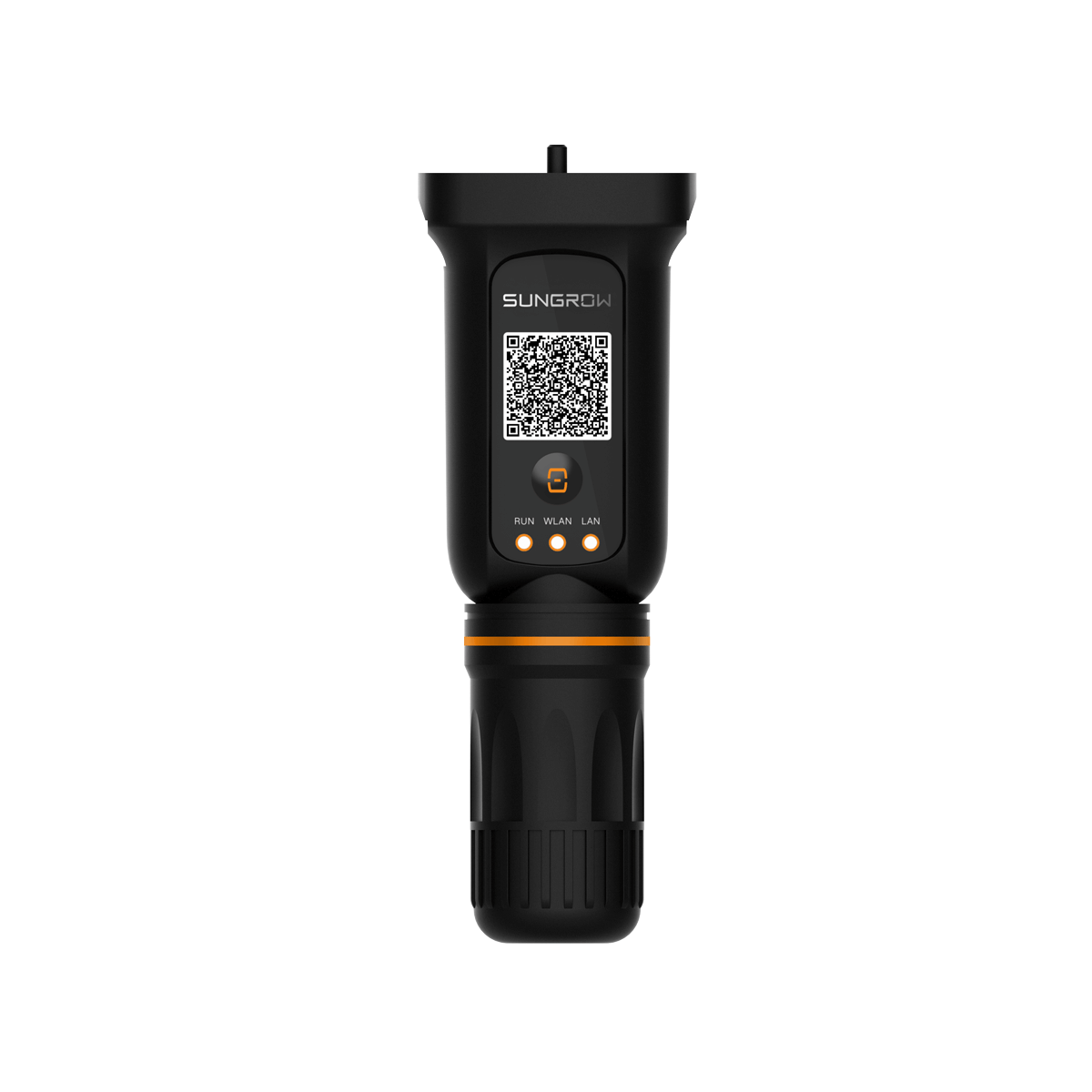

Sungrow WiNet-S2 Communication Module- Type of manufacturer: WiNet-S
- Art. Nr.: 12531
Available from stock{ "id": "3946c417b5765e75b0df8cb850cc99fd", "item_brand": "", "item_name": "Sungrow WiNet-S2 Communication Module", "item_id": "12531", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3946c417b5765e75b0df8cb850cc99fd" } } -
Bender grid and plant protection guard VMD460-NA- Type of manufacturer: VMD460-NA-D-2
- Art. Nr.: 3698
Available from stock{ "id": "47ea88e4b8f55740a3faf0f29f347fb8", "item_brand": "", "item_name": "Bender grid and plant protection guard VMD460-NA", "item_id": "3698", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "47ea88e4b8f55740a3faf0f29f347fb8" } } -
Sungrow 3-phase energy meter 6 A for external measuring transformers- Type of manufacturer: DTSD1352-C/1(6)A
- Art. Nr.: 6905
Available from stock{ "id": "76ef2187959b5f1bbe436f711a99351b", "item_brand": "", "item_name": "Sungrow 3-phase energy meter 6 A for external measuring transformers ", "item_id": "6905", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "76ef2187959b5f1bbe436f711a99351b" } } -

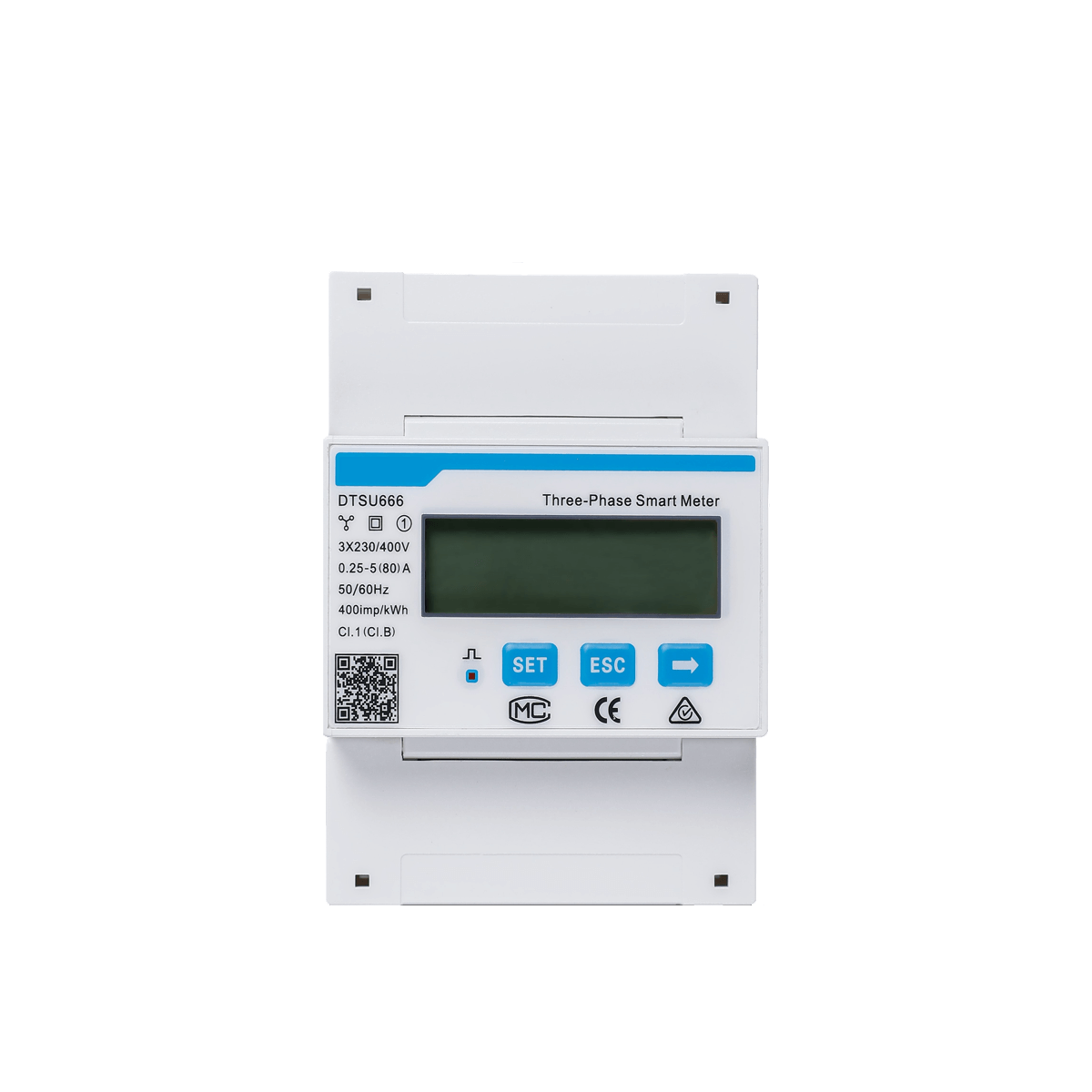

Sungrow 3-phase meter 80 A- Type of manufacturer: DTSU666
