Sungrow & Sungrow SG150CX
| Type of manufacturer: | SG150CX-V12 |
|---|---|
| Manufacturer Art. No.: | A0SG0179 |
| Art. Nr.: | 14614 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 7 |
| AC power: | 150 kW |
| Warranty: | 5 years |
| Communication: | RS485, WiFi und Ethernet optional |
| MPP voltage range: | 180-1000 Volt |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14614
Description
Sungrow SG150CX: the perfect Inverter for your projects
In Austria, please check local approval requirements!
Compatible with Sungrow optimisers.
Warranty extensions with the following details:
Company details (address, VAT number and contact person)
Inverter type
Inverter
serial number Duration of the warranty extension
Request directly from servicecommercialdistribution@sungrow-emea.com.
The Com100E data logger is currently still required for RSE.
Sungrow has been developing products for the PV industry since 1997 and has become the world’s leading manufacturer of Inverters. To date, Sungrow has installed over 224 GW of Inverter capacity worldwide and is a leading manufacturer of project Inverters in Europe.
Product benefits
- Certified to both VDE-AR-N 4105 and 4110/4120. (see download section)
- Status LED
- Input voltage range of 180–1000 V
- High efficiency of up to 98.8%
- Temperature-controlled intelligent forced-air cooling
- DC surge protection type 1 + 2
- AC surge protection Type 2
- Arc fault circuit interrupter (AFCI)
- With integrated coupling switch
Product features Sungrow SG150CX Premium
- 150 kW / 165 kVA power, 3-phase
- 7 MPP trackers 180–1000 V, 3 strings per MPPT
- DC connection: MC4-Evo2 (max. 6 mm²)
- 1 x RS485
- Communication & monitoring via optional Sungrow WiNet-S Communication Dongle or COM100E
- Dimensions: 1025 x 795 x 360 mm
- Protection class: IP66
- Noise emission: 73 dB(A)
- Weight: 100 kg
The perfect choice for medium and large-scale installations, such as those often found in commercial or agricultural settings.
-
Matching accessories
-
Stäubli MC4-EVO 2 socket, 4-6 mm², diameter 6.4 – 8.4mm- Type of manufacturer: PV-KBT4-EVO 2/6II-UR
- Art. Nr.: 8926
Available from stock{ "id": "5d23eb607d67554ab18a63efaa5cc16c", "item_brand": "", "item_name": "Stäubli MC4-EVO 2 socket, 4-6 mm², diameter 6.4 – 8.4mm", "item_id": "8926", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5d23eb607d67554ab18a63efaa5cc16c" } } -
Stäubli MC4-EVO 2 socket 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm- Type of manufacturer: PV-KBT4-EVO 2/6I-UR
- Art. Nr.: 6521
Available from stock{ "id": "fa509b3807ed5f9c84860bf3d494deec", "item_brand": "", "item_name": "Stäubli MC4-EVO 2 socket 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm ", "item_id": "6521", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "fa509b3807ed5f9c84860bf3d494deec" } } -
Sungrow WiNet-S2 Communication Module- Type of manufacturer: WiNet-S
- Art. Nr.: 12531
Available from stock{ "id": "3946c417b5765e75b0df8cb850cc99fd", "item_brand": "", "item_name": "Sungrow WiNet-S2 Communication Module", "item_id": "12531", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3946c417b5765e75b0df8cb850cc99fd" } } -
Sungrow & Sungrow 3-phase meter 6 A indirect for external instrument transformers- Type of manufacturer: DTSD1352-C/1(6)A
- Art. Nr.: 6905
Available from stock{ "id": "76ef2187959b5f1bbe436f711a99351b", "item_brand": "", "item_name": "Sungrow & Sungrow 3-phase meter 6 A indirect for external instrument transformers", "item_id": "6905", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "76ef2187959b5f1bbe436f711a99351b" } } -

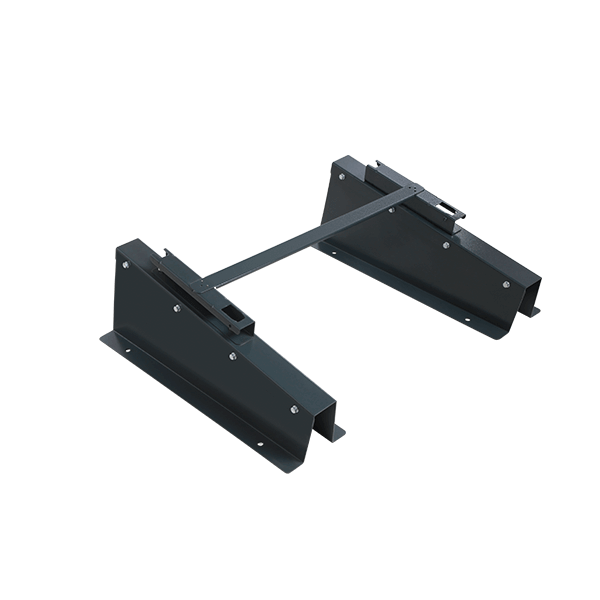

Sungrow & Sungrow X Rack for SG125CX-P2- Type of manufacturer: BB005721
