Trina 435 TSM-NEG9R.28 Vertex S+ double glass

Type of manufacturer: TSM-435-NEG9RC.27
Manufacturer Art. No.: TSM-435-NEGR9RC.27
Art. Nr.: 11065
Pieces per package unit:
  • per pallet
  • per container
Backsheet: Transparent
Dimensions: 1762 × 1134 × 30 mm
Frame color: Black
Power: 435 Watt
Solar panel type: BiFacial, Glass-glass solar panels, Mono solar panels
Technology: TOPCon
Warranty: 25 years
WEEE-Number:
  • DE48644664
Prices are only visible to business customers upon successful registration.
  • % Sale
Available from stock
Product number: 11065
Prices are only visible to business customers upon successful registration.
  • % Sale
Available from stock
Product number: 11065
Description

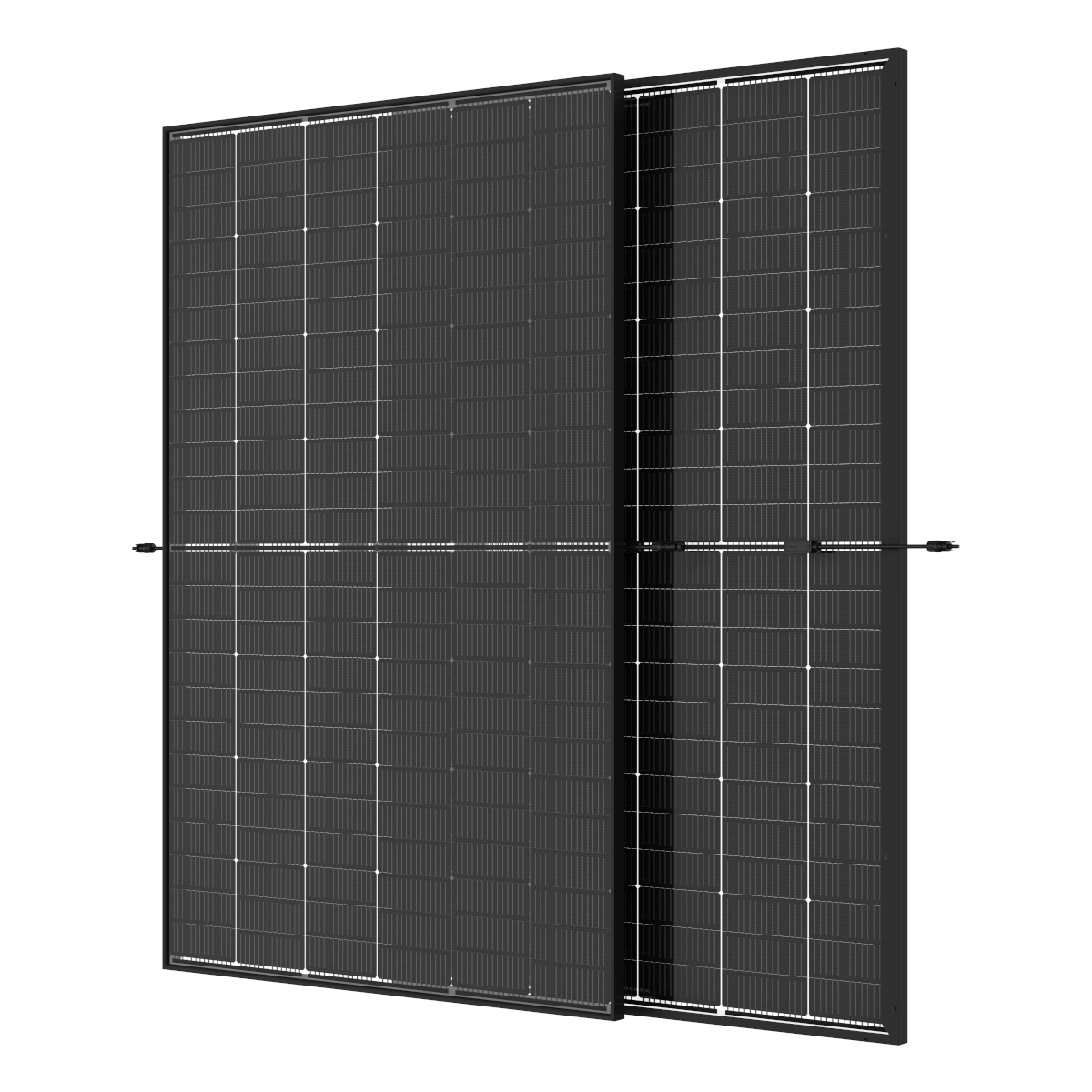

Vertex S+ 435 watts bi-facial, n-type module, Black Frame

Trina is launching the new Vertex S+ series of PV modules. The Vertex S+ series is Trina's first product to offer a 25-year product warranty at launch. The new high-performance module achieves an output power of up to 435 W with small space requirements. Multi-busbar technology is integrated, which serves to improve the light-catching effect, reduce series resistance and improve current consumption. This double glass module has a performance guarantee of 30 years. The Vertex S+ series is flexible in use and intended for both residential and commercial applications.

Product advantages

  • Excellent resistance to fire and in difficult environmental conditions
  • N-type technology with 1% degradation in the first year and 0.4% in years 2-30
  • Multi busbar technologie
  • 30 mm frame height, very stable
  • System design and planning is exactly the same as previously known
  • 25 years product warranty on manufacturing
  • 30 years performance guarantee

Product features Trina 435 TSM-NEG9.28 Vertex S+ double glass

  • 435 Wp
  • 144 mono-crystalline cells
  • Efficiency: 21.8 %
  • Black module frame
  • Transparent back sheet
  • Dimensions: 1762 × 1134 × 30 mm (H x W x D)
  • Weight: 21.0 kg
  • Connector: MC4 EVO2/TS4
  • Cable length at the module: 1100 mm (vertical orientation)
  • Snow load up to 6,000 Pa
  • Wind load up to 4,000 Pa
  • Power temperature coefficient: -0.30%/°C
  • Does NOT have A1 fire safety certificate
