Alumero easyPITCH EF35 Eco roof hook
| Manufacturer Art. No.: | 802515 |
|---|---|
| Art. Nr.: | 16362 |
| Pieces per package unit: |
|
| Product type: | Roof hook |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16362
Description

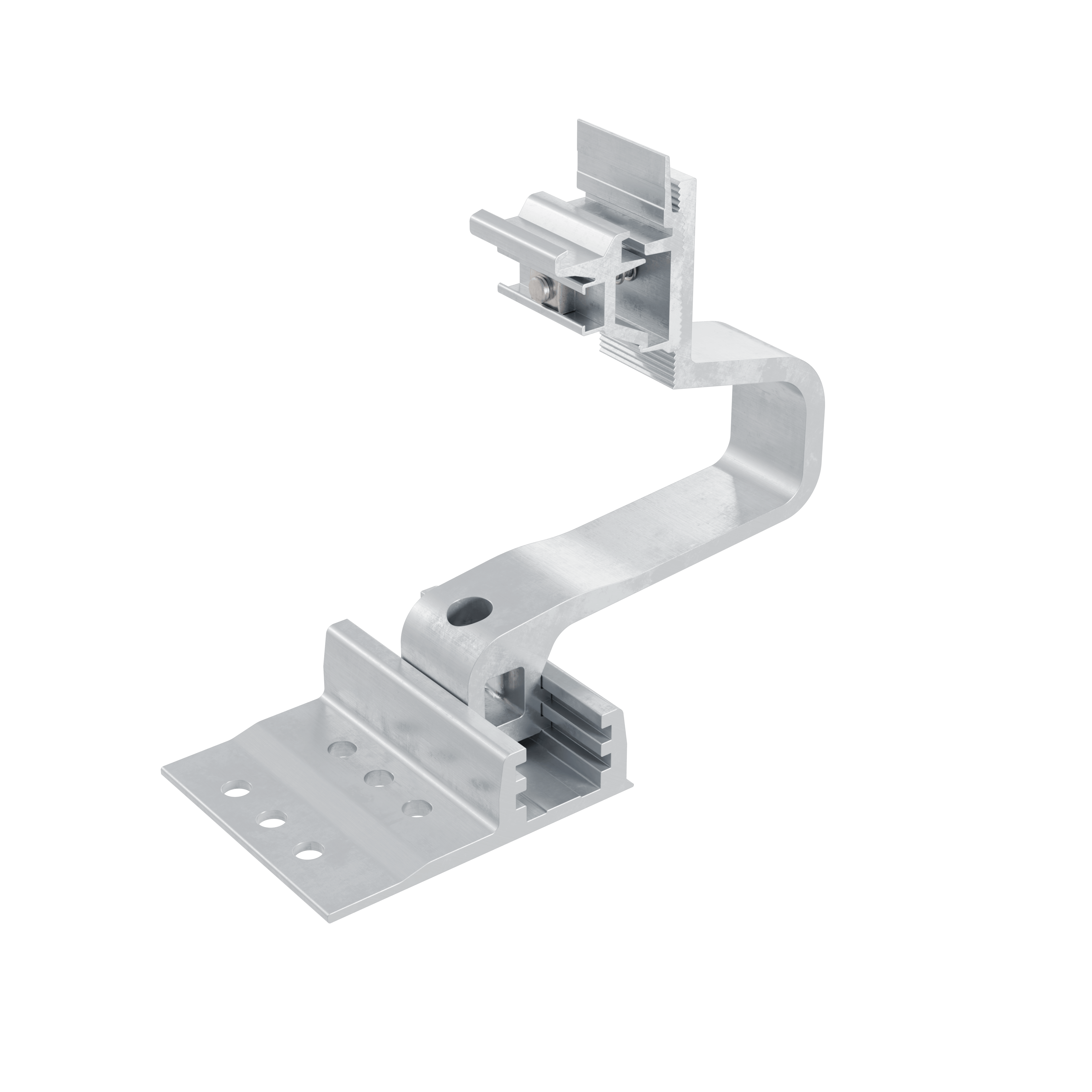

Alumero easyPITCH EF35 Eco roof hook
The EF35 Eco is the flatter version of the EF35: same base plate, same quick-release mechanism, same adjustability – but with a bracket that is 6 mm wide instead of 8.5 mm. The lower bracket takes up less space within the roof tile, significantly reducing the amount of bending required on the roof tile. It is made from EN AW 6005A-T6 aluminium with A2-70 stainless steel screws.
Your benefits
- Bracket only 6 mm thick – noticeably less bending required on the roof tile
- Less material removal means less reworking and time saved per roof
- Adjustable in three ways directly on the roof – adjust height and position without the need for reworking
- Quick-release fitting for mounting rails 37 to 45 – insert, tighten, done
- Fine adjustment in 2.5 mm increments using the Uni shim (803606)
- Universally suitable for standard roof batten and tile thicknesses
- Aluminium EN AW 6005A-T6, stainless steel A2-70 fastenings
Order now
Are you installing on a tiled roof? Order the Alumero easyPITCH EF35 Eco roof hook right here in the Memodo Shop. The required quantity and fixing points are determined by the design.
Application examples
- Roof-mounted systems on tiled roofs of detached and semi-detached houses
- Roofs with uneven battens, where the hook needs to be levelled
- Renovation projects where the roof tiles should remain as undamaged as possible
Technical data
- Roof type: Tiled
- Dimensions (H x W x L): 184 x 211.65 x 93 mm
- Base plate: 111 x 93 mm
- Hole pattern: 6 x Ø 9 mm
- Bracket width: 35 mm
- Bracket thickness: 6 mm
- Adjustability: 3 positions
- Rail mounting: Quick-release mount for 37–45 mounting rail
- Tightening torque for bracket fixing: 15 Nm
- Max. height compensation in the roof batten area: 45–55 mm
- Max. height adjustment in the rail area: 30 mm
- Tile overlap length: up to 95 mm
- Material: EN AW 6005A-T6, fastenings A2-70
- Weight: 0.596 kg
- Sales unit: 20 pieces per box, 320 pieces per Euro pallet
- Product code: 76169990
- Manufacturer’s item number: 802515
-
