Alumero easyPITCH roof hook RSA33

Manufacturer Art. No.:	802512
Art. Nr.:	16364
Pieces per package unit:	20 per carton 320 per pallet
Product type:	Roof hook

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16364

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16364

Tech tip

The RSA33 and RSA40 differ only in the width of the bracket: 33 mm compared with 40 mm. Everything else is the same – base plate 105 x 88 mm, 8 x Ø 9 mm holes, quick-release fitting 37–45, tightening torque 15 Nm, height adjustment 39–51 mm in the roof batten area and 18 mm in the rail area, tile overlap up to 115 mm. Use the narrower 33 mm version if the tile leaves little space for the bracket. Compared to the EF35, this offers greater projection (115 mm instead of 95 mm), but less height adjustment on the rail (18 instead of 30 mm) – you can compensate for uneven battens using the Uni shim (803606) in 2.5 mm increments. From the manufacturer’s diagram: the parts must be connected via at least three teeth.

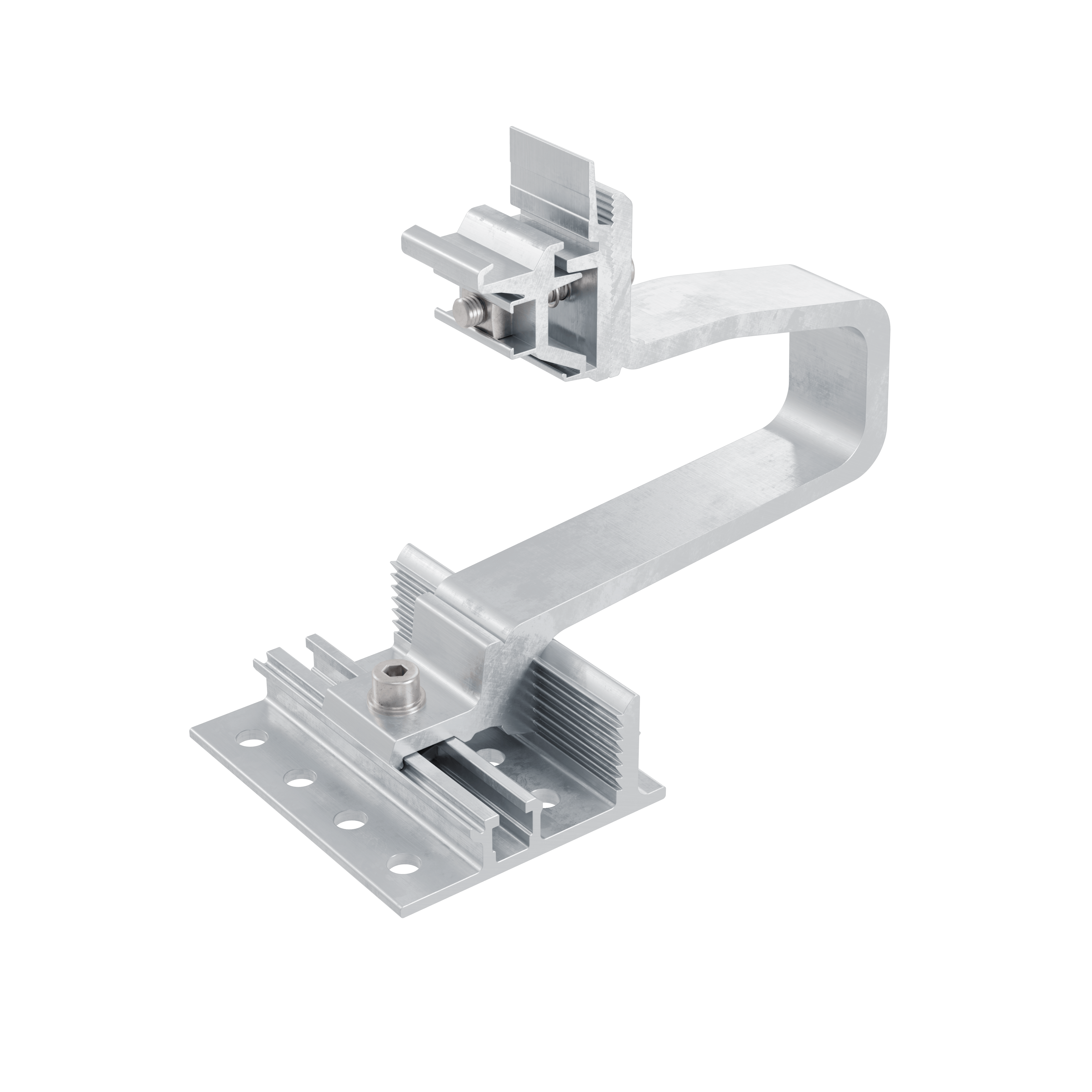

Alumero easyPITCH roof hook RSA33

The RSA33 is the narrower version of the RSA40: it has the same base plate and the same tile overlap length with an overlap of up to 115 mm, but a bracket that is 33 mm wide instead of 40 mm. It is adjustable in three positions and accommodates mounting rails 37 to 45 via a quick-release mechanism.

Your benefits

Narrow bracket (33 mm) – fits where 40 mm brackets won’t fit
Brick overlap length up to 115 mm – for bricks with a long recess
Eight Ø 9 mm drill holes in the base plate – more options for screw fixing
Adjustable in three ways directly on the roof – adjust height and position without the need for reworking
Quick-fit system for mounting rails 37 to 45 – insert, tighten, done
Fine adjustment in 2.5 mm increments using the Uni shim plate (803606)
Aluminium EN AW 6063-T66, 6005A-T6 and 6082-T6, stainless steel A2-70 fastenings

Order now

Are you installing on a tiled roof? Order the Alumero easyPITCH roof hook RSA33 directly here in the Memodo Shop. The required quantity and fixing points are determined by the design.

Application examples

Tile formats with a long overhang and narrow valley
Roof-mounted systems on tiled roofs of detached and semi-detached houses
Roofs with uneven battens, where the hook needs to be levelled

Technical data

Roof type: Tiles
Dimensions (H x W x L): 172.5 x 202.1 x 105 mm
Base plate: 105 x 88 mm
Hole pattern: 8 x Ø 9 mm
Bracket width: 33 mm
Adjustability: 3-position
Rail mounting: Quick-release fitting for 37–45 mounting rail
Tightening torque for bracket fixing: 15 Nm
Max. height adjustment in the roof batten area: 39–51 mm
Max. height adjustment in the rail area: 18 mm
Tile overlap length: up to 115 mm
Material: EN AW 6063-T66, EN AW 6005A-T6, EN AW 6082-T6, screw connections A2-70
Weight: 0.602 kg
Sales unit: 20 pieces per box, 320 pieces per Euro pallet
Product tariff number: 76169990
Manufacturer’s item number: 802512
