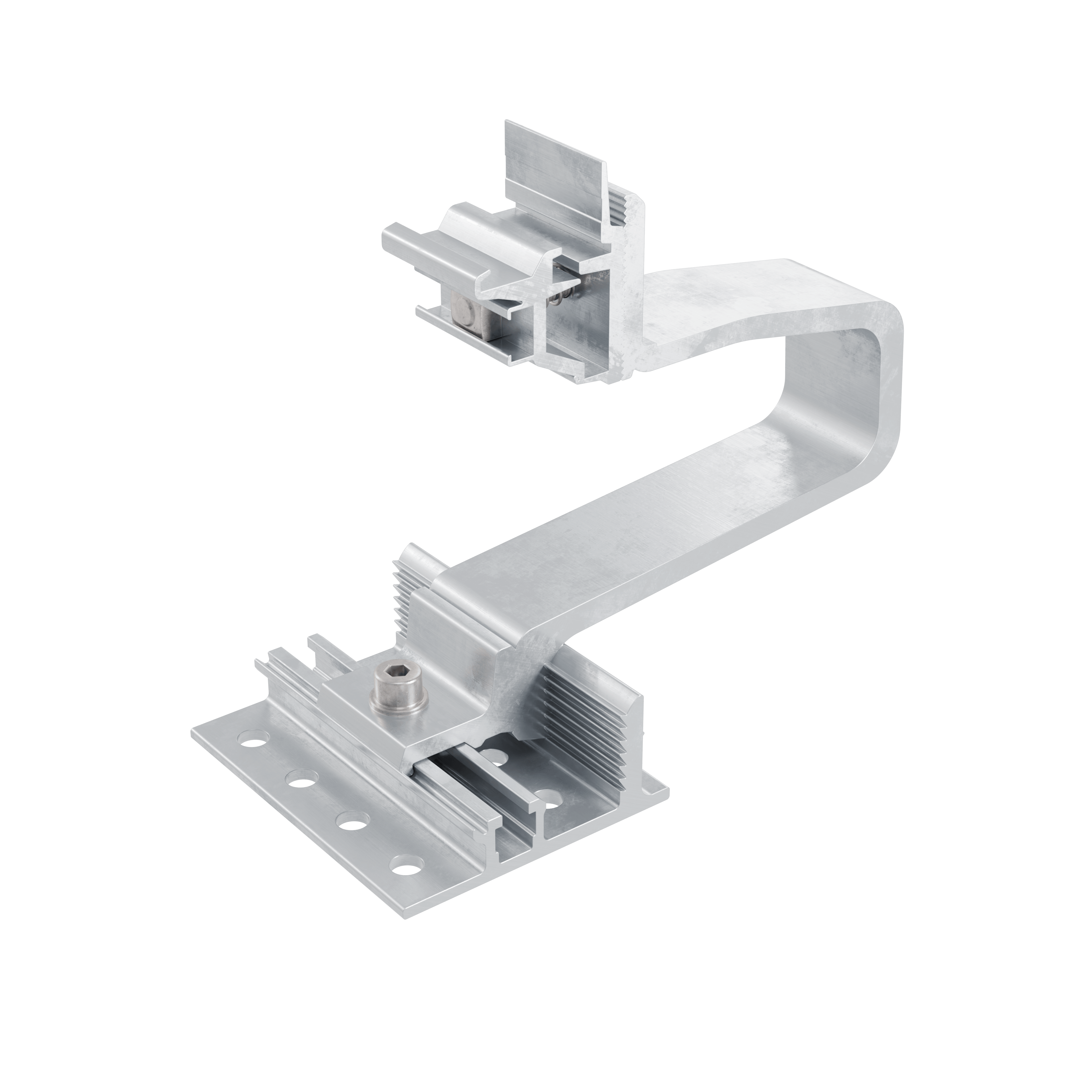

Alumero easyPITCH roof hook RSA40

Manufacturer Art. No.:	802513
Art. Nr.:	16363
Pieces per package unit:	20 per carton 320 per pallet
Product type:	Roof hook

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16363

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16363

Tech tip

The RSA40 is not the better hook, but a different one: it grips deeper beneath the tile and covers up to 115 mm, compared with 95 mm for the EF35. However, the height adjustment range is smaller – 39 to 51 mm in the roof batten area and only 18 mm in the rail area, compared to 30 mm for the EF35. You should therefore check both before ordering: the insertion length of the tile and the required height adjustment. If the adjustment on the hook is insufficient, add shims using the Uni shim plate (803606) in 2.5 mm increments. Tightening torque for the bracket fixing: 15 Nm. A note from the manufacturer’s drawing that is easy to overlook: the parts must be connected via at least three teeth.

Alumero easyPITCH RSA40 roof hook

The RSA40 is the alternative to the EF35 for roofs with a long tile overhang: it extends deeper beneath the tiles and covers up to 115 mm. It too is adjustable in three directions and accommodates mounting rail 37 to 45 via a quick-release mechanism. The bracket is 40 mm wide; the base plate measures 105 x 88 mm and is secured with screws through eight 9 mm diameter holes.

Your benefits

Brick overlap length up to 115 mm – for bricks with a long recess
Eight Ø 9 mm holes in the base plate – offering more options for screw fixing
Adjustable in three ways directly on the roof – adjust height and position without any further work
Quick-release fitting for mounting rails 37 to 45 – insert, tighten, done
Fine adjustment in 2.5 mm increments using the Uni shim plate (803606)
Aluminium EN AW 6063-T66, 6005A-T6 and 6082-T6; stainless steel A2-70 fastenings

Order now

Are you installing on a tiled roof? Order the Alumero easyPITCH RSA40 roof hook directly here in the Memodo Shop. The required quantity and fixing points are determined by the design.

Examples of use

Tile formats with a long overhang, where a standard hook is too short
Roof-mounted systems on tiled roofs of detached and semi-detached houses
Roofs with uneven battens, where the hook needs to be levelled

Technical data

Roof type: Tiles
Dimensions (H x W x L): 172.5 x 202.1 x 105 mm
Base plate: 105 x 88 mm
Hole pattern: 8 x Ø 9 mm
Bracket width: 40 mm
Adjustability: 3-position
Rail mounting: Quick-release mount for 37–45 mounting rail
Tightening torque for bracket fastening: 15 Nm
Max. height adjustment in the roof batten area: 39–51 mm
Max. height adjustment in the rail area: 18 mm
Tile overlap length: up to 115 mm
Material: EN AW 6063-T66, EN AW 6005A-T6, EN AW 6082-T6, A2-70 fasteners
Weight: 0.663 kg
Sales unit: 20 pieces per box, 320 pieces per Euro pallet
Product code: 76169990
Manufacturer’s item number: 802513
