Alumero roof hook ALS 13, 3-way adjustable

Alumero

Manufacturer Art. No.:	802416
Art. Nr.:	1507
Pieces per package unit:	20 per carton 320 per pallet
Type of roof:	Pan tile

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 1507

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 1507

Recommended accessories
- K2 roundheaded wood construction screw VA 8 x 120

  Art. Nr.: 8274

  K2 Systems

  Available from stock

  { "id": "58abf183c8a8550a8c3fb0d538c198ad", "item_brand": "", "item_name": "K2 roundheaded wood construction screw VA 8 x 120", "item_id": "8274", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "50", "shopware_id": "58abf183c8a8550a8c3fb0d538c198ad" } }
- K2 roundheaded wood construction screw VA 8 x 100

  Art. Nr.: 8273

  K2 Systems

  Available from stock

  { "id": "a8151bb555ee554598002be76cdb80ec", "item_brand": "", "item_name": "K2 roundheaded wood construction screw VA 8 x 100", "item_id": "8273", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "50", "shopware_id": "a8151bb555ee554598002be76cdb80ec" } }
- Pan head screw V2A with Torx, 8 x 120mm

  Art. Nr.: 527

  Praetner

  Available from stock

  { "id": "9c12989a93e058ea8f4b0b5c5279e385", "item_brand": "", "item_name": "Pan head screw V2A with Torx, 8 x 120mm", "item_id": "527", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "50", "shopware_id": "9c12989a93e058ea8f4b0b5c5279e385" } }
Tech tip

Adjustment on the roof hook – Support rail on the roof hook – Panel clamp on the support rail – Alumero requires only a single tool for all of these mounting points: an Allen key size 6 – ideally with T-handle.

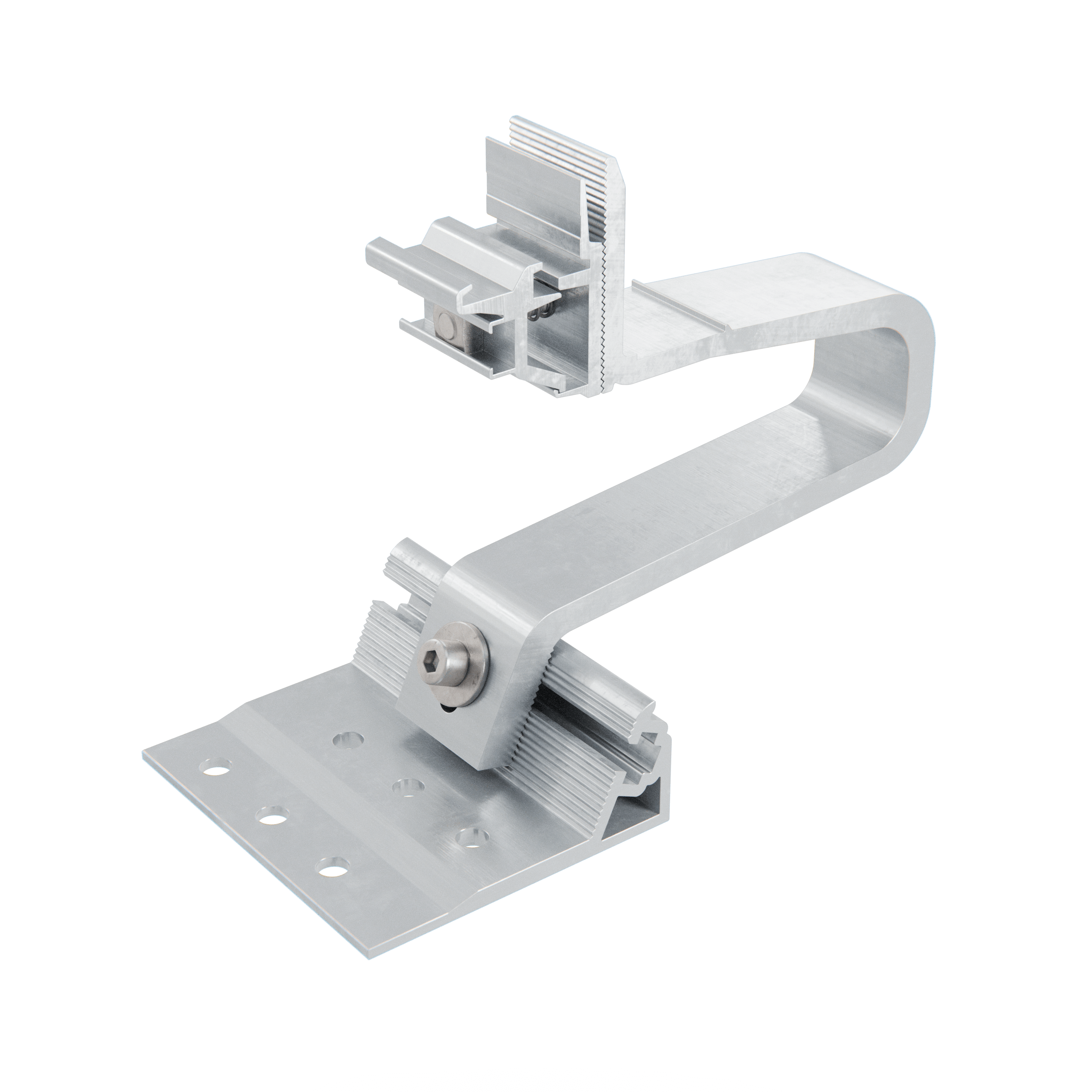

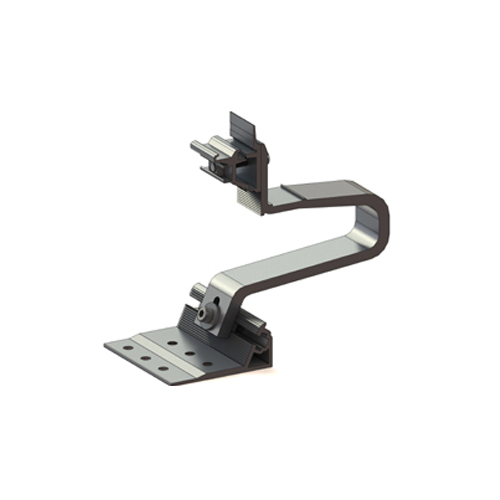

Strong and safe – the Alumero roof hook ALS 13

The aluminum roof hook AL 13 from Alumero has the same static properties as a stainless steel bracket with 35 x 8 mm. However, the 3-fold adjustability makes it much more flexible and practical.

Product features:

Stable extruded aluminum
Material: Aluminum and stainless steel V2A
3-way adjustable (2 x on base and 1 x on quick mount)
In the roof batten area (OK rafters – OK tiles) adjustable from 42 to 54 mm
Via quick mounting adapter max. 22 mm height offset
Dimensions base plate: 100 x 115 x 42 mm
Drilled hole: 6 x ø9 m

Alumero and Memodo require static planning and approval with the Alumero SolarProTool in order to obtain the warranty and guarantee. We will be happy to assist you with this. You will find the data entry form, which is helpful for data entry, further down on this page. Please send it back to us with all data for the preparation of an offer.
