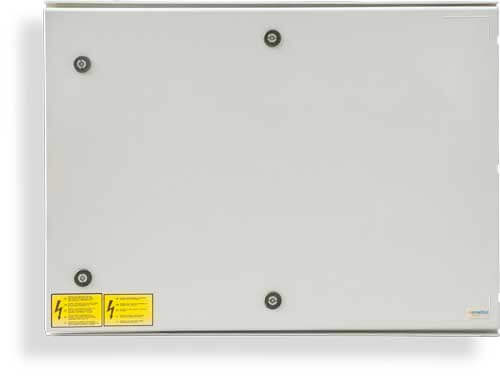

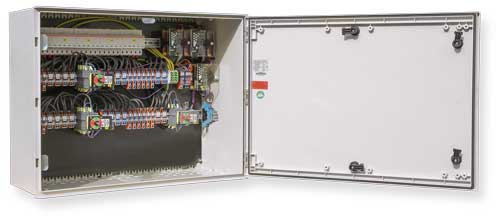

enwitec overvoltage protection type I+II for 10 MPP with fire protection circuit breaker

Type of manufacturer: Santon-1000-10x2R-T50-BC-PES-1.1
Manufacturer Art. No.: 10014856
Art. Nr.: 7290
Pieces per package unit:
  • 1 per carton
Accessory type: Overvoltage protection
WEEE-Number:
  • DE71566755
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 7290
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 7290
Description

enwitec fire protection circuit breaker with integrated overvoltage protection type I+II for 10 MPPT

An additional remote control unit is always required.

You create the enwitec fire protection system with a generator connection box on the roof (with integrated overvoltage protection), a remote control unit and ideally an E-Stop Switch. The E-Stop Switch is the red emergency stop switch and switches off the PV system. The indicator lights show you whether the system is currently in operation or switched off. You can find a detailed functional description in the downloads.

Product advantages

  • Automatic switch-off in the event of a power failure
  • Automatic restart when power is restored
  • With overvoltage protection type I+II
  • Ideally with additional emergency stop switch

Product features enwitec fire protection circuit breaker

  • Number of MPP inputs: 10
  • PV strings per MPP input: 2
  • Design current per string: 15 A
  • Maximum voltage value: 1,000 V
  • Overvoltage protection: Type I+II
  • Wire end ferrules are required to connect the strings
  • Dimensions (WxHxD): 800 x 600 x 300 mm
  • Protection cateogry: IP 65
