Fronius Symo Advanced 10.0-3-M

Manufacturer Art. No.: 4,210,159
Art. Nr.: 9291
Pieces per package unit:
  • per carton
  • per pallet
AC power: 10 kW
Communication: LAN, WLAN, S0-Zähler, 2x RS422, RS485
Inverter type: PV inverter
MPP-Tracker: 2
MPP voltage range: 270 - 800 Volt
Phases: 3
Warranty: 2 years
WEEE-Number:
  • DE39936572
Prices are only visible to business customers upon successful registration.
  • % Clean Deals
Available from stock
Product number: 9291
Prices are only visible to business customers upon successful registration.
  • % Clean Deals
Available from stock
Product number: 9291
  • Tech tip

    The arc protection function AFCI can be activated individually using the display on the inverter. See the video "Fronius Symo Advanced – Activating the AFCI" to learn how to do this.

Description

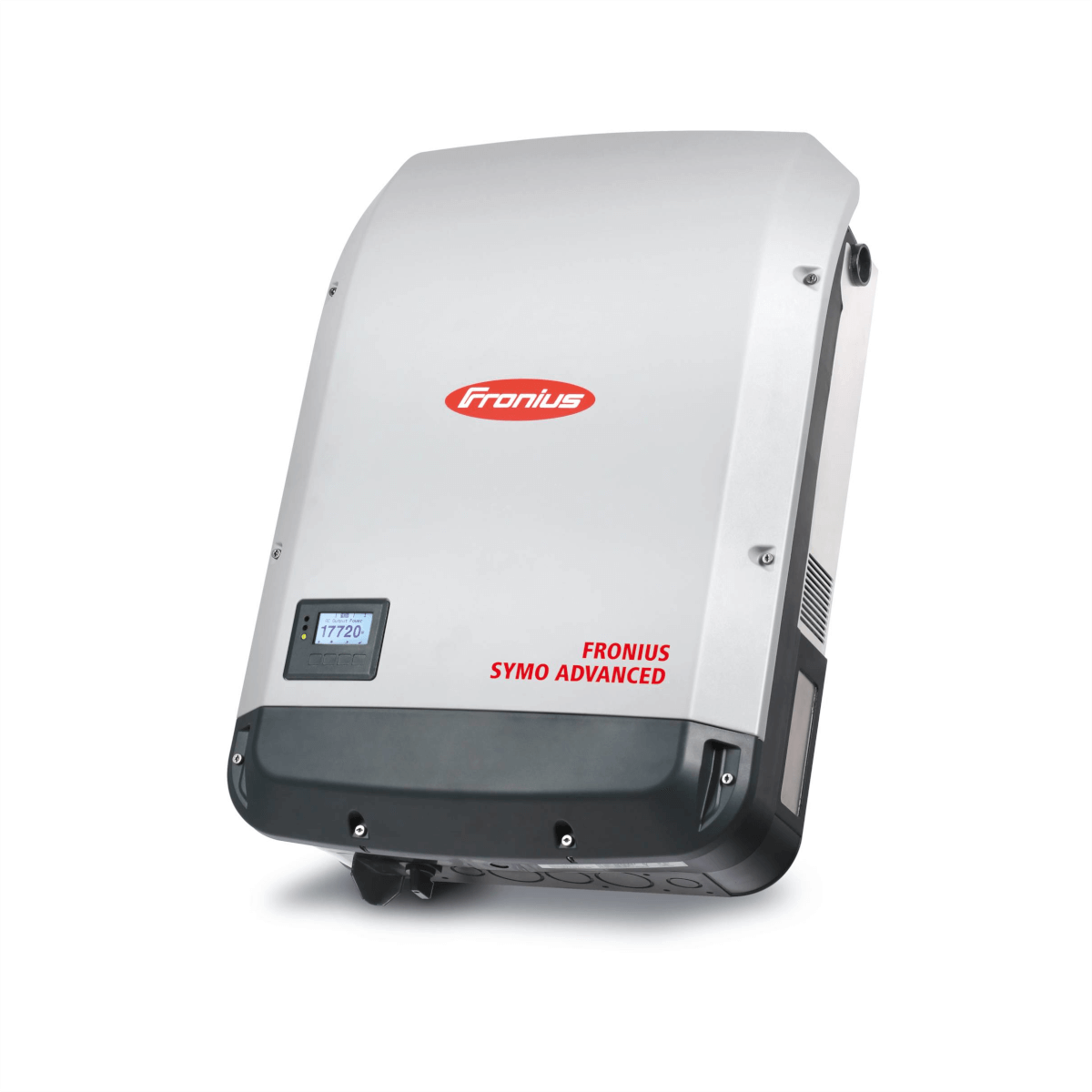

Fronius Symo Advanced 10.0-3-M 3-phase photovoltaic inverter with AFCI function

The Fronius Symo Advanced Series 10-20 kW replaces the Fronius Symo Series 10-20 kW.

As of January 1, 2023, buying a warranty extension will only be possible directly via the Fronius Solarweb webshop.

Fronius launches the Symo Advanced series, a 3-phase PV inverter with 10-20 kW. The arc-fault protection function (AFCI) is integrated into the inverter. This function detects DC arcs at an early stage and proactively reduces the risk of fire. Furthermore, the DC end can be oversized by up to 150%. Up to 3 strings each can be integrated via two individually configurable MPPT.

Product advantages

  • Integrated arc fault circuit interrupter (AFCI) function
  • Connection of the ripple control receiver directly to the inverter
  • Potential-free contact for control of further consumers available
  • Integrated shade management
  • Integrated DIN rail for optional DC overvoltage protection type 2 or DC overvoltage protection type 1+2 in the inverter
  • Free warranty extension to 10 years with online registration

Product features Fronius Symo Advanced 10.0-3-M

  • Mains connection: 3-phase
  • AC power: 10.0 kVA
  • MPP tracker: 2
  • String connections per MPPT: 3
  • Communications: integrated data logger with web server, 2 x RS422, LAN, Wi-Fi, RS485, 4 x dig. IN/OUT, 6 x dig. IN (FRE)
  • Protection category: IP 66
  • Dimensions: 725 x 510 x 225 mm (H x W x D)
  • Weight: 35.4 kg
  • Warranty: 2 years (extension to 10 years with online registration)
Videos
Videos
  • Fronius Symo Advanced 10-20 kW Webinar
    The YouTube video has been blocked due to the cookie settings.
  • Fronius Symo Advanced - Activation of the AFCI
    The YouTube video has been blocked due to the cookie settings.
